Домофони
Блок живлення 24В DC 300мА

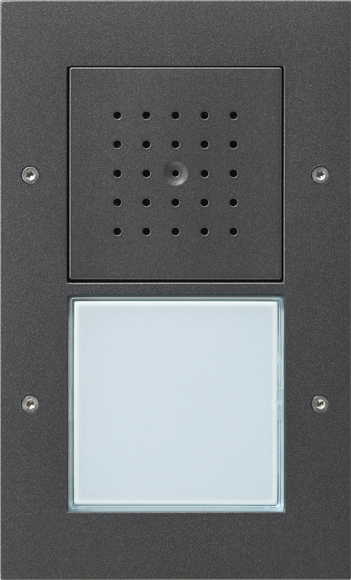

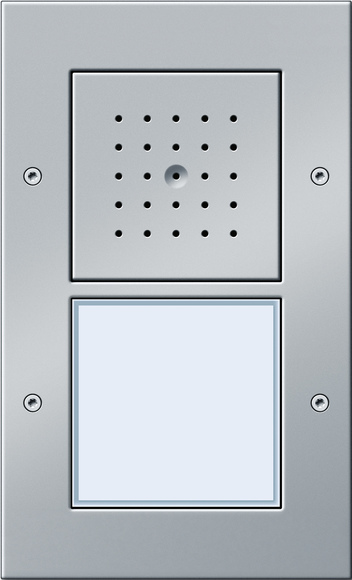

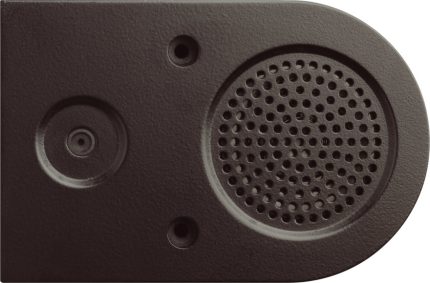

Вбудований гучномовець
Built-in speaker - Built-in loudspeaker for mounting in letterbox systems, voice compartments, door-side installations or front panels. - Up to eight mechanical bell buttons can be connected to the screw terminals provided. - Signal transmission and power supply of loudspeaker via reverse-polarity-protected and short-circuit-proof 2-wire bus. - Compact size. - Weather-resistant loudspeaker. - High-quality electret microphone. - Alternating current polling of the bell button connections to prevent oxidation on the button contacts. - Securing of connection terminals against incorrect connection. - Up to eight mechanical bell buttons can be connected. - Colour camera for door station can be connected. - Hands-free feature (voice-controlled talk-back with echo and background noise suppression). - Voice volume adjustable. - One-man commissioning with simple commissioning procedure. - Acknowledgement tone when call button is pressed. This component enables door communication systems with up to 140 audio devices to be set up (e.g. 1 x built-in speaker, 11 x add-on modules for built-in speakers, 136 x surface-mounted home stations). The video control device is required if the system is expanded with a colour camera. Protection type IP44 only in combination with a suitable front or when installed.

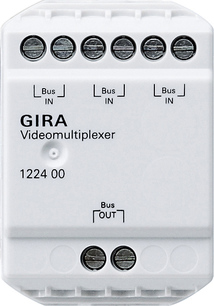

Відеомультиплексор
Video multiplexer - The video multiplexer bundles the video signals of door stations, DCS-camera gateways, and DCS-IP gateways.
- A video multiplexer can merge the video signals from three door stations with colour cameras. Using two video multiplexers, the video signals from up to 5 door stations can be merged.
The combination housing makes three mounting types possible:
- Surface-mounted (in a standard junction box).
- Flush-mounted (in a device box).
- As a DRA device (using the DRA adapter enclosed). No further configuration is necessary during commissioning because the video multiplexer automatically adapts to the existing mains supply. A DRA adapter is included.

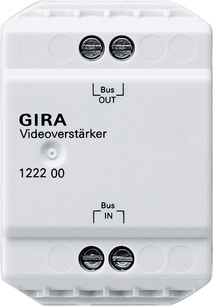

Відеопідсилювач
Video amplifier - The video amplifier is used to extend the range of Gira door communication systems to include video function. - It increases the volume of the incoming video signal to the maximum permissible bus volume and outputs it at the output. thereby compensating for the line attenuation from the source of the video signal to the input of the video amplifier. The combination housing makes three mounting types possible: - Surface-mounted (in a standard junction box). - Flush-mounted (in a device box). - As a DRA device (using the DRA adapter enclosed). The video amplifier allows the maximum cable length between the door and home station to be extended from 100 m to 300 m. No further configuration is necessary during commissioning because the video amplifier automatically adapts to the existing mains supply. A DRA adapter is included.

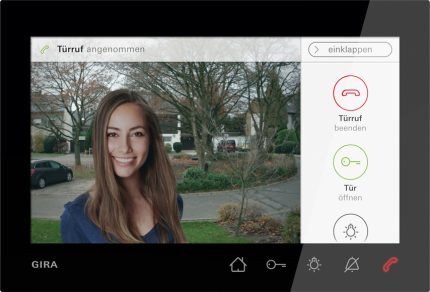

Відеостанція квартирна накладного монтажу, діагональ 7″ ,чорна
Surface-mounted video home station 7 black matt (lacquered) - Fully pre-assembled unit including a 17.78 cm (7") TFT colour display and convenient speakerphone function. - Full-surface glass front with touch functionality. - Direct wall mounting or wall mounting with flush-mounted device box or cavity wall box. - Mounting with base foot for placement on items of furniture.

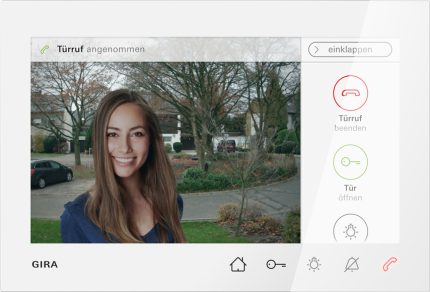

Відеостанція квартирна накладного монтажу, діагональ 7″, білий глянцевий
Surface-mounted video home station 7 pure white glossy - Fully pre-assembled unit including a 17.78 cm (7") TFT colour display and convenient speakerphone function. - Full-surface glass front with touch functionality. - Direct wall mounting or wall mounting with flush-mounted device box or cavity wall box. - Mounting with base foot for placement on items of furniture.
