Механізми

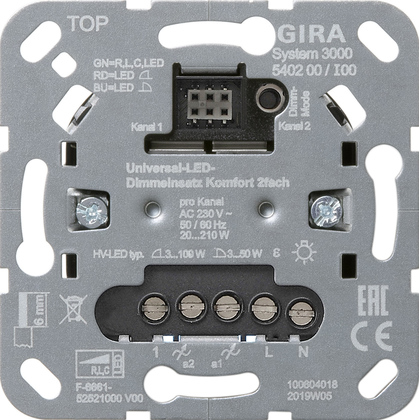

Світлорегулятор універсальний LED 2-м Komfort S3000, вставка
System 3000 universal LED dimming insert Komfort, 2-gang - Two independent outputs for two light groups. - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Connecting auxiliary units is possible. - Both outputs can be operated separately with a System 3000 3-wire auxiliary insert in combination with a System 3000 operating top unit 2-gang. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Dimming behaviour and dimming characteristics can be set, soft-on and soft-off function, fading function, staircase light function with switch-off pre-warning, scene function (16 scenes), disable function, time delays.Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.

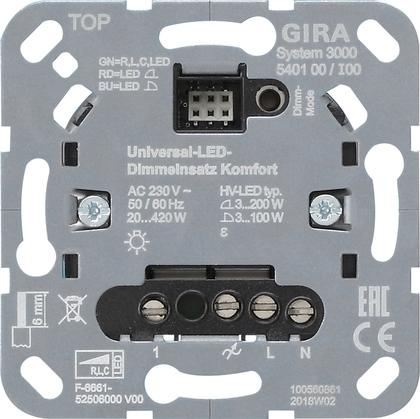

Світлорегулятор універсальний LED Komfort S3000, вставка
System 3000 universal LED dimming insert Komfort - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Connecting auxiliary units is possible. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Hotel card function can be activated: Light switches “On” following power interruption (from index level 02). - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Dimming actuator, 1-gang. - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Dimming behaviour and dimming characteristics can be set, soft-on and soft-off function, fading function, staircase light function with switch-off pre-warning, scene function (16 scenes), disable function, time delays.Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.

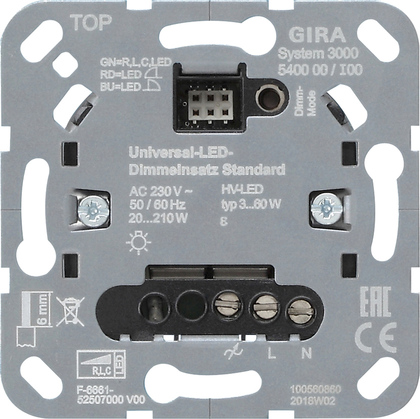

Світлорегулятор універсальний LED Standard S3000, вставка
System 3000 universal LED dimming insert Standard - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Dimming actuator, 1-gang. - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Adjustable dimming behaviour and dimming characteristic, soft on and soft off function, fading function, staircase function with switch-off pre-warning, scene function (16 scenes), blocking function, time delays. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.
Термостат 24В з вимикачем і контр. лампою, вставка
Room temperature controller insert 24 V~ with NC or NO contact, 1-way switch and control light - Control of electrothermal servos for 24 V~. - Control of room temperature in closed rooms. - Manual switch-off of temperature control. - Input terminal for activating the cooling temperature (ECO) with the master clock. - Input terminal for activating cooling mode with central control. - Internal temperature sensor. - Frost protection function. - Silent switching. - Temperature drop detection (calls up the frost protection temperature when the window is opened). - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Adaptation to valves (normally open or normally closed). - Offset setting (correction value for the measured temperature). - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).
Термостат з вимикачем і контр. лампою, вставка
Room temperature controller insert 230 V~ with NC or NO contact, 1-way switch and control light - Control of electrothermal servos for 230 V~. - Control of room temperature in closed rooms. - Manual switch-off of temperature control. - Input terminal for activating the cooling temperature (ECO) with the master clock. - Input terminal for activating cooling mode with central control. - Internal temperature sensor. - Frost protection function. - Silent switching. - Temperature drop detection (calls up the frost protection temperature when the window is opened). - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Adaptation to valves (normally open or normally closed). - Offset setting (correction value for the measured temperature). - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).

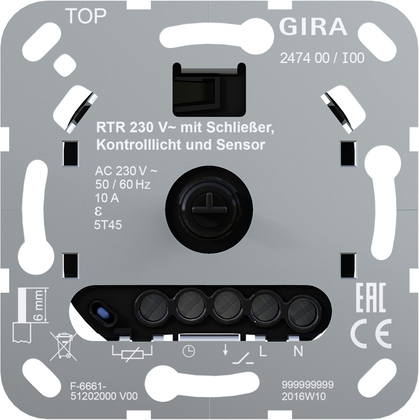

Термостат з замикаючим контактом, контр. лампою і ДТП, вставка
Room temperature controller insert, 230 V~/10 A with NO contact, control light and sensor for electric floor heating - Electronic temperature controller for controlling electric floor heatings or floor temperature control systems. - Control of the floor temperature in closed rooms. - Switching off the floor temperature control manually. - Input terminal for activating the cooling temperature (ECO) with the master clock. - External temperature sensor (remote sensor). - Frost protection function. - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Heating interruption for 5 minutes after one hour of continuous heating. - Setting range of the room temperature can be limited with setting rings. Install remote sensor in empty pipe in the floor. The supply cable to the remote sensor can be extended to 50 m with a two-wire cable (2 x 1.5 mm²). A remote sensor in the plastic cap is included in the scope of delivery.

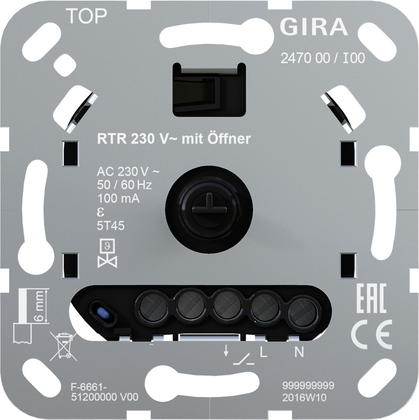

Термостат з розмикаючим контактом, вставка
Room temperature controller insert 230 V~ with NC contact - Control of electrothermal servos for 230 V~. - Control of room temperature in closed rooms. - Internal temperature sensor. - Silent switching. - Output signal: Pulse width modulation (PWM). - For “normally closed” valve type. - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).
Универсальний світлорегулятор LED Mini S3000
System 3000 universal LED dimmer Mini - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Operation via auxiliary units. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. The switch-on brightness cannot be saved using a button. The installation adapter mini housing is used for installation in false ceilings{b}5429 00{b}. If the ambient temperature is higher than 25 °C, the connected load must be reduced.
