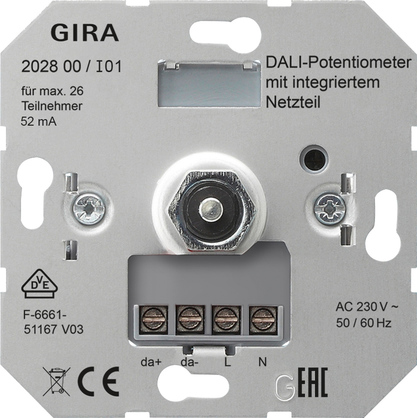

Світлорегулятор DALI Tunable White з вбудованим блоком живлення
DALI potentiometer Tunable White with integrated power supply unit - Switching and brightness adjustment for lights with a DALI interface. - Adjustment of the colour temperature for lights with a DALI device type 8 (colour type: colour temperature) for Tunable White in accordance with IEC 62386-209 - Integrated power supply in accordance with the DALI specifications (DIN IEC 60926) for 26 DALI devices. - Parallel connection of up to 4 DALI potentiometers with integrated power supply unit to supply up to 104 DALI devices. - Can be operated simultaneously from several control points. Communication is via Broadcast. - Colour temperature limits and a basic brightness or a switch-on brightness can be stored. When selecting the DALI power supply, the number of DALI devices and the DALI potentiometer (always counts as 1 device) must be factored in.

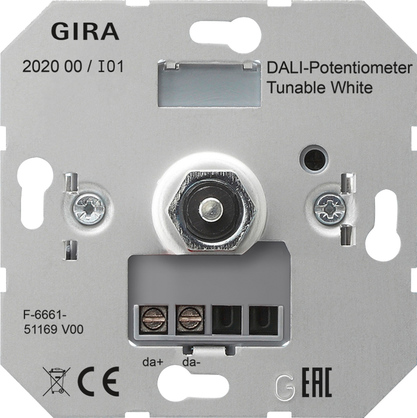

Світлорегулятор DALI Tunable White, вставка
DALI potentiometer Tunable White - Switching and brightness adjustment for lights with a DALI interface. - Adjustment of the colour temperature for lights with a DALI device type 8 (colour type: colour temperature) for Tunable White in accordance with IEC 62386-209 - To generate the DALI voltage, a DALI power supply or a DALI potentiometer with an integrated power supply unit that conforms to the DALI specifications (DIN IEC 60926) is required. - Can be operated simultaneously from several control points. Communication is via Broadcast. - Colour temperature limits and a basic brightness or a switch-on brightness can be stored. When selecting the DALI power supply, the number of DALI devices and the DALI potentiometer (always counts as 1 device) must be factored in.
Світлорегулятор DALI з вбудованим блоком живлення
DALI potentiometer with integrated power supply unit - Switching and brightness adjustment for lights with a DALI interface. - Integrated power supply in accordance with the DALI specifications (DIN IEC 60926) for 26 DALI devices. - Parallel connection of up to 4 DALI potentiometers with integrated power supply unit to supply up to 104 DALI devices. - Can be operated simultaneously from several control points. Communication is via Broadcast. - A basic brightness or a switch-on brightness can be stored. When selecting the DALI power supply, the number of DALI devices and the DALI potentiometer (always counts as 1 device) must be factored in.
Світлорегулятор універсальний LED 2-м Komfort S3000, вставка
System 3000 universal LED dimming insert Komfort, 2-gang - Two independent outputs for two light groups. - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Connecting auxiliary units is possible. - Both outputs can be operated separately with a System 3000 3-wire auxiliary insert in combination with a System 3000 operating top unit 2-gang. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Dimming behaviour and dimming characteristics can be set, soft-on and soft-off function, fading function, staircase light function with switch-off pre-warning, scene function (16 scenes), disable function, time delays.Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.
Світлорегулятор універсальний LED Komfort S3000, вставка
System 3000 universal LED dimming insert Komfort - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Connecting auxiliary units is possible. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Hotel card function can be activated: Light switches “On” following power interruption (from index level 02). - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Dimming actuator, 1-gang. - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Dimming behaviour and dimming characteristics can be set, soft-on and soft-off function, fading function, staircase light function with switch-off pre-warning, scene function (16 scenes), disable function, time delays.Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.
Світлорегулятор універсальний LED Standard S3000, вставка
System 3000 universal LED dimming insert Standard - Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lights, dimmable inductive transformers for halogen or LED lights, HV LED or compact fluorescent lamps. - Automatic or manual setting of dimming principle according to load (leading or trailing edge). - Display of the selected operating mode using LED. - Switch-on function that preserves the life of the lamp. - Switch-on brightness can be saved permanently. - Switch on with the last brightness set, or a saved switch-on brightness. - Minimum brightness can be set. - Electronic short-circuit protection. - Electronic excess-temperature protection. - Operation with or without a neutral conductor connection. - Pushbutton dimmer. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Dimming actuator, 1-gang. - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b}Adjustable dimming behaviour and dimming characteristic, soft on and soft off function, fading function, staircase function with switch-off pre-warning, scene function (16 scenes), blocking function, time delays. In principle, it is possible to operate the dimmer without connecting the neutral conductor, but some LED and CFLi light sources make the neutral conductor connection necessary to avoid flickering. Operation without a neutral conductor increases the minimum load for light bulbs, HV halogen lamps, Tronic transformers and wound transformers to 50 W. Electronic transformers and ballast devices for LED lamps can be operated with the dimming procedure specified by the manufacturer. If the ambient temperature is higher than 25 °C, the connected load must be reduced.
Секція 1-кл для виклику TX_44
Call button, 1 gang for door station - The door station can be expanded with an additional call button (up to 14 call button inserts, 1- or 3-gang can be connected to one door station). - Call-button illumination with LED technology, light colour white. Even, clearly visible call button illumination is achieved via maintenance-free, energy-saving LED technology. - Sprayed-water proof call-button cover plate made of shock-resistant plastic. - Name plate can be replaced without tools and without removing the frame. - Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}or the Gira inscription software.
Секція 3-кл для виклику TX_44
Call button, 3 gang for door station - The door station can be expanded with additional call buttons (up to 14 call button inserts, 1- or 3-gang can be connected to one door station). - Call-button illumination with LED technology, light colour white. Even, clearly visible call button illumination is achieved via maintenance-free, energy-saving LED technology. - Sprayed-water proof call-button cover plate made of shock-resistant plastic. - Name plate can be replaced without tools and without removing the frame. - Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}or the Gira inscription software. Call buttons which are not required can be covered with the call-button cover plate for call button, 3-gang.
Сигнальний світильник LED
LED signal light 230 V~ red / green - The signal light can be used for simple signalling for treatment rooms, conference rooms, and hotel rooms, for example. - The full insert surface of 55 x 55 mm is evenly illuminated, divided into the upper half for the colour red, and the lower half for the colour green. - Both halves can be activated separately, e.g. by using a series switch. Two inscription labels "Bitte warten" / "Bitte eintreten" and "Do not disturb" / "Make up room" are included.
Стійка світлова 491 мм, алюміній
Light profile height 491 mm colour aluminium - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.
Стійка світлова 491 мм, антрацит
Light profile height 491 mm anthracite - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.
