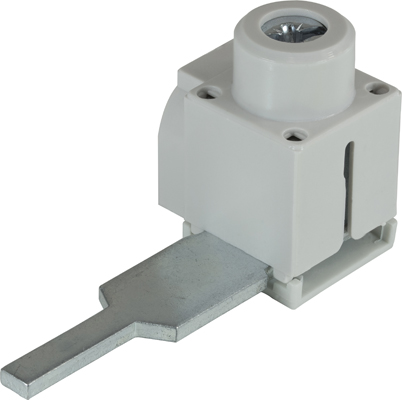

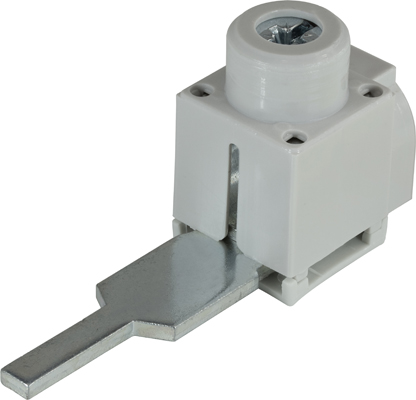

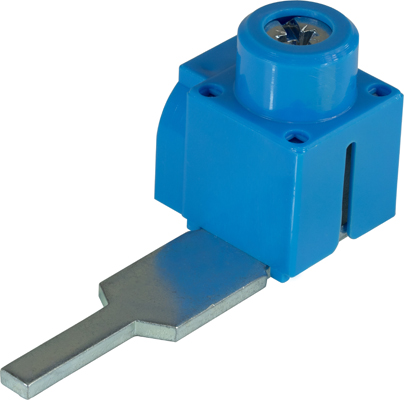

Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

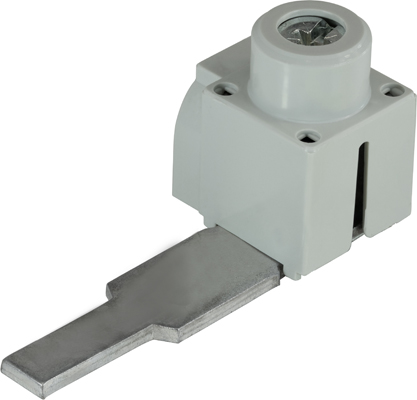

Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

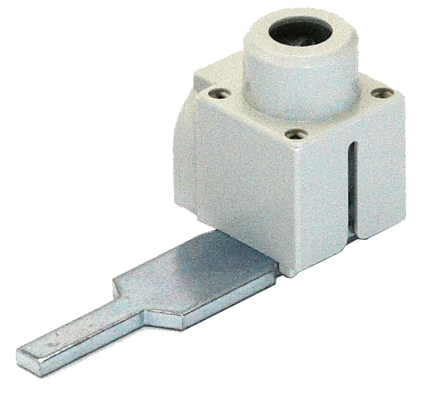

The feed-in blocks from FTG can be arranged in rows and designed for fork and bar versions. The terminal can be fed directly to the phase rail. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm connection screw: PZ2, eng

The cable is 125mm long and the cable ends have fork lugs M6. A cross section of 6 square millimeters can be connected. The black material is H07V-K., eng
