2889U Cable connection 10sqmm 260mm black ultrasonically welded ends
2889U-B Cable connection 10sqmm 260mm blue ultrasonically welded ends
2890 Cable connection 10sqmm 325mm blue sleeves
2890U Cable connection 10sqmm 325mm blue ultrasonically welded ends
2891 Cable connection 10sqmm 325mm yellow-green with sleeves
2891U Cable connection 10sqmm 325mm yellow-green ultrasonically welded ends
802-080 Feed-in terminal UL508, isolated, pin up to 50sqmm 115A without corrugation
802-114 Feed-in terminal fork 11x15mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

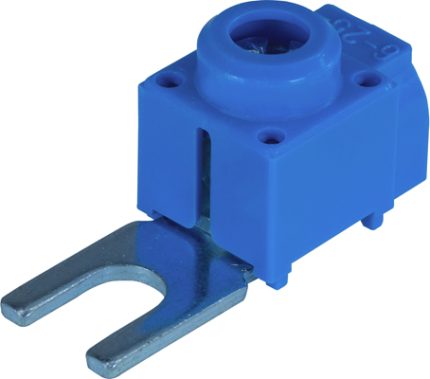

802-114-BLAU Feed-in terminal fork 11x15mm up to 25sqmm blue 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

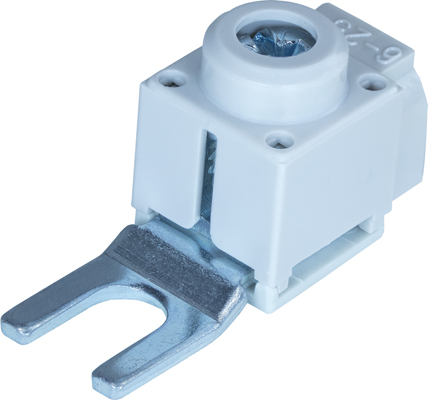

802-114I Feed-in terminal fork 11x15mm up to 25sqmm grey isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

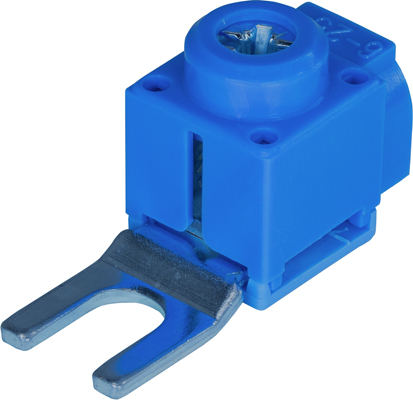

802-114I-BLAU Feed-in terminal fork 11x15mm up to 25sqmm blue isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

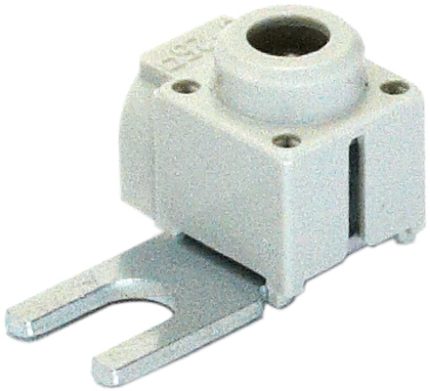

802-114Q Feed-in terminal fork 11x15mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
