02100201 GTi 2 VS-KT-t
Код товара: 85682
Ціна за запитом
Distribution board, Type of protection IP65, 14 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|

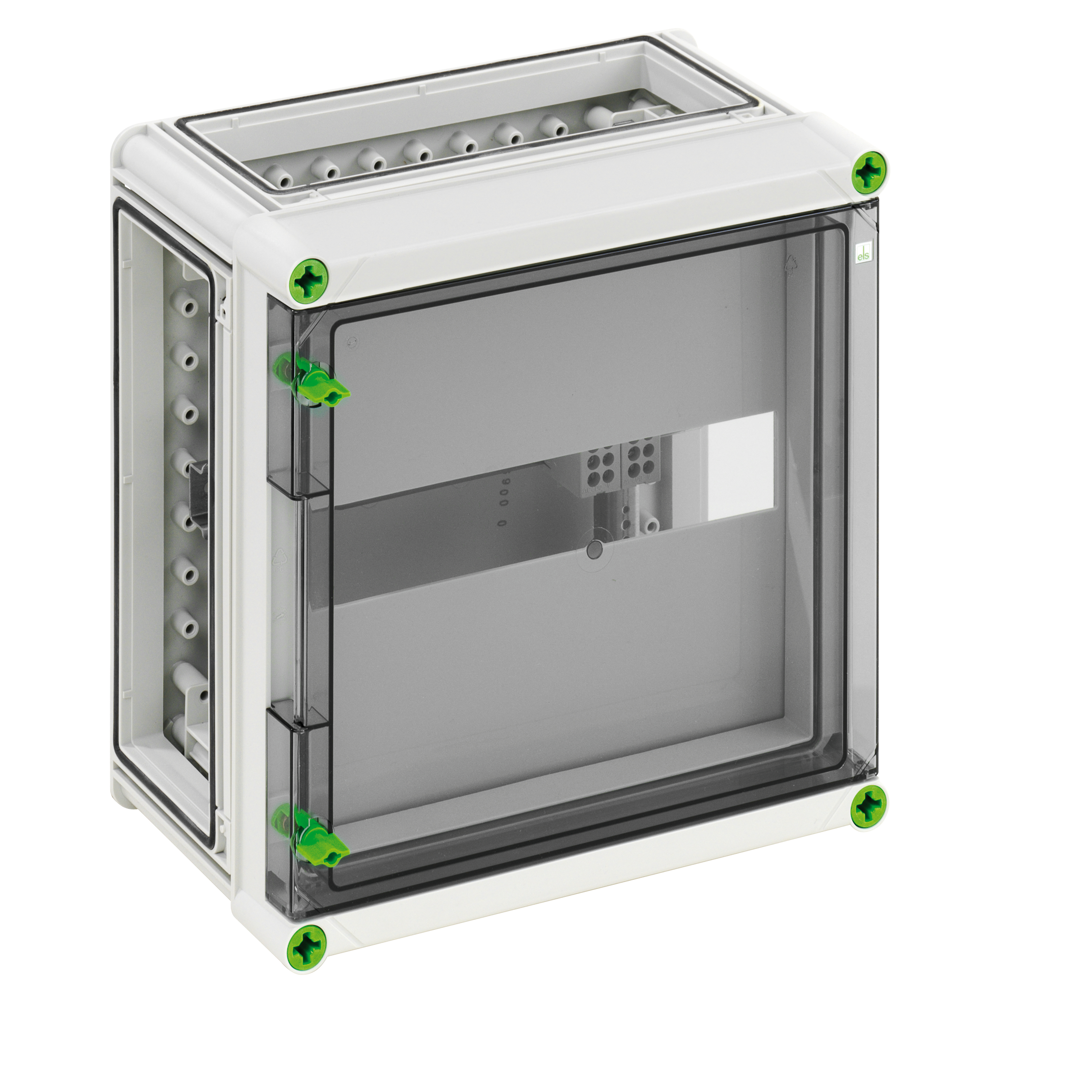

Module enclosure-Industrial Quality -, 1-row, standard version sealable, with 35mm standard rails for installing a selective main switch, incl. 2 single pole HA terminals 25/16mm² for N and PE, masking and labelling strips, 3 x enclosure connectors (GGV), with transparent hinged door
Dimensions: 320 x 320 x 179mm
International product number (GTIN): 4013902902842
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 02100201
Manufacturer type description: GTi 2 VS-KT-t
Ключові слова: Installationskleinverteiler, Distribution board, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000214
