30210101 Rapid-Box 50² 2×5
Код товара: 88602
Ціна за запитом

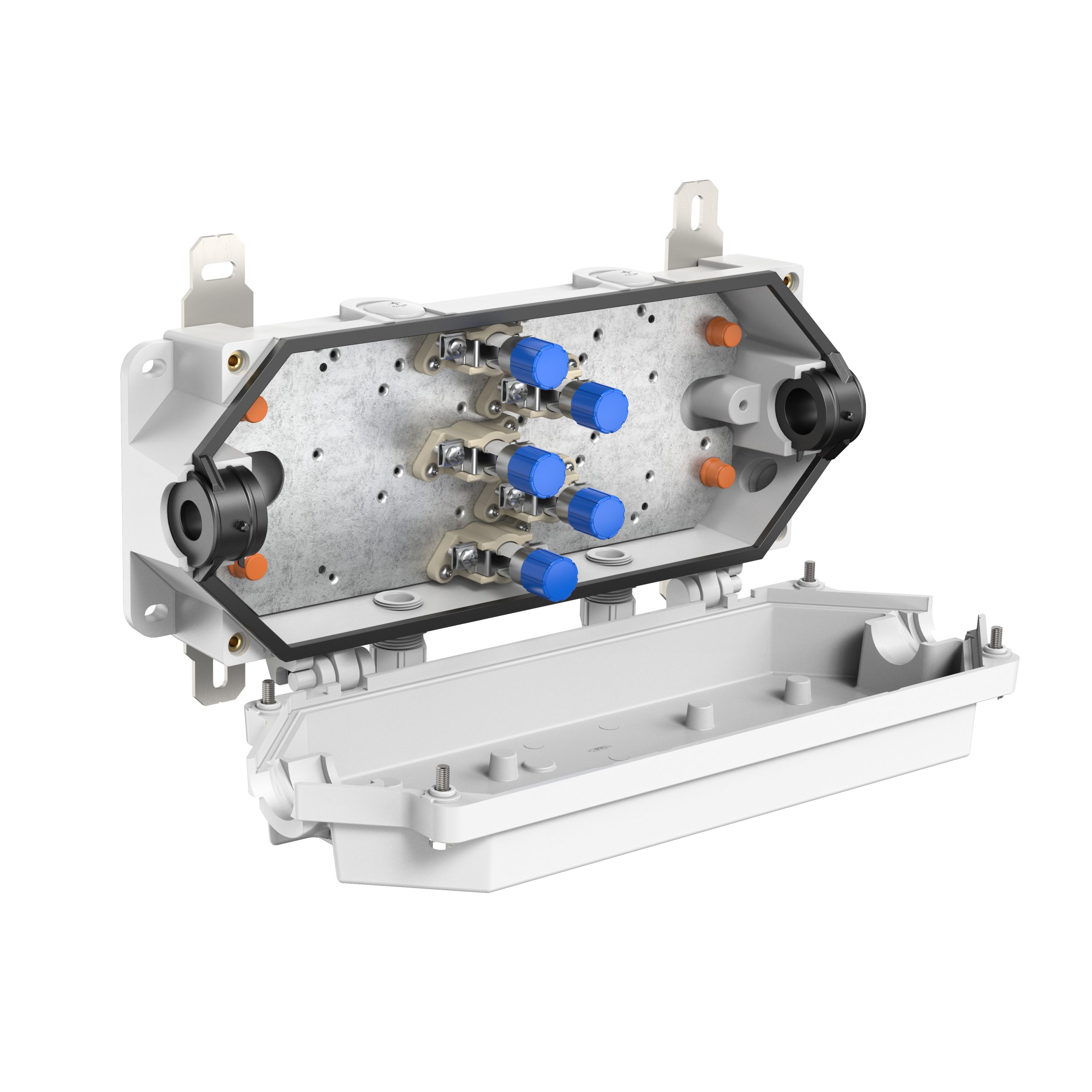

Junction box, grey, Type of protection IP66/IP67, Impact strength IK09, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Junction box, protection class IP66/IP67, Ui=400 V AC, M25, (5 side), external fixing lugs, for installations in the industrial environment and tunnel applications, pressure and suction tight in accordance with Gotthard guideline. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic. External fixing lugs and cover screws made of stainless steel 1.4571, grey, Feed-through: 5-pole terminal for uncut wire, clamping range for uncut wire 16mm² to 50mm², clamping range for cut wire 16mm² to 35mm², rated current 100A. T-piece 5-pole 2 x 2.5-6mm², rated current 40A. Sealing range, main cable: 21-26mm (other sealing ranges on request)
Dimensions: 190 x 447 x 105mm
Accessories supplied: 2 off M25 cable gland, sealing range 9-16mm
4 off M25 locking screws
International product number (GTIN): 4013902655120
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 30210101
Manufacturer type description: Rapid-Box 50² 2×5
Ключові слова: Verbindungsdose, Junction Box, Tunneldose, tunnel box, Abzweigkasten, Junction box, Abzweigdose, Junction socket, gießharz verteilerdose, cast resin junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
