33211201 i 12 -2,5²/w
Код товара: 88674
Ціна за запитом

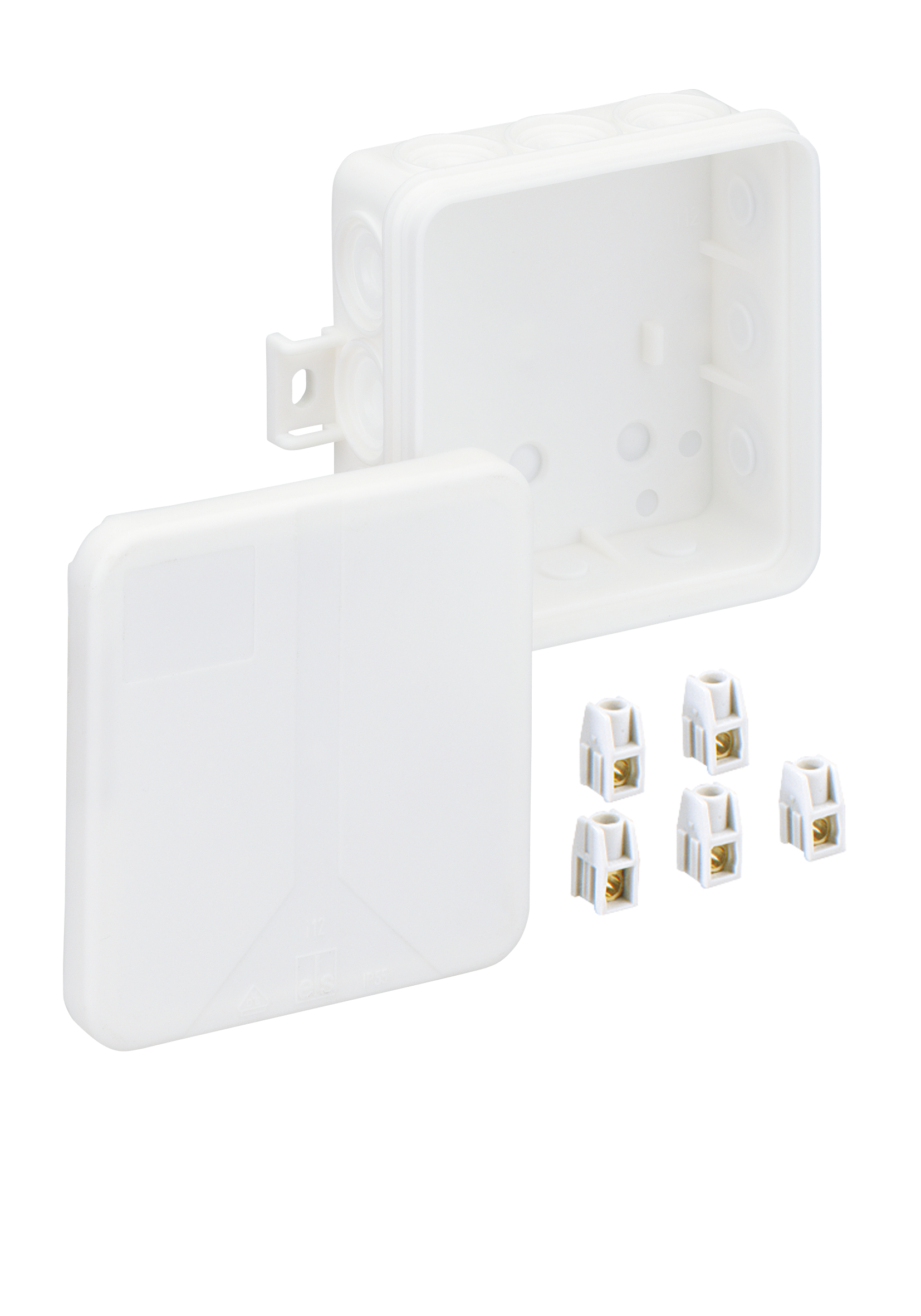

Junction box, Type of protection IP55, Max. conductor cross section 2,5², Impact strength IK07, Protection class II, Ui 400V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP55, nominal cross-section 2.5mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing insertion membranes, sealing range 8,2-12,5mm, (3 rear, 12 side), external fixing lugs, for standard indoor installations, white, In=24 A, with 5 interlockable screw terminals 2.5mm² (5 x1² / 5 x 1.5² / 3 x 2.5²)
Dimensions: 85 x 85 x 37mm
International product number (GTIN): 4013902399284
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 33211201
Manufacturer type description: i 12 -2,5²/w
Ключові слова: i12, i12, i 12, i 12, Klemmenkasten, Terminal box, Verbindungsdose, Junction box, Kabelabzweigkasten, Cable junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
