03350701 GWS 7070 REG
Код товара: 85761
Ціна за запитом
GTI inverter collectors, transparent, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|

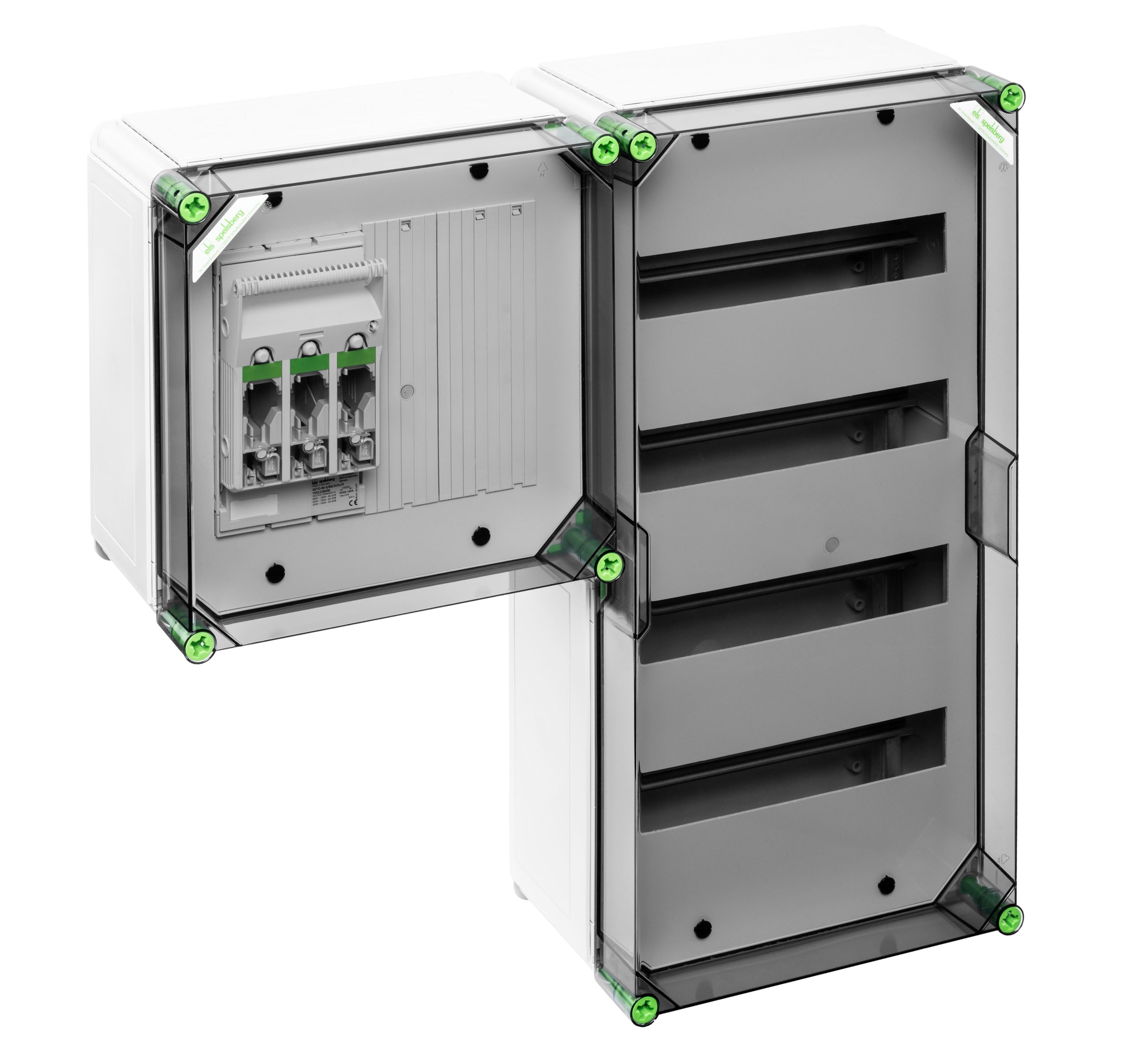

GTi inverter combiner boxes for PV systems, tested in accordance to EN 61439-2, rated power 70 kVA, supplied in assemblies for individual configuration on installation location, simple combination using plug-in system and enclosed accessories, incl. flanges with knockouts for closing the sides of the enclosure, can be individually extended with additional GTi enclosures, consisting of NH-fuse-enclosure GST 2015-250, distribution board GTA 456-H-t, flanges with metric knockouts, for installation of max. 18 miniature circuit breakers (1-pole) for inverters up to max. 6.4 kVA or 6 miniature circuit breakers (3-pole) for inverters up to max. 19.3 kVA
Dimensions: 640 x 640 x 254mm
International product number (GTIN): 4013902690725
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 03350701
Manufacturer type description: GWS 7070 REG
Ключові слова: NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Wechselrichter-Sammler, inverter-collector, Wechselrichtersammler, inverter collectors, WR-Sammler, WR-collector
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
