34571201 2K-12 AB SB-L
Код товара: 88770
Ціна за запитом
Junction box, Type of protection IP55, Max. conductor cross section 2,5², Impact strength IK07, Protection class II, Ui 400V AC, VDE, Halogen free
| Виробник |
|---|

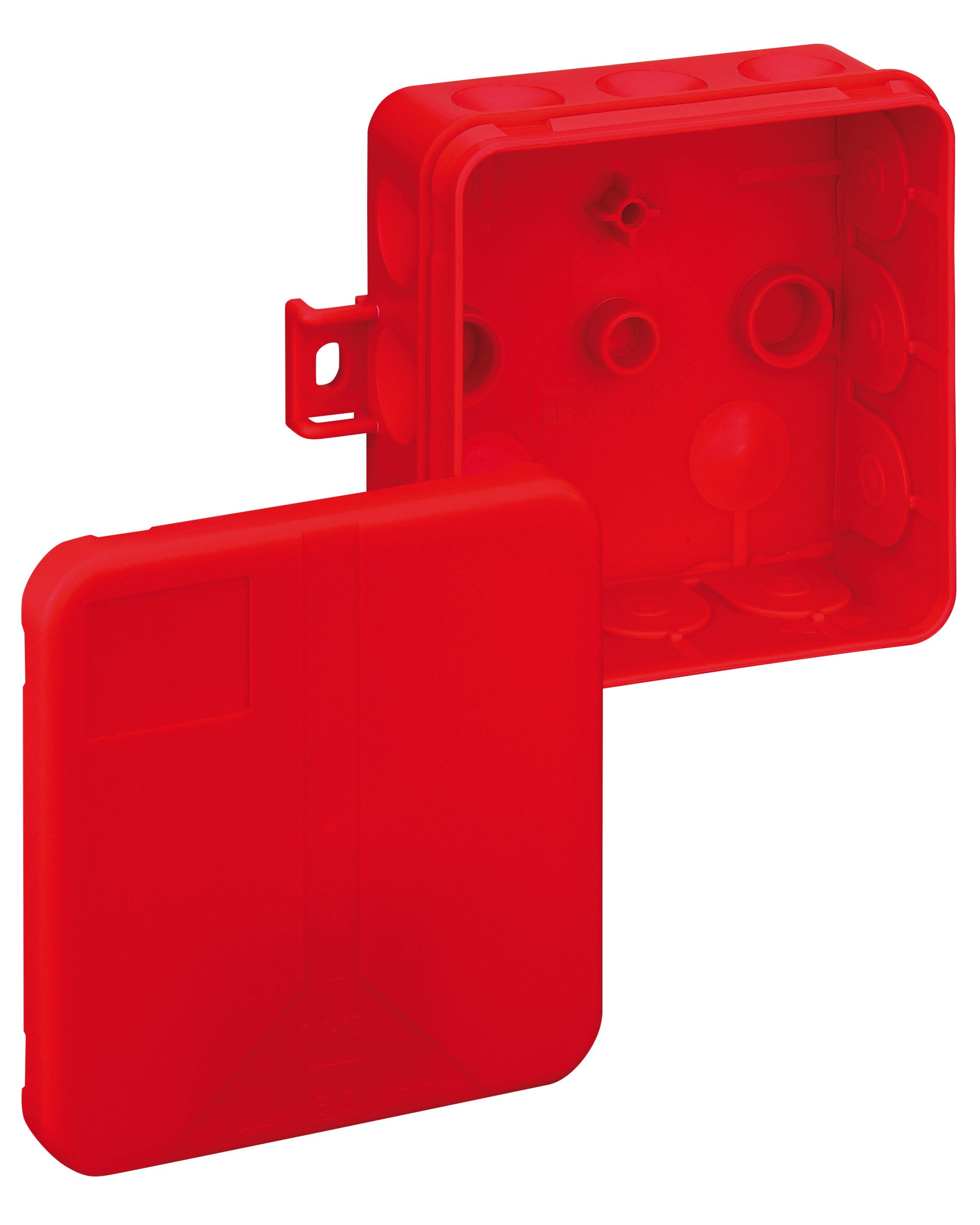

Junction box, protection class IP55, nominal cross-section 2.5mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2-14mm, (2 rear, 12 side), external fixing lugs, for standard indoor installations, red, without terminals, for identifying emergency lighting circuits
Dimensions: 85 x 85 x 37mm
International product number (GTIN): 4013902628803
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 34571201
Manufacturer type description: 2K-12 AB SB-L
Ключові слова: Klemmenkasten, Terminal box, Verbindungsdose, Junction box, Kabelabzweigkasten, Cable junction box, Rote Reihe, Red Range, Kabelabzweigdose, junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
