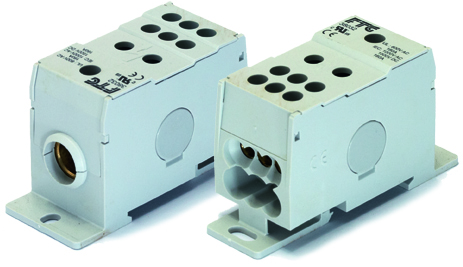

38032 Distribution block 1 pole grey 285A 7 connections
Код товара: 135461
1465,10 грн з ПДВ
The one pole power distribution block is compatible for copper cables. IEC: 160 A | UL: 160 A | max. 285 A multi wire 1 x 10 – 70 sqmm | 1 x 8 – 2/0 AWG 6 x 2,5 – 25 sqmm | 6 x 14 – 4 AWG [Cu 16 x 5 mm max.] with sleeve 1 x 10 – 50 sqmm | 1 x 8 – 1 AWG 6 x 2,5 – 16 sqmm | 6 x 14 – 6 AWG [Cu 16 x 5 mm max.] max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
| Виробник |
|---|
The one pole power distribution block is compatible for copper cables. IEC: 160 A | UL: 160 A | max. 285 A multi wire 1 x 10 – 70 sqmm | 1 x 8 – 2/0 AWG 6 x 2,5 – 25 sqmm | 6 x 14 – 4 AWG [Cu 16 x 5 mm max.] with sleeve 1 x 10 – 50 sqmm | 1 x 8 – 1 AWG 6 x 2,5 – 16 sqmm | 6 x 14 – 6 AWG [Cu 16 x 5 mm max.] max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
International product number (GTIN): 4018841599788
Universal product code (UPC):
Alternative product number: K00 AUX38032
Product ID of the manufacturer: 38032
Manufacturer type description: K00 AUX38032
Ключові слова: one pole power distribution block one pole distribution block one pole distribution terminal terminal one phase one pole terminal distribution block comapct power distribution block terminal block
Special product status:
Classification system: ETIM-7.0
Group reference: EC001894
