3RG9004-0DA00 ACTUATOR SENSOR INTERFACE F90
Код товара: 540690
16332,84 грн з ПДВ

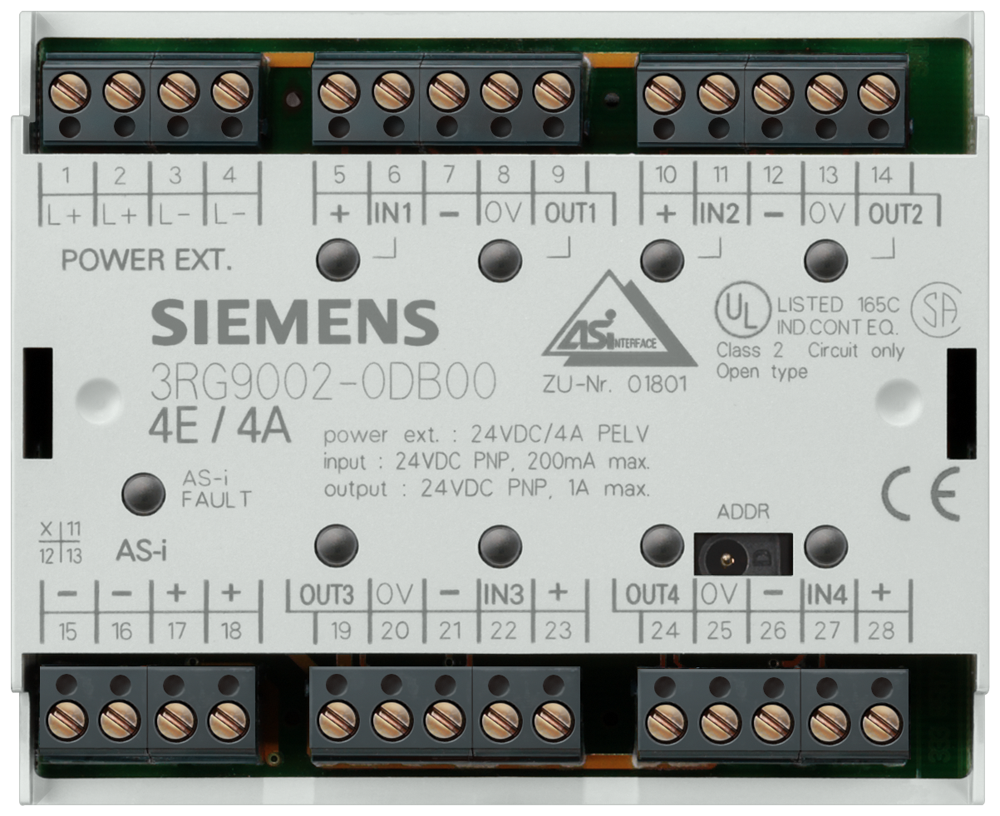

AS-i module F90, digital, 4 I/4 Q, 2/3-wire, IP20 4×1 input, max. 200 mA
| Виробник |
|---|
AS-Interface module F90, digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor 4 x output, 2 A, 24 V DC maximal 6 A for all outputs Connection via Combicon Width 90 mm Combicon connector set 3RX9810-0AA00 must be ordered . AS-Interface – the smart fieldbus standard
International product number (GTIN): 4011209217270
Universal product code (UPC): 754554350059
Alternative product number: 3RG9004-0DA00
Product ID of the manufacturer: 3RG90040DA00
Manufacturer type description: ACTUATOR SENSOR INTERFACE F90
Ключові слова: Digital module, Fieldbus, decentr. periphery – digital I, Extension module, Digital output, Digital input, , , , ,
Special product status:
Classification system: ETIM-8.0
Group reference: EC001599
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
