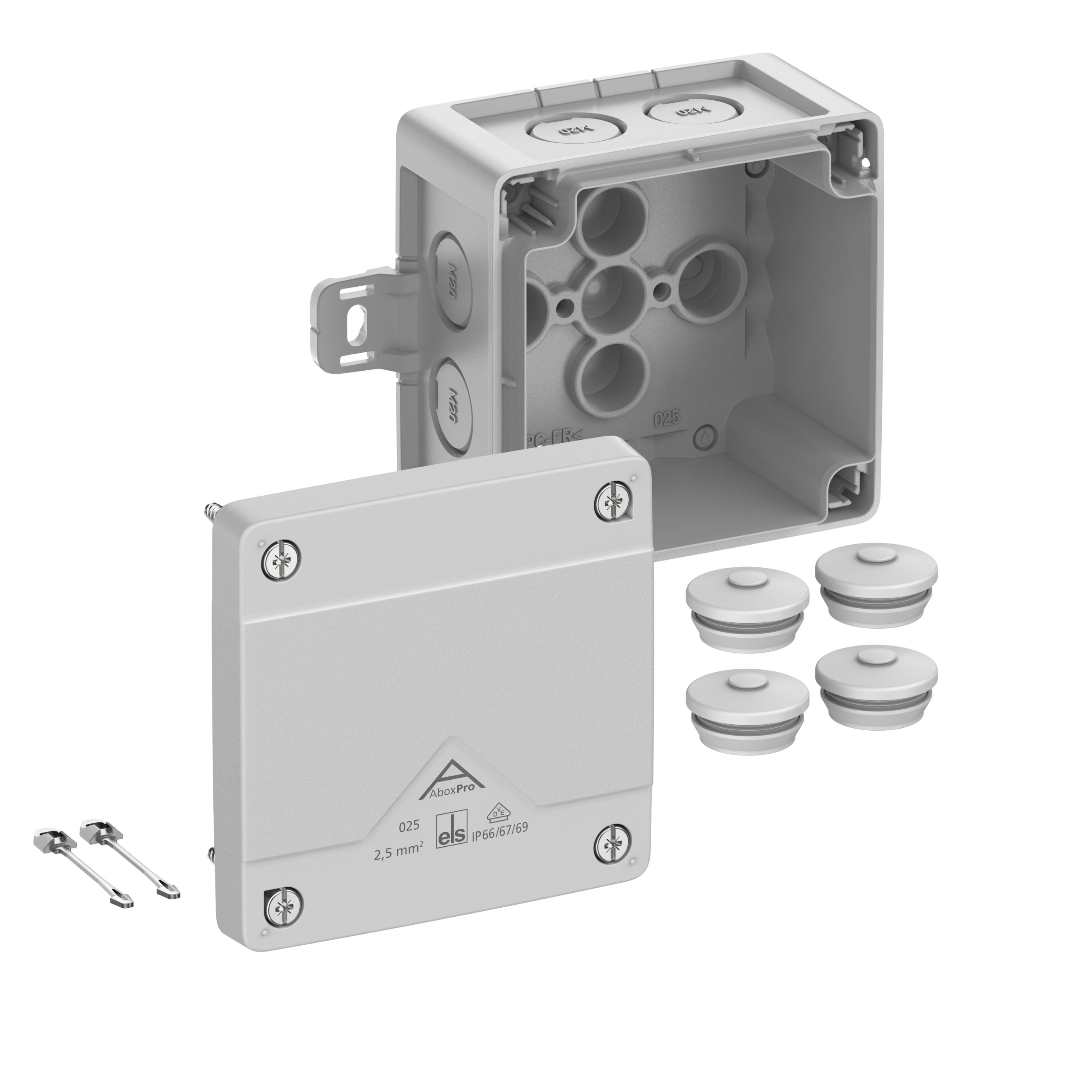

40240101 Abox Pro 025 AB-L
Код товара: 88845
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas, grey, Ui=1000 V AC, without terminals
Dimensions: 92 x 92 x 60mm
Accessories supplied: 4 double membrane seals IP66 M20 sealing range 7-13mm, cover retainer
International product number (GTIN): 4013902662289
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 40240101
Manufacturer type description: Abox Pro 025 AB-L
Ключові слова: Außeninstallation, Exterior installation, IP69, IP69, Außenbereich, Outdoor applications, abx, abx, aox, aox
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
