40247001 Abox Pro SLK-2,5²
Код товара: 88863
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|

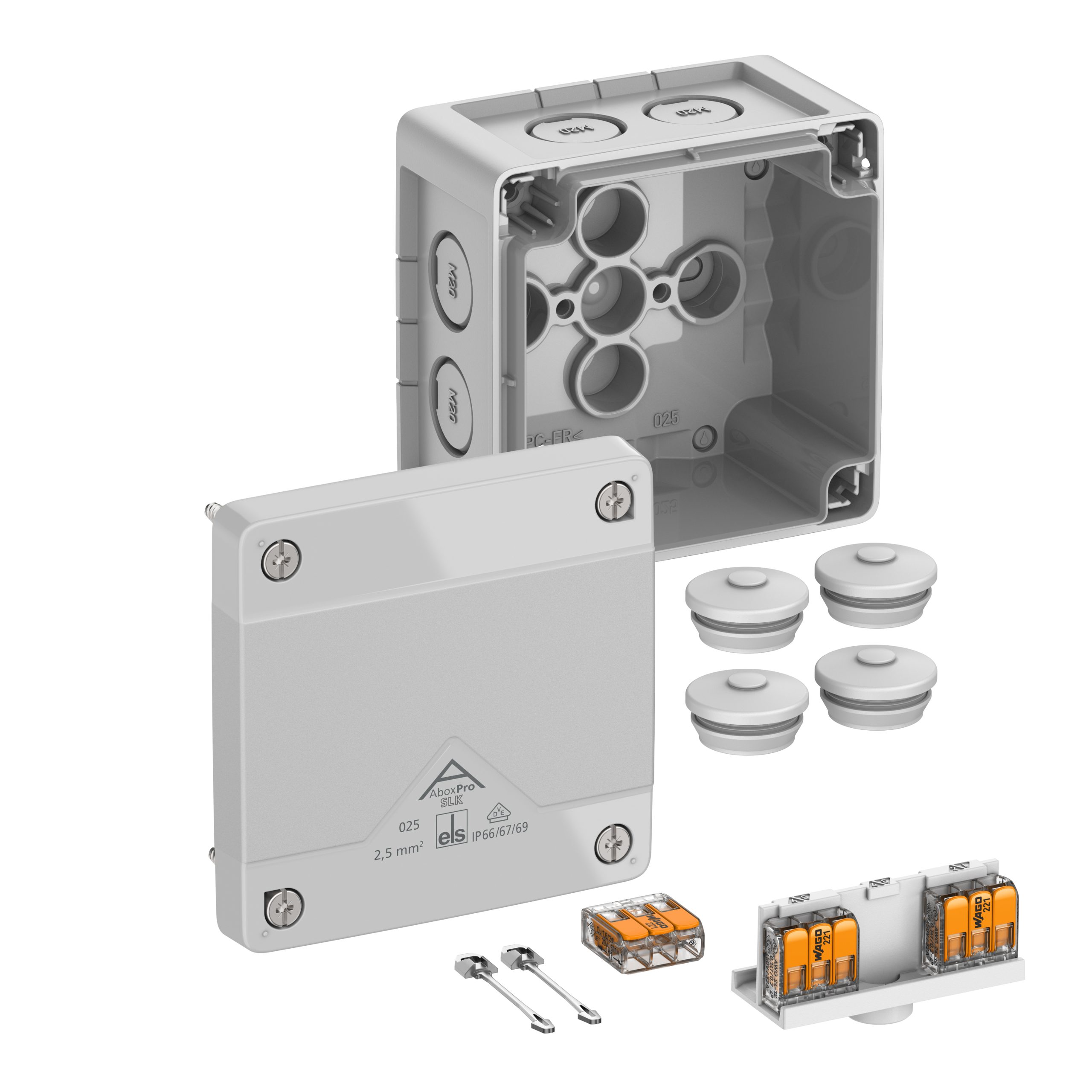

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), internal fixing points, with screwless terminals, for installation in industrial environments and unprotected outdoor areas, grey, In=24 A, with 3 floor-fixed, screwless 3-wire terminals, Wago 221-413-2.5mm², clampable cross-sections per pole: 3 x 0.2 to 2.5mm² rigid Cu and 3 x 0.14 to 2.5mm² flexible Cu
Dimensions: 92 x 92 x 60mm
Accessories supplied: 4 double membrane seals IP66 M20 sealing range 7-13mm, cover retainer
International product number (GTIN): 4013902662524
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 40247001
Manufacturer type description: Abox Pro SLK-2,5²
Ключові слова: Außeninstallation, Exterior installation, Schraubenlos, Screwless, Wago 221, Wago 221, IP69, IP69, Außenbereich, Outdoor applications
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
