40402001 Abox Pro 040-4²/sw
Код товара: 88872
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 4², IK09, Protection class II, Ui 400V AC, Ui 400V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66/IP67/IP69, nominal cross-section 4mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20/M25, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas, black, Ui=400 V AC, In=32 A, with 5 screwless 4-wire terminal blocks, Wago 773-604, max. nominal cross-section in accordance with DIN EN 60998: 4mm², clampable cross-sections per pole: 4 x 1.5-4.0mm² rigid Cu/Al (follow installation instructions)
Dimensions: 102 x 102 x 70mm

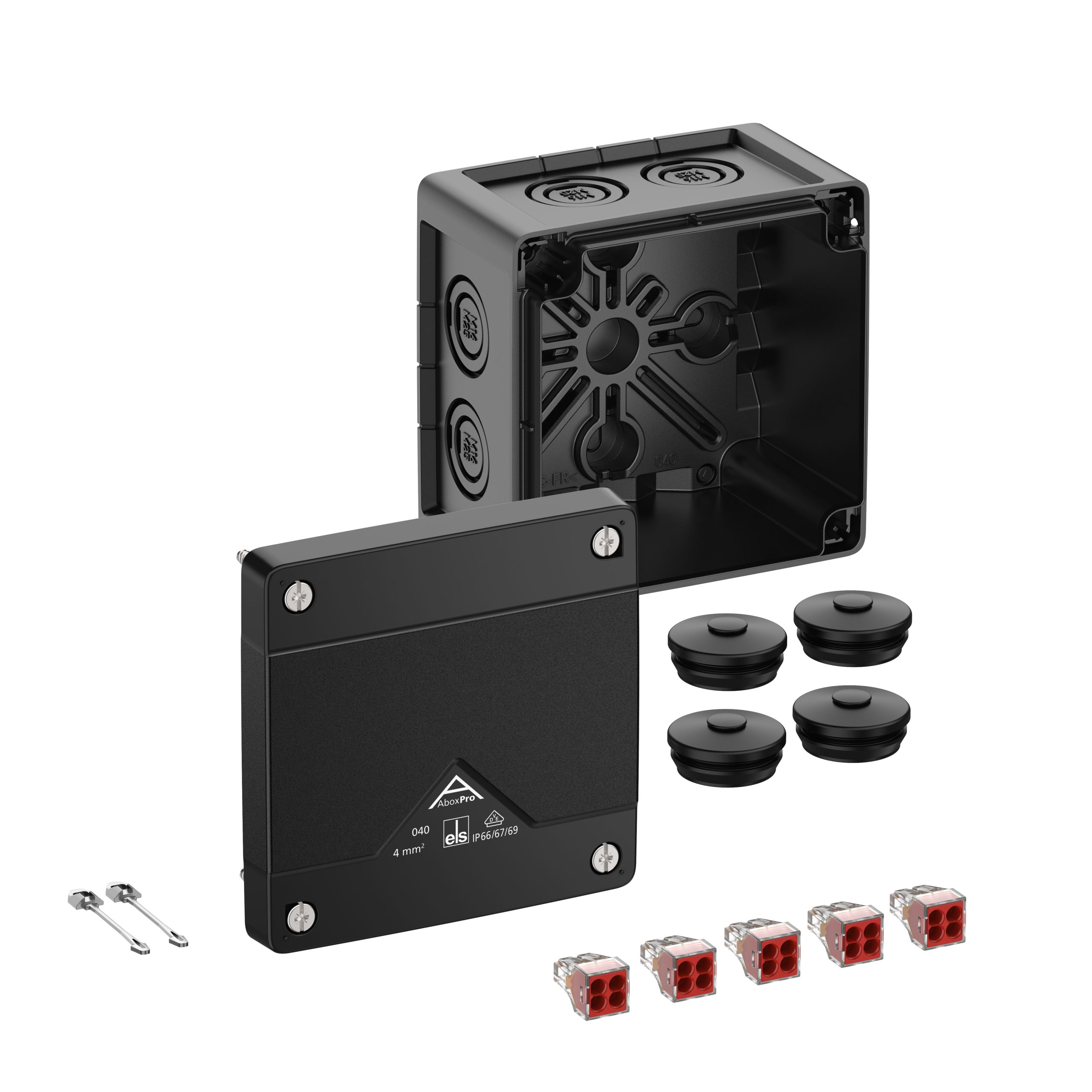

Accessories supplied: 4 double membrane seals IP66 M25 sealing range 9-17mm, cover retainer
International product number (GTIN): 4013902664900
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 40402001
Manufacturer type description: Abox Pro 040-4²/sw
Ключові слова: Außeninstallation, Exterior installation, IP69, IP69, Außenbereich, Outdoor applications, abx, abx, aox, aox
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
