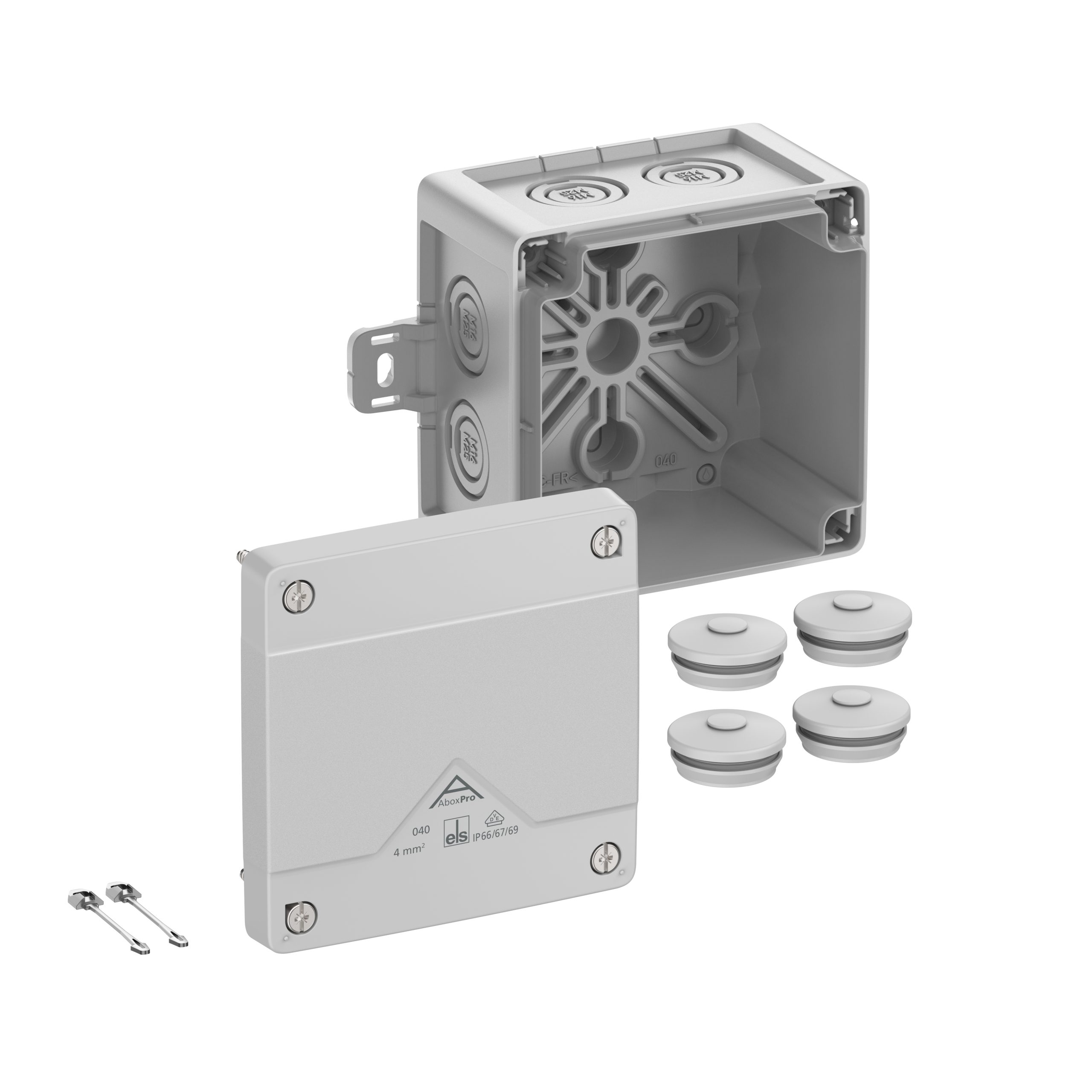

40440101 Abox Pro 040 AB-L
Код товара: 88878
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 4², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66/IP67/IP69, nominal cross-section 4mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20/M25, (1 rear, 7 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas, grey, Ui=1000 V AC, without terminals
Dimensions: 102 x 102 x 70mm
Accessories supplied: 4 double membrane seals IP66 M25 sealing range 9-17mm, cover retainer
International product number (GTIN): 4013902664757
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 40440101
Manufacturer type description: Abox Pro 040 AB-L
Ключові слова: Außeninstallation, Exterior installation, IP69, IP69, Außenbereich, Outdoor applications, abx, abx, aox, aox
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
