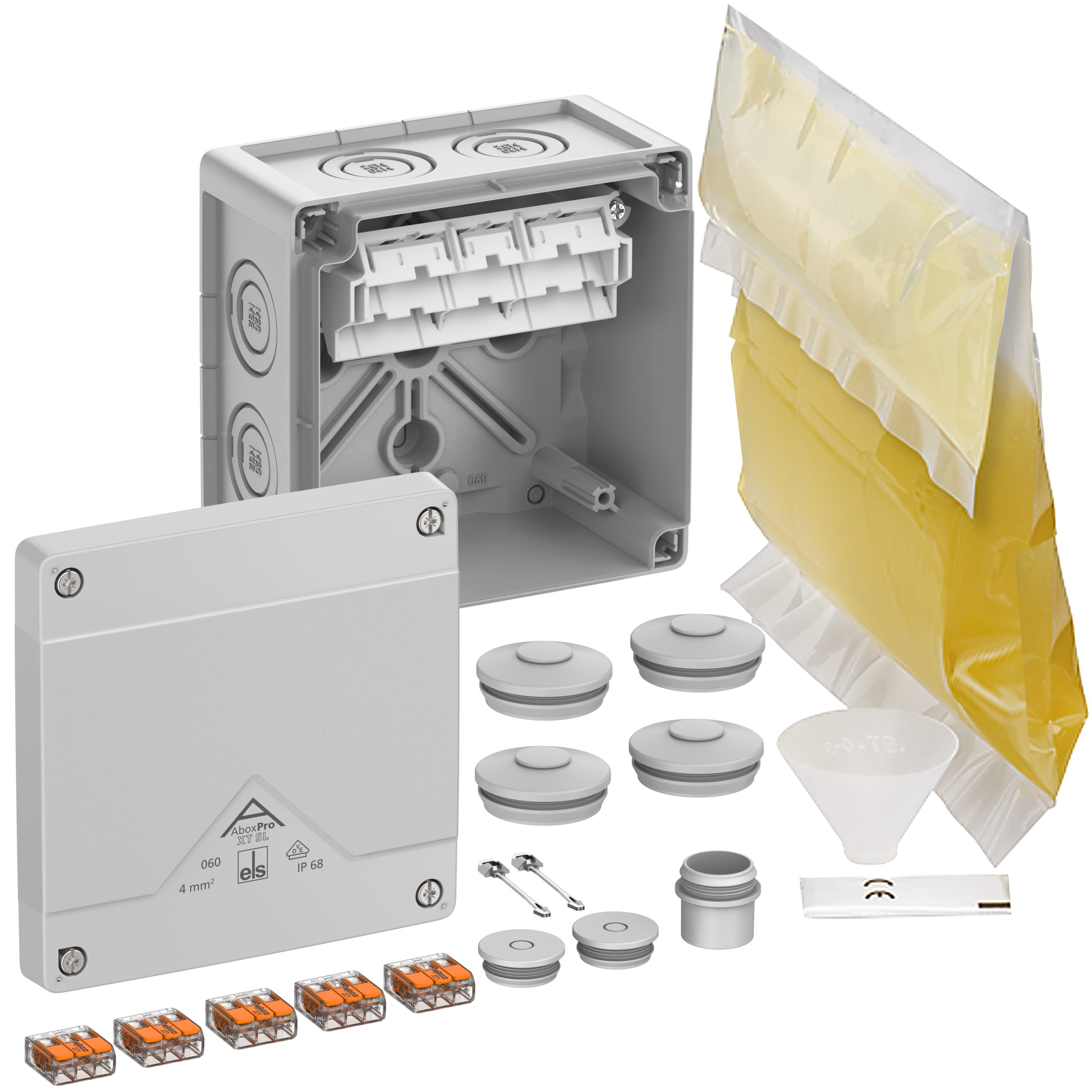

40546001 Abox Pro XT SL-4²

Junction box, protection class IP68, nominal cross-section 4mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, with screwless terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads, for installation in industrial environments and unprotected outdoor areas, grey, In=32 A, with 5 raised, screwless 3-wire terminal blocks, Wago 221-413-4mm², clampable cross-sections per pole: 3 x 0.2 to 4mm² rigid Cu and 3 x 0.14 to 4mm² flexible Cu
Dimensions: 127 x 127 x 75mm
Accessories supplied: 4 double membrane seals IP66 M32 sealing range 13-21mm, 2 sealing plugs M20, 1 attachment bush M20, cover retainer, 1 cast resin bag GHB Pro 3 with filling funnel and disposable gloves
