04155401 GSi 554 Plus
Код товара: 85832
Ціна за запитом
Busbar enclosures, Type of protection IP65, Impact strength IK08, Protection class II, Rated insulation voltage 690V AC, Halogen free
| Виробник |
|---|

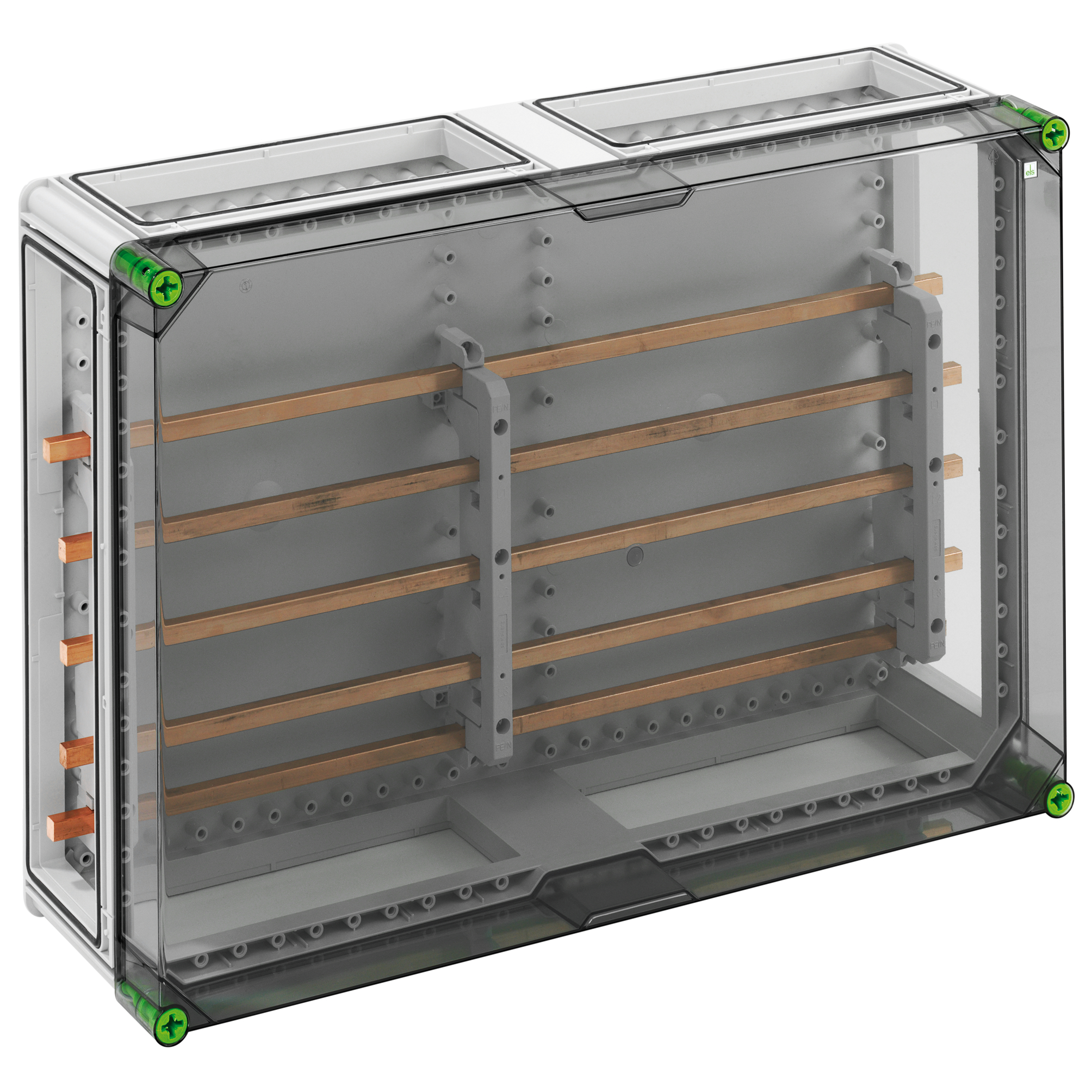

Busbar housing with additional connection space-Industrial Quality -, Busbar system, 5-pole, without terminals, for individual fitting, with transparent cover, 4 x enclosure connectors (GGV), with busbar system, 5-pole 400A, with copper rails, L1…L3: 20 x 10mm, N: 20 x 10mm, PE: 12 x 10mm
Dimensions: 640 x 440 x 179mm
International product number (GTIN): 4013902987634
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04155401
Manufacturer type description: GSi 554 Plus
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC002274
