04602501 GST 4025-250
Код товара: 85910
Ціна за запитом
NH fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|

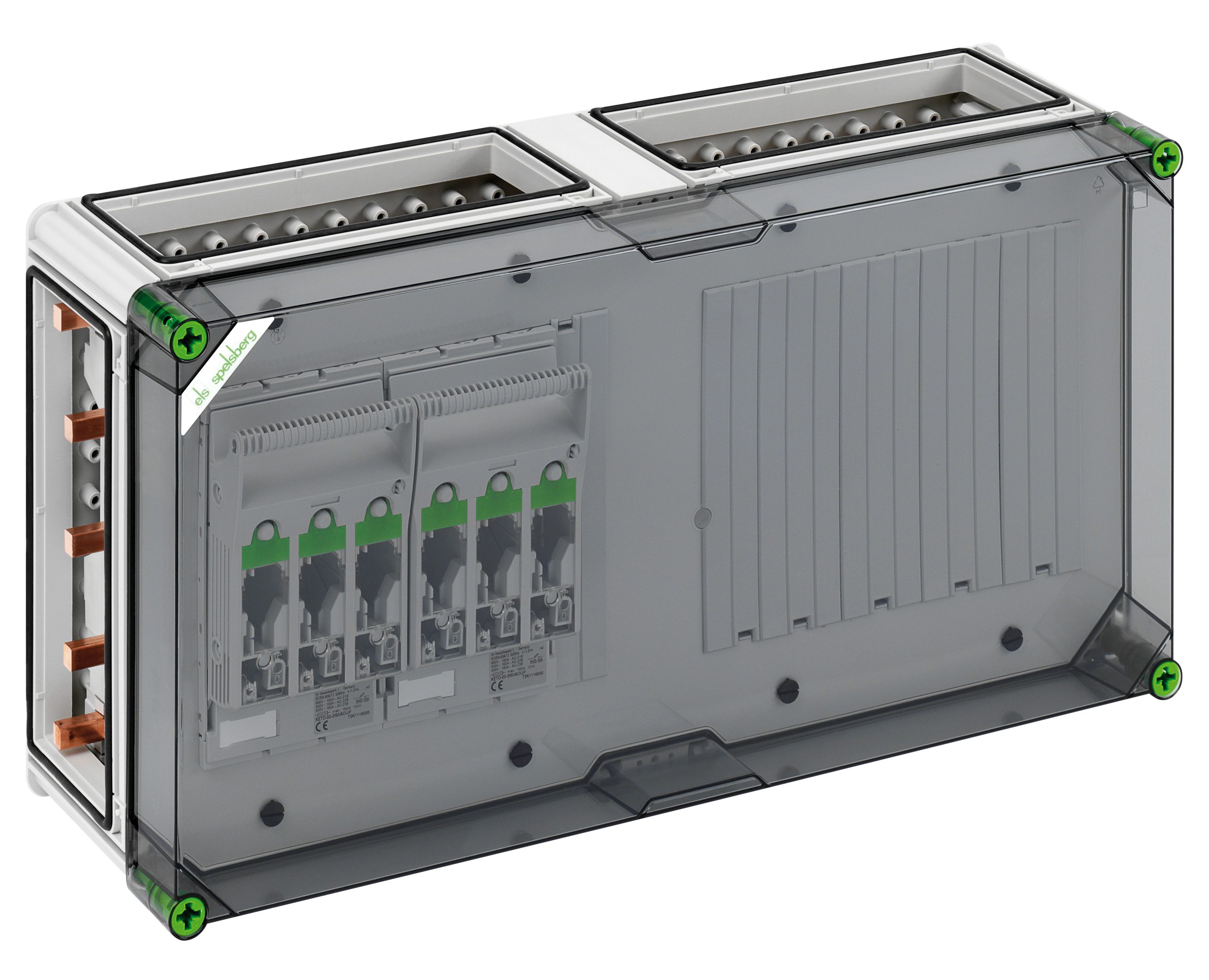

busbar enclosure-Industrial Quality -, equipped with 2 x NH 00-fuse-switch-disconnector, clip terminal clamp 1.5-50mm², Universal output, 5-pole busbar, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each switch, 4 x enclosure connectors (GGV)
, busbar system 250 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902052189
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04602501
Manufacturer type description: GST 4025-250
Ключові слова: NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
