04731501 GST 3015-250 Plus
Код товара: 86004
Ціна за запитом

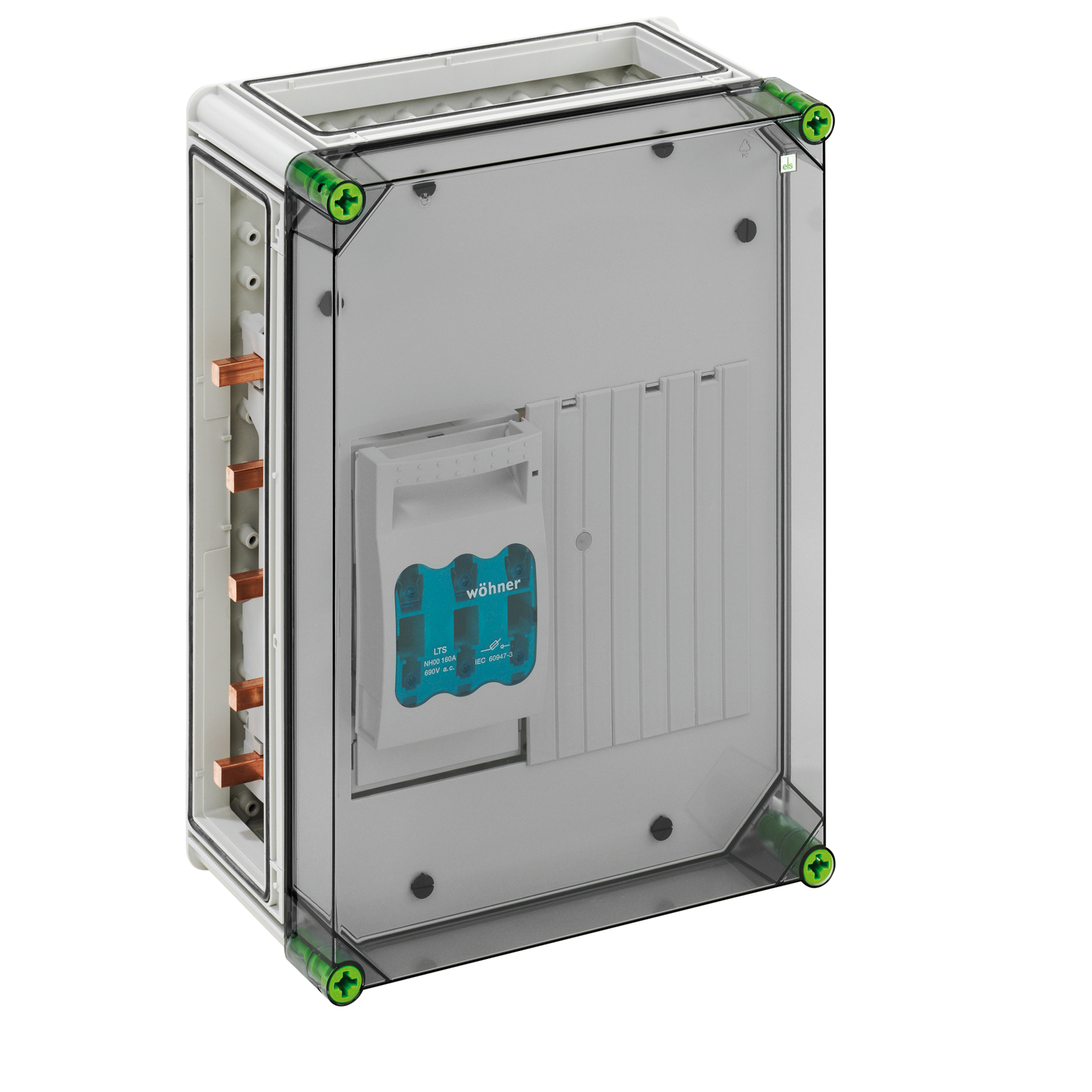

NH fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|
NH bus-mounting fuse empty enclosure for switchgear with additional connection space-Industrial Quality -, 1 x NH 00 fuse switch disconnector enclosure, Rated current 125 A, Clamp connection 1.5-70mm², Output on top, on 5-pole busbar, with 5 busbar terminals 16-70mm², N terminal 4-35mm², PE terminal 4-35mm², 3 x enclosure connectors (GGV), on busbar system 250 A, with transparent cover
Dimensions: 320 x 440 x 179mm
International product number (GTIN): 4013902987856
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04731501
Manufacturer type description: GST 3015-250 Plus
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
