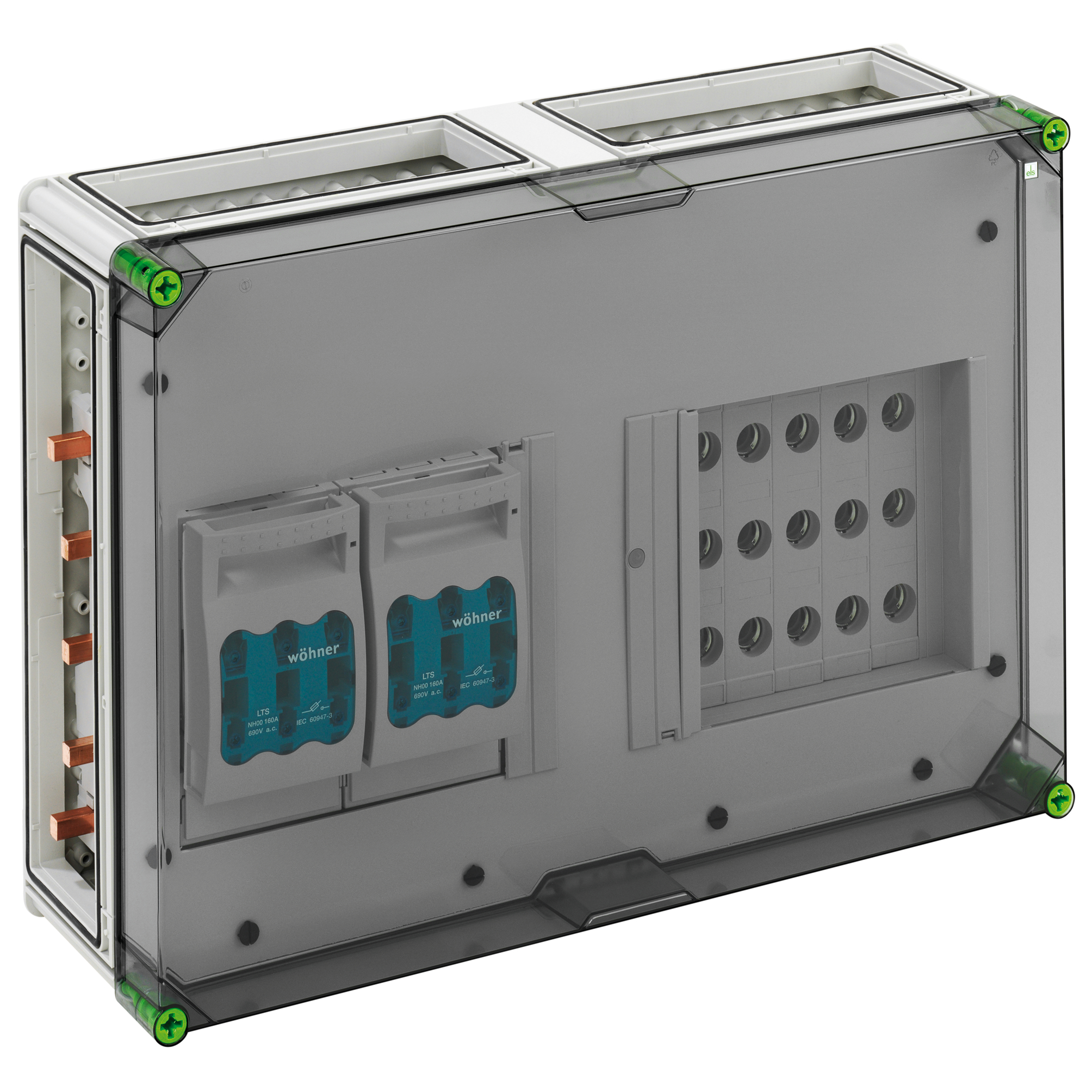

04750201 GST 502-KN-250 Plus
Код товара: 86019
Ціна за запитом
Protection switch disconnector housing, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Combined fuse enclosure with additional connection space-Industrial Quality -, 2 x NH 00 fuse switch disconnector enclosure, Rated current 125 A, Clamp connection 1.5-70mm², Output on top, 5 x 3-pole D02 bus-mounting fuse base, E 18 thread, Rated current 63 A, Screw connection 1.5-25mm², on 5-pole busbar, with 5 busbar terminals 16-70mm², N terminal 4-35mm², PE terminal 4-35mm², N terminal 1.5-16mm², PE terminal 1.5-16mm², 4 x enclosure connectors (GGV), on busbar system 250 A, with transparent cover
Dimensions: 640 x 440 x 179mm
International product number (GTIN): 4013902988099
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04750201
Manufacturer type description: GST 502-KN-250 Plus
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
