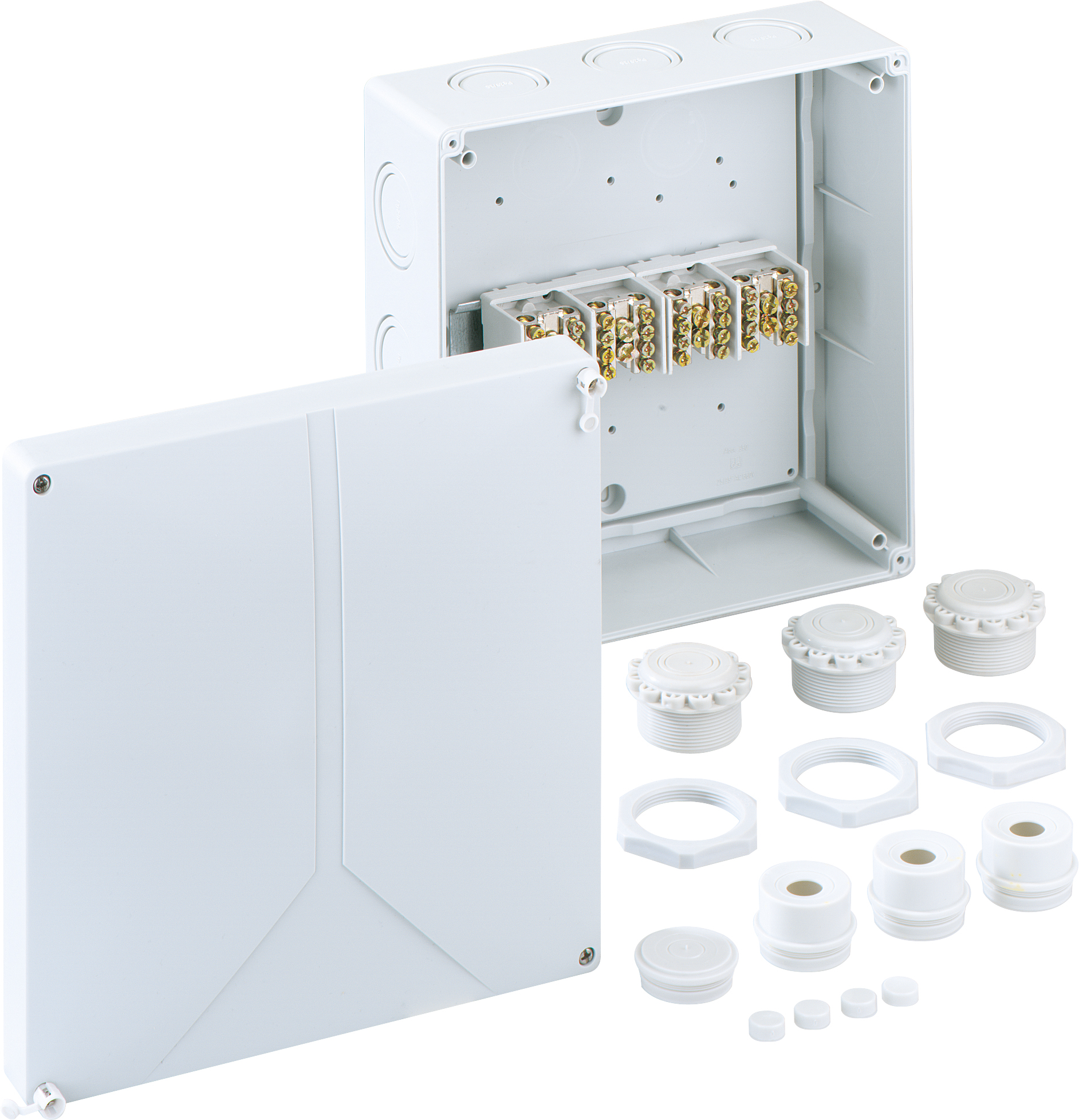

48043501 Abox HA 350
Код товара: 89040
Ціна за запитом
Junction box, Type of protection IP54/IP65 , Max. conductor cross section 35², Impact strength IK07, Protection class II, Ui 690V AC, Halogen free
| Виробник |
|---|
Junction box, protection class IP54/IP65, nominal cross-section 35mm², Ui=690 V AC, knockouts, M25/M32/M40/M50, (2 rear, 12 side), internal fixing points, with main line junction terminal for standard installations indoors, grey, with screw terminal 4-pole-35mm²
Dimensions: 250 x 250 x 115mm
Accessories supplied: 3 attachment bushes IP54 M40 sealing range 17-30mm, 1 sealing plug M40, 3 twist plugs with locknuts IP54 M50 sealing range 13-35mm
International product number (GTIN): 4013902858224
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 48043501
Manufacturer type description: Abox HA 350
Ключові слова: abx, abx, aox, aox, Klemmenkasten, Terminal box, Abox, Abox, Kabelabzweigkasten, Cable junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
