49280201 Abox XT SL 2,5²
Код товара: 89217
Ціна за запитом
Junction box, Type of protection IP68, Max. conductor cross section 2,5², Impact strength IK08, Protection class II, Ui 450V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP68, nominal cross-section 2.5mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M20, (1 rear, 7 side), internal fixing points, with screwless terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads,, grey, In=24 A, with 5 raised, screwless 3-wire terminals, Wago 221-413 type, max. nominal cross-section according to DIN EN 60998: 2.5mm², cross-sections able to be clamped per pole: 3 x 0.2 to 2.5mm² rigid and 3 x 0.14 to 2.5mm² flexible
Dimensions: 82 x 82 x 52mm

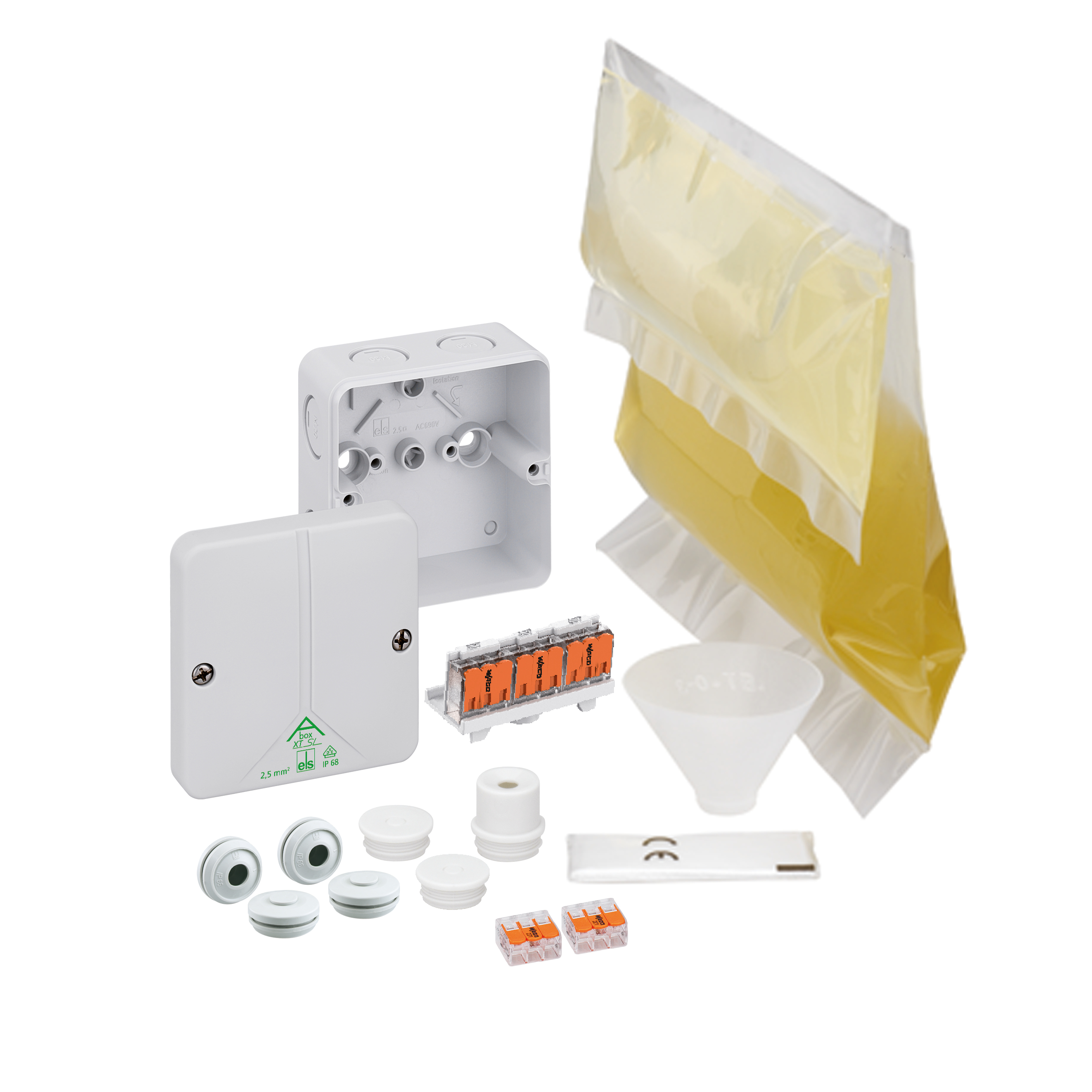

Accessories supplied: 4 double membrane seals IP66 M20 sealing range 7-12mm, 2 sealing plugs M20, 1 attachment bush M20, 1 cast resin bag GHB1 with filling funnel
International product number (GTIN): 4013902643257
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 49280201
Manufacturer type description: Abox XT SL 2,5²
Ключові слова: vergießen, cast, vergiessen, cast, Schraubenlos, Screwless, IP68, IP68, Wago 221, Wago 221
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
