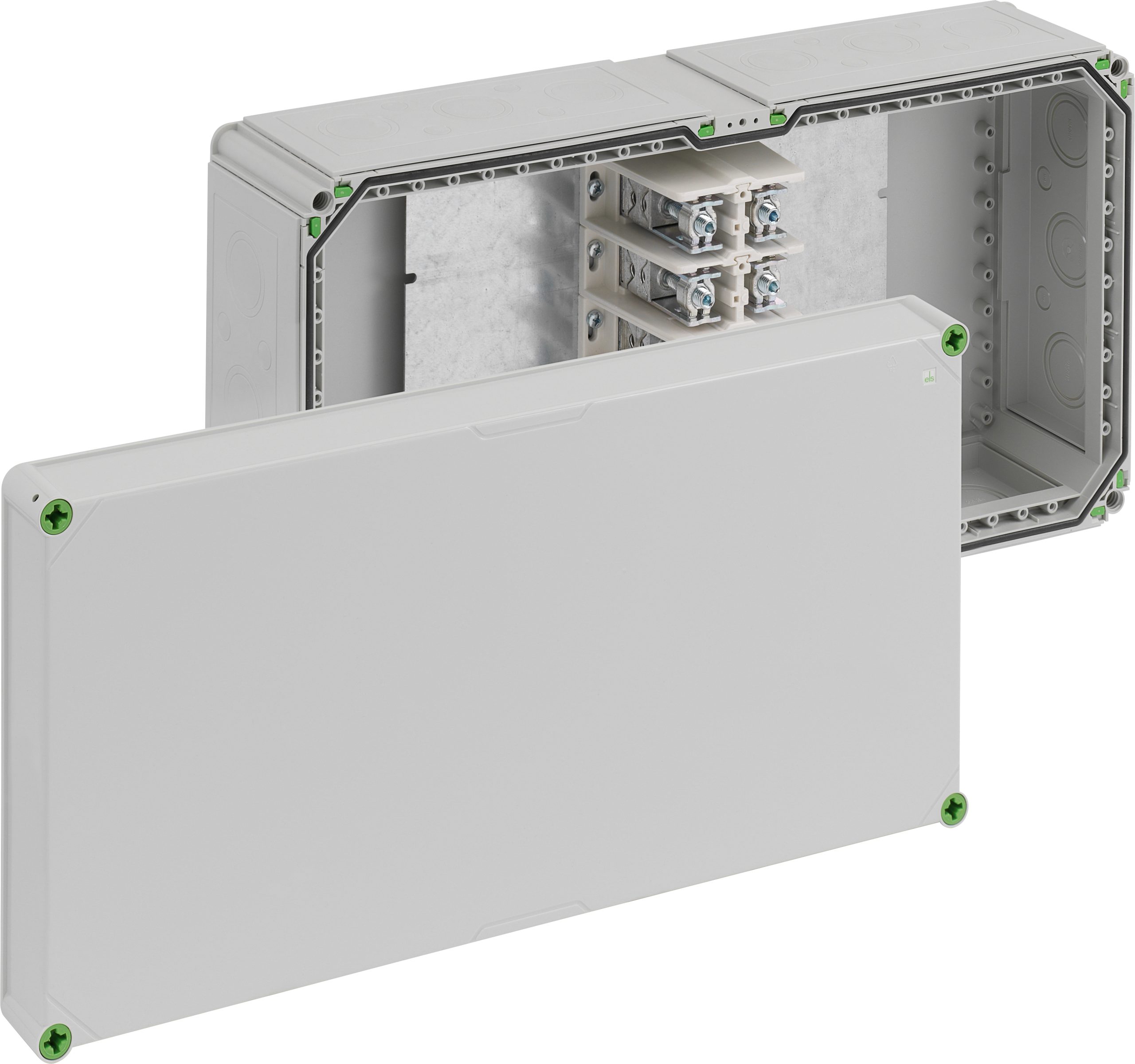

49049101 Abox-i 2400 240²/5
Код товара: 89085
Ціна за запитом
Junction box, Type of protection IP65, Max. conductor cross section 240², Impact strength IK08, Protection class II, Ui 690V AC, Halogen free
| Виробник |
|---|
Junction box, protection class IP65, nominal cross-section 240mm², Ui=690 V AC, knockouts, M16/M40/M50, (30 side), internal fixing points, for installations in industrial environments and protected outdoor areas, grey, with special screw terminal for conductor entry on top, 5-pole-240² (25 to 240mm², CU/AL)
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902642007
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 49049101
Manufacturer type description: Abox-i 2400 240²/5
Ключові слова: Hensel K 2405, Hensel K 2405, Hensel K 1205, Hensel K 1205, abx, abx, aox, aox, Klemmenkasten, Terminal box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
