05043684 GSD 436-400
Код товара: 86061
Ціна за запитом

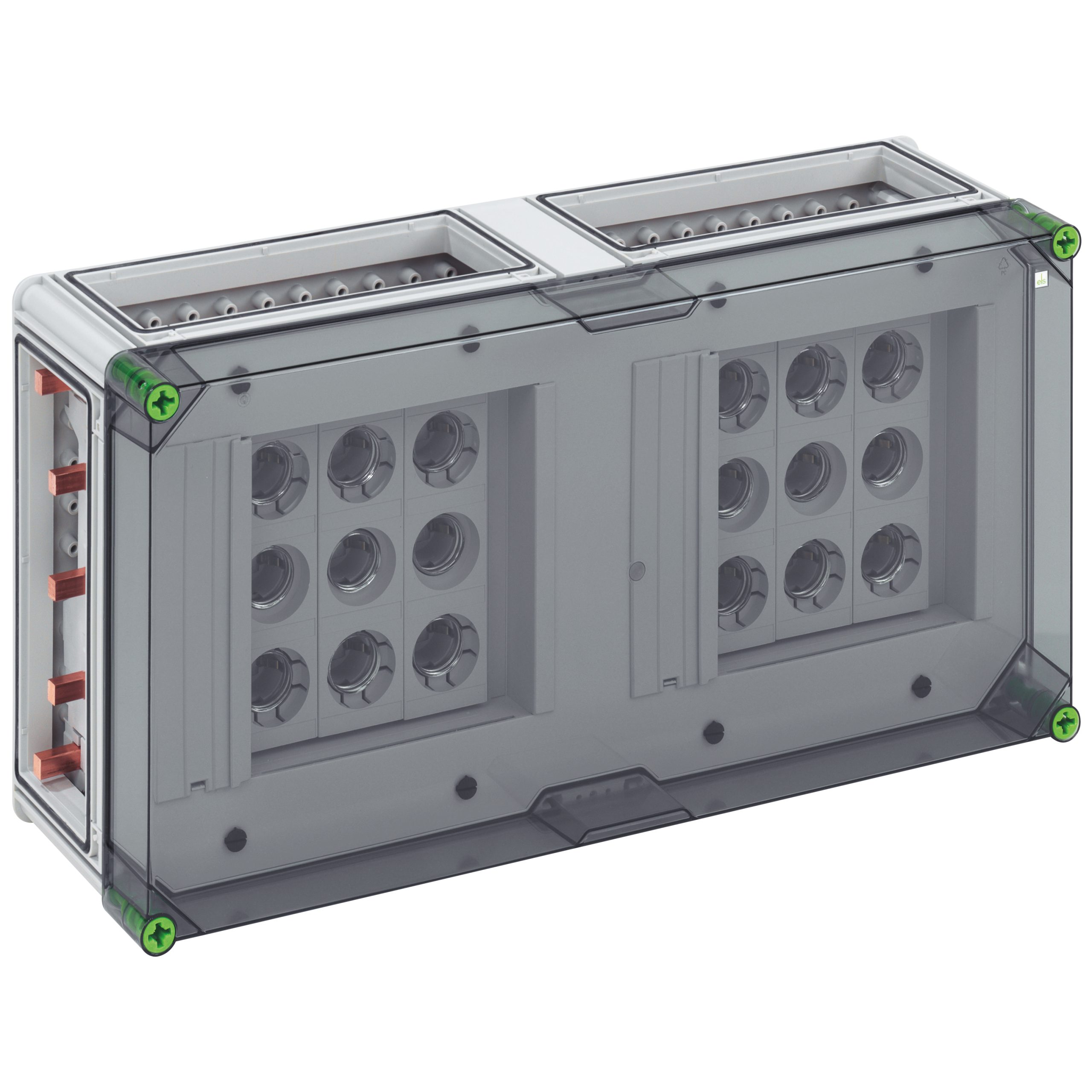

DIAZED® fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 500V AC, Halogen free
| Виробник |
|---|
DIAZED(R) fuse enclosure-Industrial Quality -, 6 x 3-pole DIII bus-mounting fuse base, E 33 thread, Rated current 63 A, Screw connection 1.5-25mm², on 5-pole busbar, with 5 busbar terminals 4-35mm², N terminal 1.5-16mm², PE terminal 1.5-16mm², 4 x enclosure connectors (GGV), on busbar system 400 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902990924
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 05043684
Manufacturer type description: GSD 436-400
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000100
