50180401 Abox-i SLK-4²
Код товара: 89268
Ціна за запитом
Junction box, Type of protection IP66, Max. conductor cross section 4², Impact strength IK08, Protection class II, Ui 450V AC, DLG, VDE, Halogen free
| Виробник |
|---|

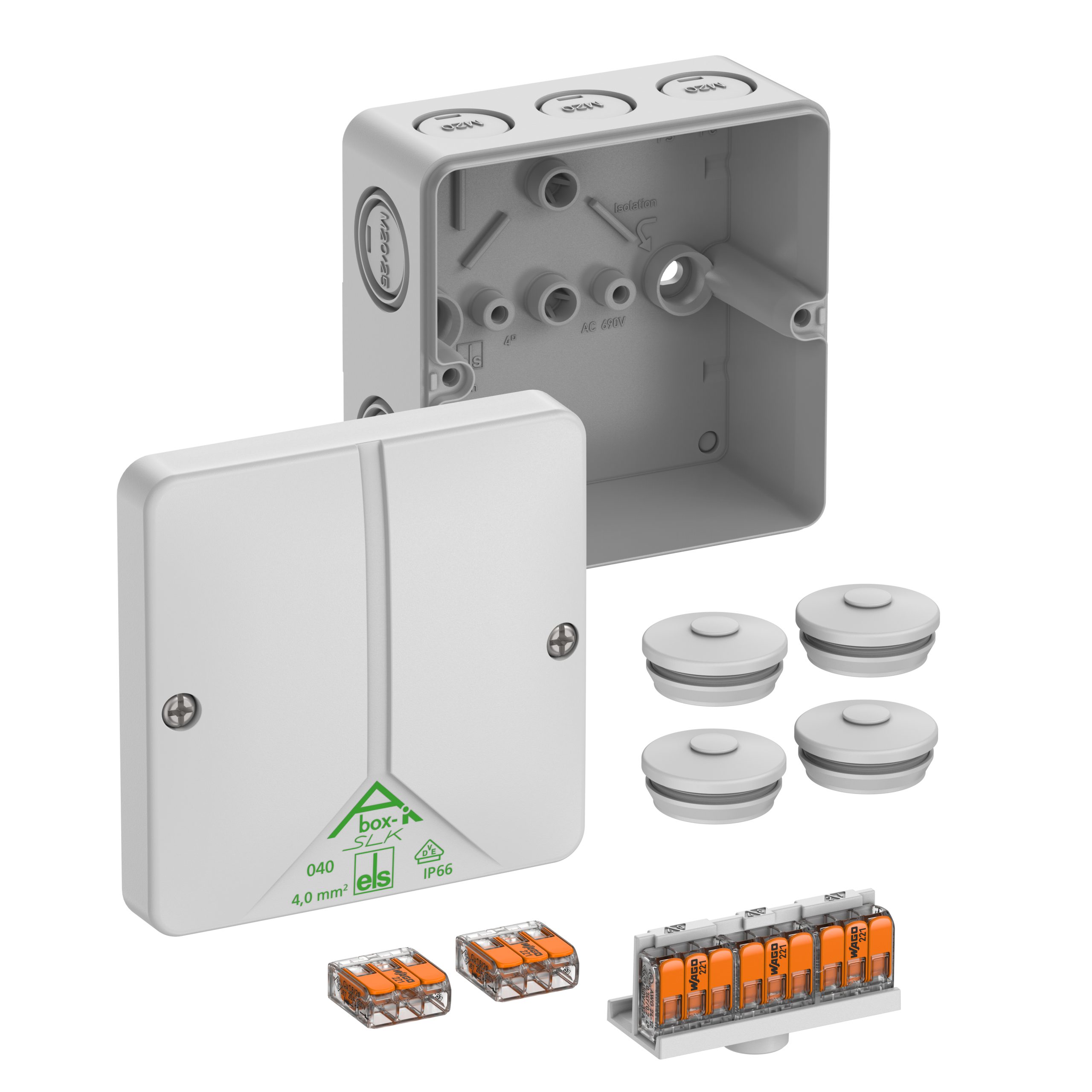

Junction box, protection class IP66, nominal cross-section 4mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25, (1 rear, 8 side), internal fixing points, with screwless terminals for installations in the industrial arena and protected outside areas, grey, with 5 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413-4mm², cross-sections that can be clamped per pole: 3 x 0.2 to 4mm² rigid Cu and 3 x 0.14 to 4mm² flexible Cu
Dimensions: 94 x 94 x 57mm
Accessories supplied: 4 double membrane seals IP66 M25 sealing range 9-16mm,
International product number (GTIN): 4013902668953
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 50180401
Manufacturer type description: Abox-i SLK-4²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
