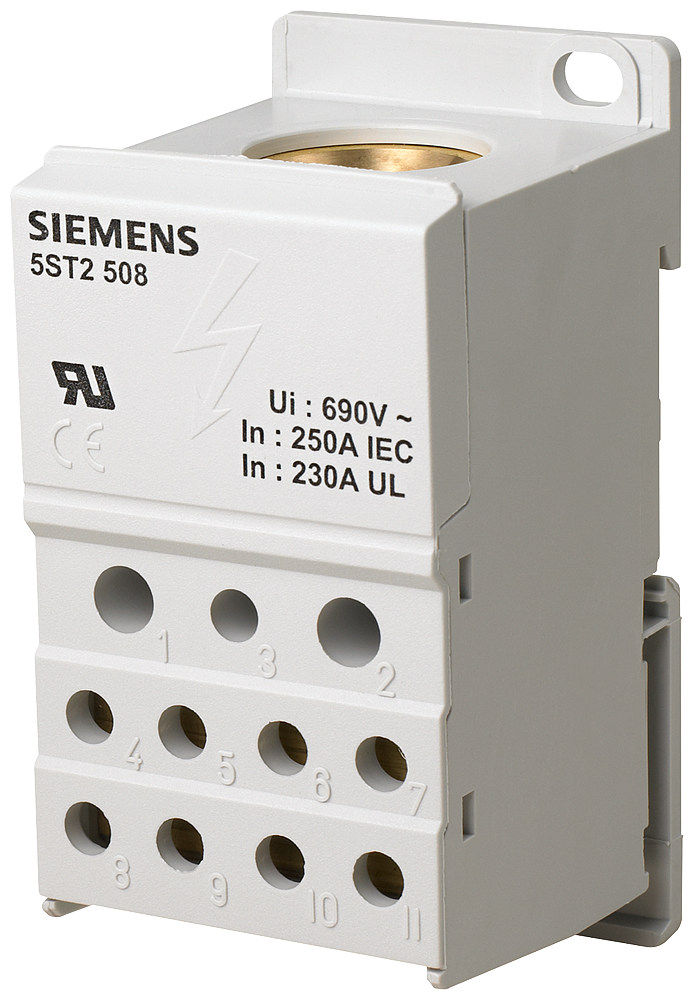

5ST2508 DISTRIB.BOARD BLOCK 1-POLE,250A …
Код товара: 479082
5832,00 грн з ПДВ
Distribution block 1-pole, 250 A, 690V Input: 1x 35-120 mm2 Output: 2×2.5-25+5x 2.5-16+4x 2.5-10 mm2 for installation on standard mounting rail
| Виробник |
|---|
Distribution block 1-pole, 250 A, 690V Input: 1x 35-120 mm2 Output: 2×2.5-25+5x 2.5-16+4x 2.5-10 mm2 for installation on standard mounting rail Distribution block SENTRON 5ST2 as additional components for residual current devices and miniature circuit breakers.These additional components can be mounted universally. They are easy and convenient to install and connect. Thanks to the standard touch protection, safety is reliably ensured during installation.
International product number (GTIN): 4001869319018
Universal product code (UPC): 887621384470
Alternative product number: 5ST2508
Product ID of the manufacturer: 5ST2508
Manufacturer type description: DISTRIB.BOARD BLOCK 1-POLE,250A 690V
Ключові слова: Connection clamp, Screwed terminal, Feed-through terminal block, Bolt connection, Clamp, Contact clip, Clip, Connection terminal, ,
Special product status:
Classification system: ETIM-8.0
Group reference: EC000897
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
