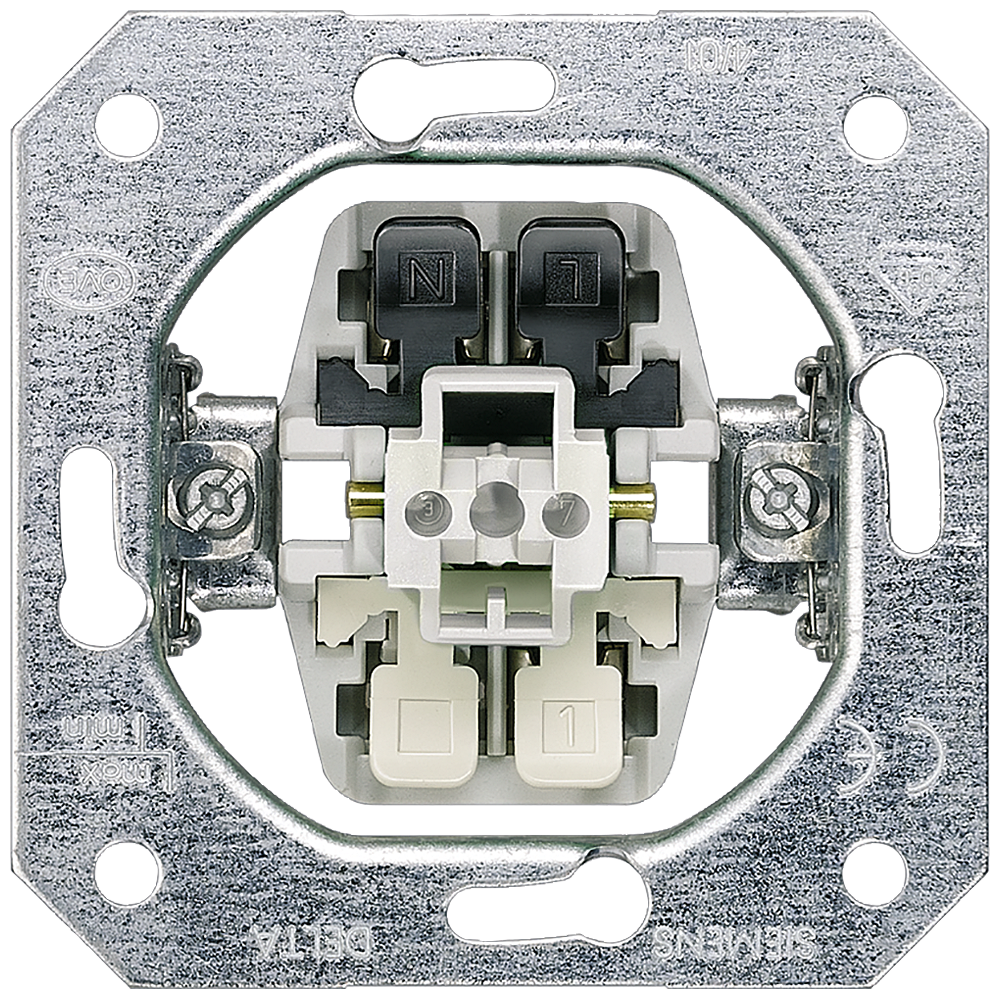

5TD2116 DELTA P.BUTTON INSERT FM+CONT. L…
Код товара: 508701
393,66 грн з ПДВ
DELTA insert flush-m. pushbutton with N terminal, 1 NO
| Виробник |
|---|
DELTA pushbutton device insert, UP with continuous lighting 1 NO, with N terminal 10A 250V Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room.The DELTA switch inserts are fitted with a combination screw for Torx T10 and slotted screwdrivers. The 3 mm plaster compensation ensures reliable function even where wall conditions are extreme.The switches are available as ON/OFF, two-way, and intermediate switches as well as in various pushbutton variants. There are also versions for shutter/blind controls, motion detectors, timers, or room temperature controls.DELTA switch and socket outlets – design and quality to perfection from Siemens.
International product number (GTIN): 4001869093512
Universal product code (UPC):
Alternative product number: 5TD2116
Product ID of the manufacturer: 5TD2116
Manufacturer type description: DELTA P.BUTTON INSERT FM+CONT. LIGHT 1NO
Ключові слова: Pulse contact, Momentary switch, Push-switch button, Basic element, Change-over contact, Push button, Button, Touch control button, Reversing pushbutton, Series push button
Special product status:
Classification system: ETIM-8.0
Group reference: EC000029
