62990401 RKA 4/136-L
Код товара: 89566
Ціна за запитом

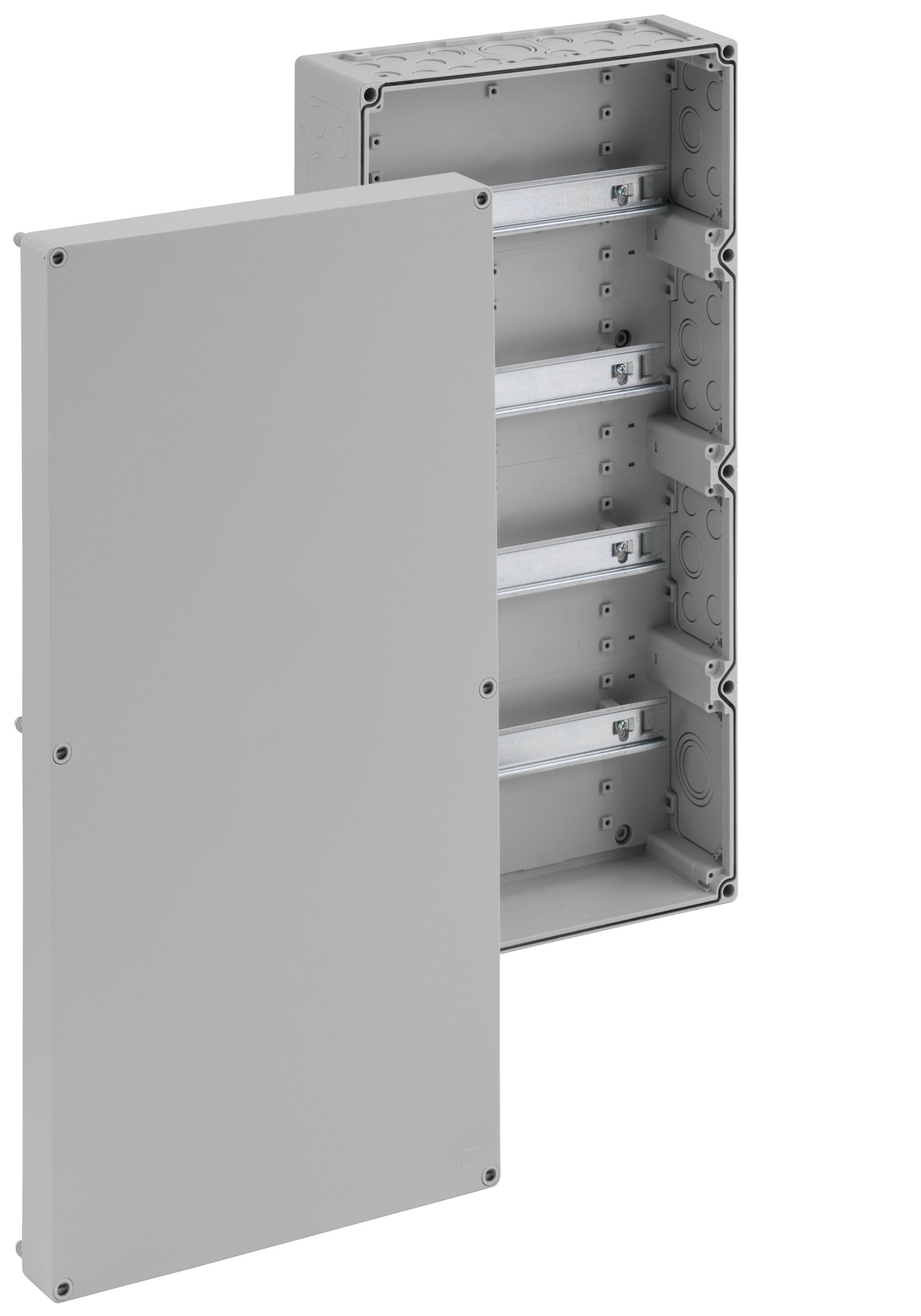

Terminal block enclosure, Type of protection IP65, max. 4², Impact strength IK07, Protection class II, Ui 400V AC, Halogen free
| Виробник |
|---|
Terminal block enclosure, protection class IP65, nominal cross-section 4mm², Ui=400V AC, Polystyrene, internal fixing points, for standard indoor installations, without terminals, with mounting rails NS35
Dimensions: 300 x 600 x 132mm
Accessories supplied: 10 Double-membrane seal IP66 M20 sealing range 7-12mm, 2 Double-membrane seals IP66 M25 sealing range 9-16mm, 2 Double-membrane seal M32 sealing range 14-21mm, 1 Double-membrane seal IP66 M40 sealing range 19-28mm
International product number (GTIN): 4013902858507
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 62990401
Manufacturer type description: RKA 4/136-L
Ключові слова: Leergehäuse, Empty enclosure, Reihenklemmengehäuse, Terminal block enclosure, Rangierverteiler, terminal board, Klemmengehäuse, terminal housing, Kunststoffgehäuse, Plastic enclosure
Special product status:
Classification system: ETIM-9.0
Group reference: EC002713
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
