16041001 ALR 2212-4²
Код товара: 87790
Ціна за запитом
Terminal block enclosure, Type of protection IP66, Max. conductor cross section 4², Impact strength IK09, Ui 400V AC, Halogen free
| Виробник |
|---|

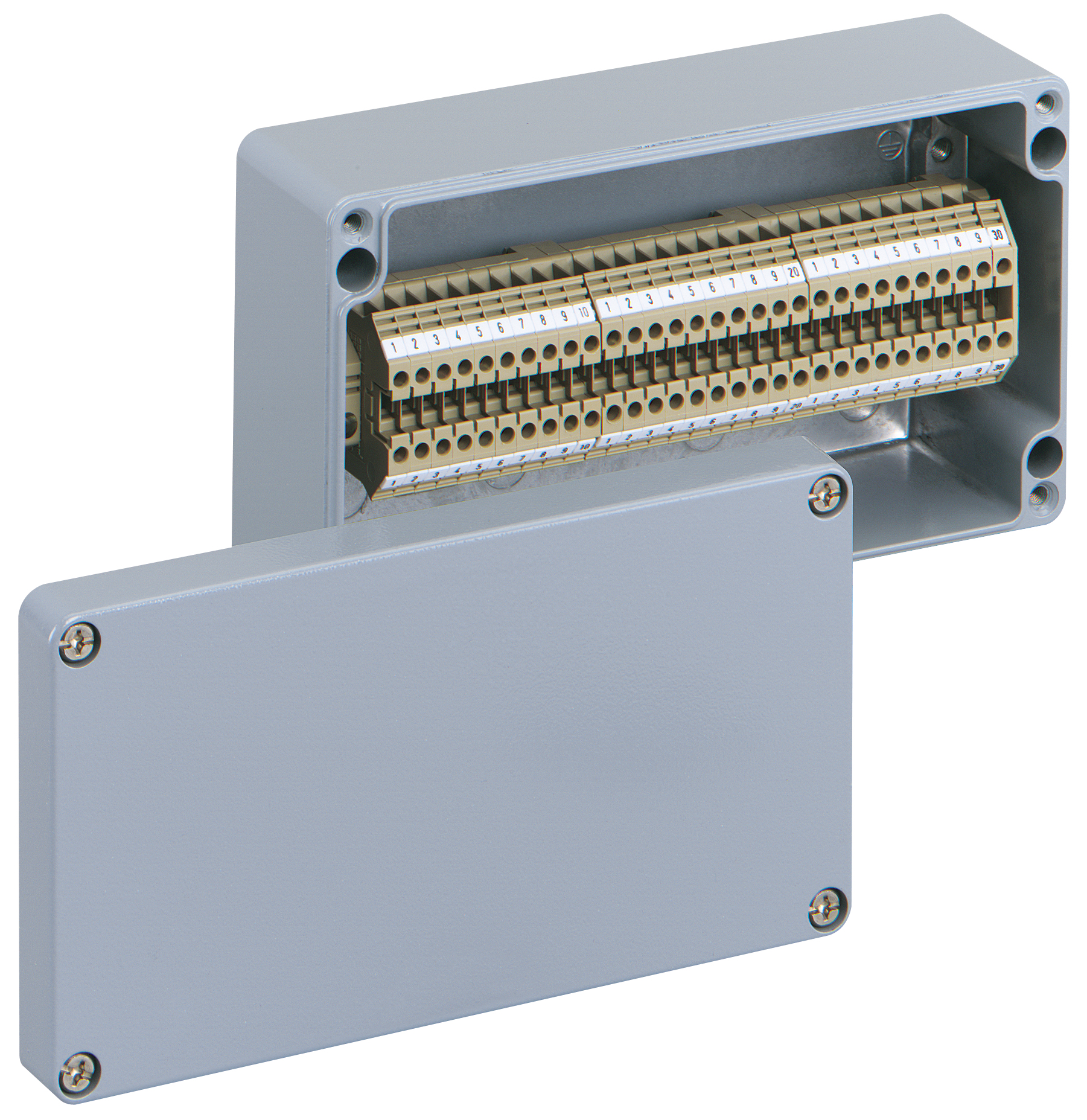

Terminal block enclosure, protection class IP66, nominal cross-section 4mm², Ui=400V AC, Aluminium, powder-coated painting, internal fixing points, for installations in industrial environments and protected outdoor areas, equipped with 30-pole terminal block 4mm² (Contaclip RK 2.5-4 type)
Dimensions: 220 x 120 x 81mm
International product number (GTIN): 4013902350636
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 16041001
Manufacturer type description: ALR 2212-4²
Ключові слова: Reihenklemmengehäuse, Terminal block enclosure, Rangierverteiler, terminal board, Klemmengehäuse, terminal housing, Gehäuse, Enclosure, Aluminiumgehäuse, Aluminium enclosure
Special product status:
Classification system: ETIM-9.0
Group reference: EC002713
