72921201 STV 912-AFDD
Код товара: 90141
Ціна за запитом

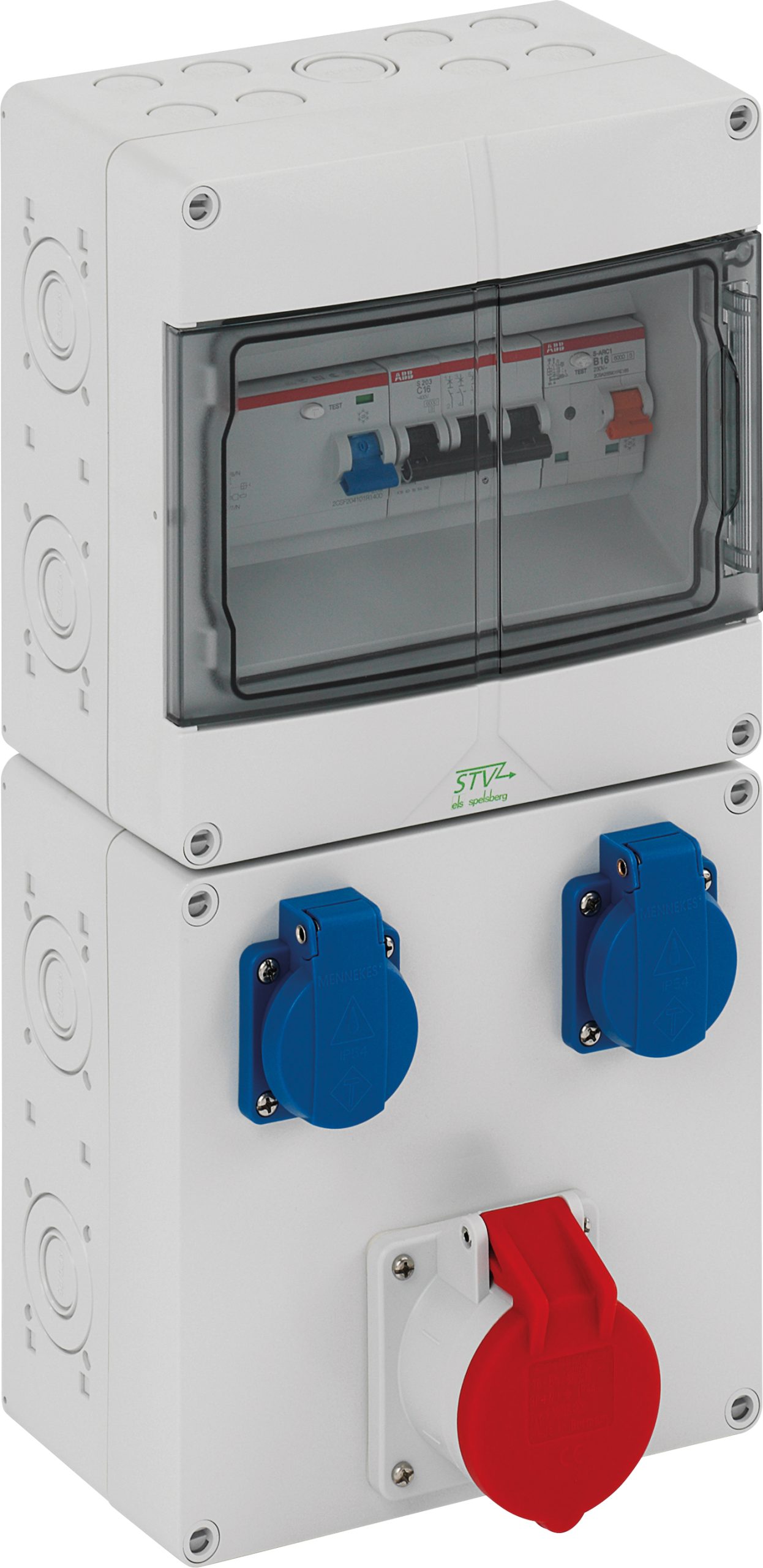

Socket outlet combination, grey, Type of protection IP44, Impact strength IK08, Protection class II, Rated insulation voltage 230V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, additional protection from AFDD (fire protection switch), ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined
Cable insertions:
Top: Pre-embossing 8 x M20, 1 x M25/32
Bottom: Pre-embossing 8 x M20, 1 x M25/32
Left: Pre-embossing 4 x M20/25
Right: Pre-embossing 4 x M20/25
Rear: Pre-embossing 4 x M20/25,
equipped with:
- 1 x AFDD with miniature circuit breaker B16A, 1+N-pole
- 1 x Miniature circuit breaker C 16 A, 3p
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
- 2 x SCHUKO(R) plug socket (on front), 230V
- 1 x CEE plug socket outlet (on front) 16A, 400V
Dimensions: 200 x 400 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902607525
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 72921201
Manufacturer type description: STV 912-AFDD
Ключові слова: anschlussfertig, Plug-and-play status, AFDD, AFDD, Brandschutzschalter, Fire protection switch, SCHUKO, SCHUKO, AMAXX, AMAXX
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
