73331101 AK-F/DMS 14 L-t
Код товара: 90303
Ціна за запитом

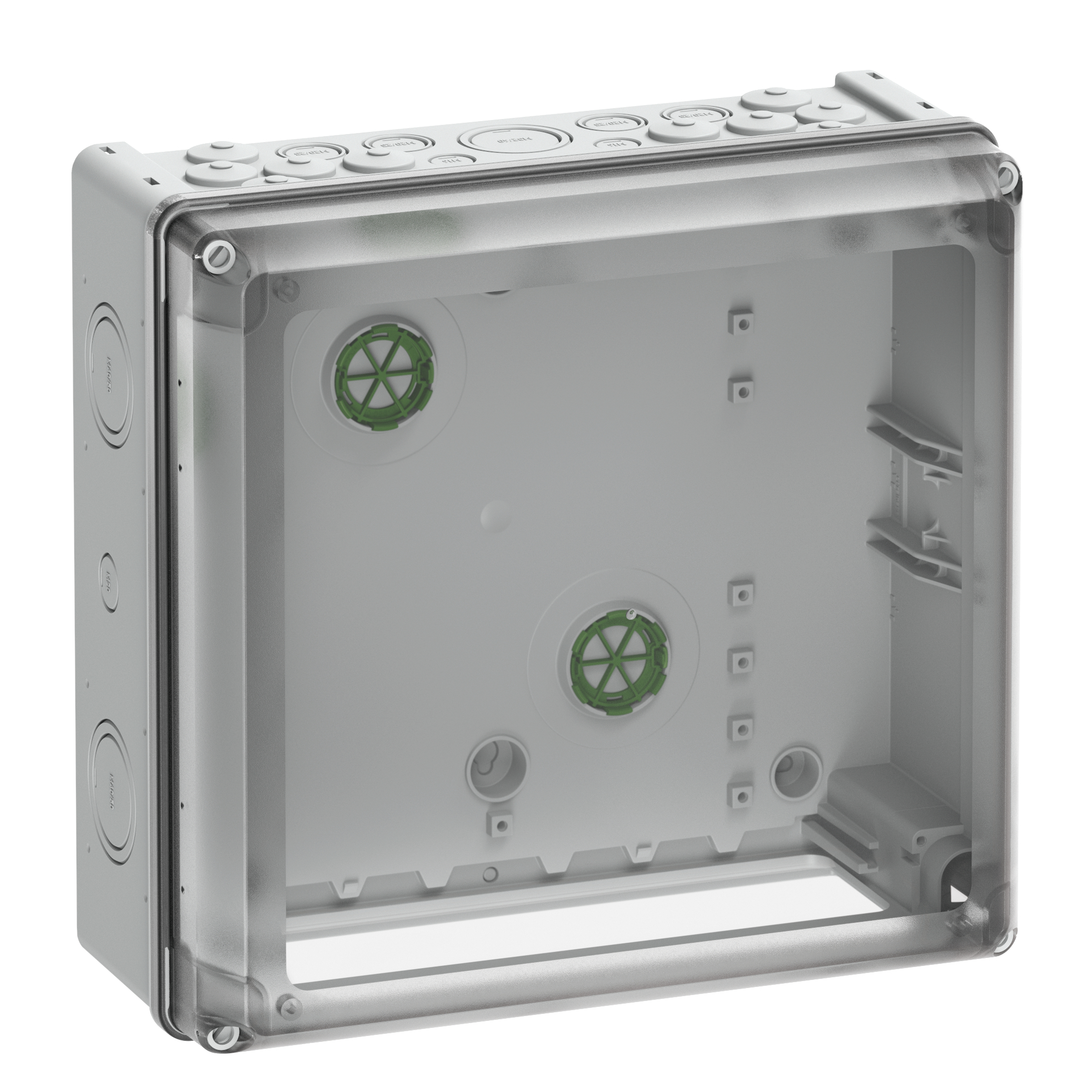

Empty enclosure, transparent, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, DLG, Halogen free
| Виробник |
|---|
Empty enclosure, protection class IP65, Plastic, certified by DLG (Ammonia resistance), Ui=1000V AC, Ui=1500V DC, for AK 14-56 small distribution boards, for individual expansion by adding standard rails or mounting plates, Box: Plastic, grey, Lid: Polycarbonate, transparent, metric knockouts on top for universal cable insertions with cable glands and/or double membrane seals, elastic entries double membrane seals M20 on top
Dimensions: 315 x 300 x 147mm
Accessories supplied: Double-membrane seals: 1x M16, 5x M20, 2x M25, 1x M32, 1x M40, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902575619
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73331101
Manufacturer type description: AK-F/DMS 14 L-t
Ключові слова: Leergehäuse, Empty enclosure, Verteiler, Distribution board, Feuchtraumverteiler, humidor distributor, REG, rail mounted, REG-Verteiler, rail mounted distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000058
