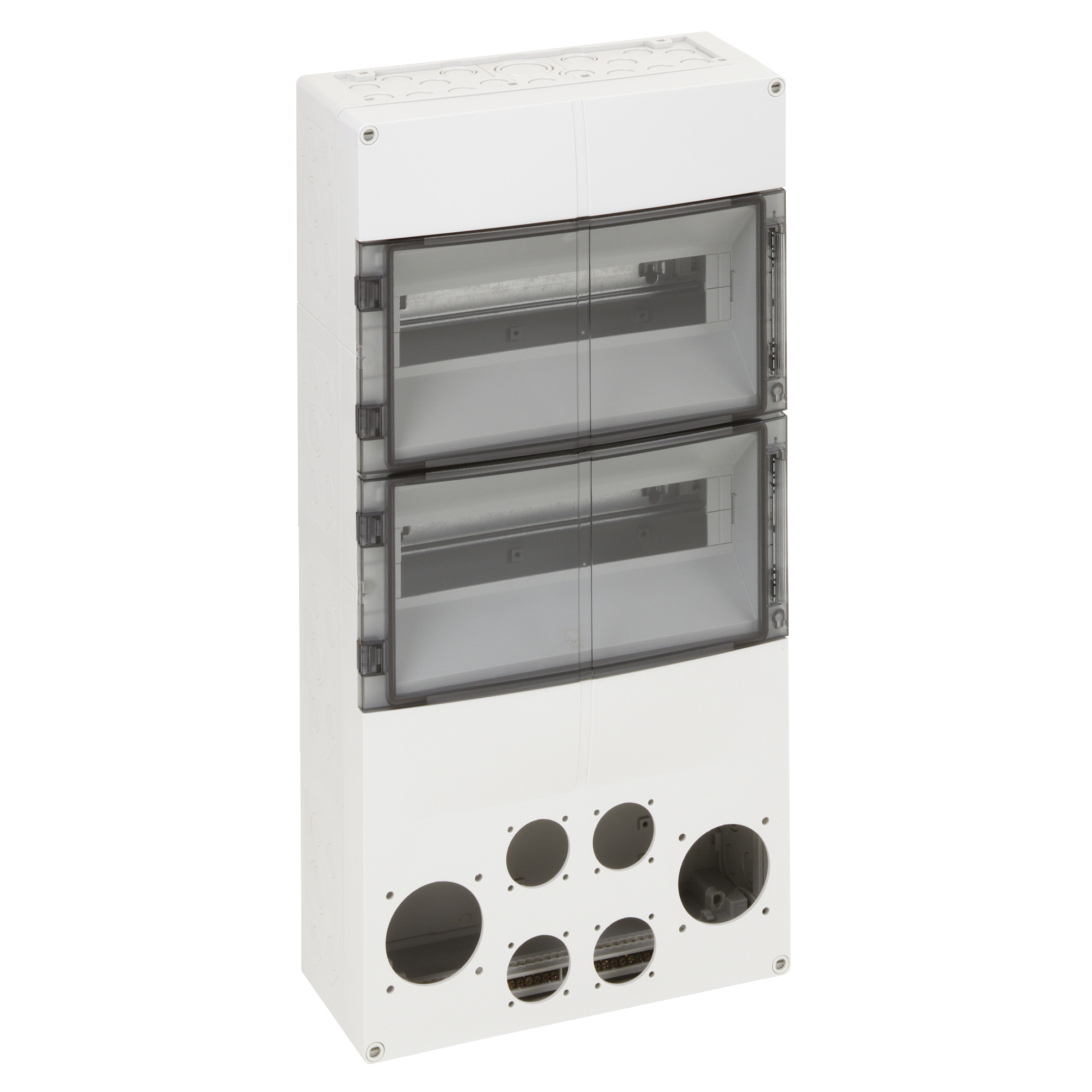

73922001 AKi 28-2L
Код товара: 90608
Ціна за запитом
Socket empty enclosure, Type of protection IP44, 28 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket empty enclosure, protection class IP44, suitable for installation of rail mounted devices and extension sockets by the customer, with PE/N terminal, adapters and screws for assembling the sockets, high mechanical impact resistance, non-sensitive to temperature, halogen-free
Cable insertions:
Top: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 16 x M20, 4 x M32/25
Right: Pre-embossing 16 x M20, 4 x M20/25, available modules: 28
Openings for sockets: 4 x hole for protective contact sockets with diameter of 44.5mm and drill hole distance for vertical/horizontal mounting of 38/38mm (on front), 2 x drill holes for CEE sockets with a diameter of 66.5mm and drill hole distance for vertical/horizontal mounting of 60/60mm (on front)
Dimensions: 300 x 600 x 142mm
Accessories supplied: Double-membrane seals: 1x M20, 1x M25, 1x M32, Attachment bushes: 1x M40, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902937592
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73922001
Manufacturer type description: AKi 28-2L
Ключові слова: Leergehäuse, Empty enclosure, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
