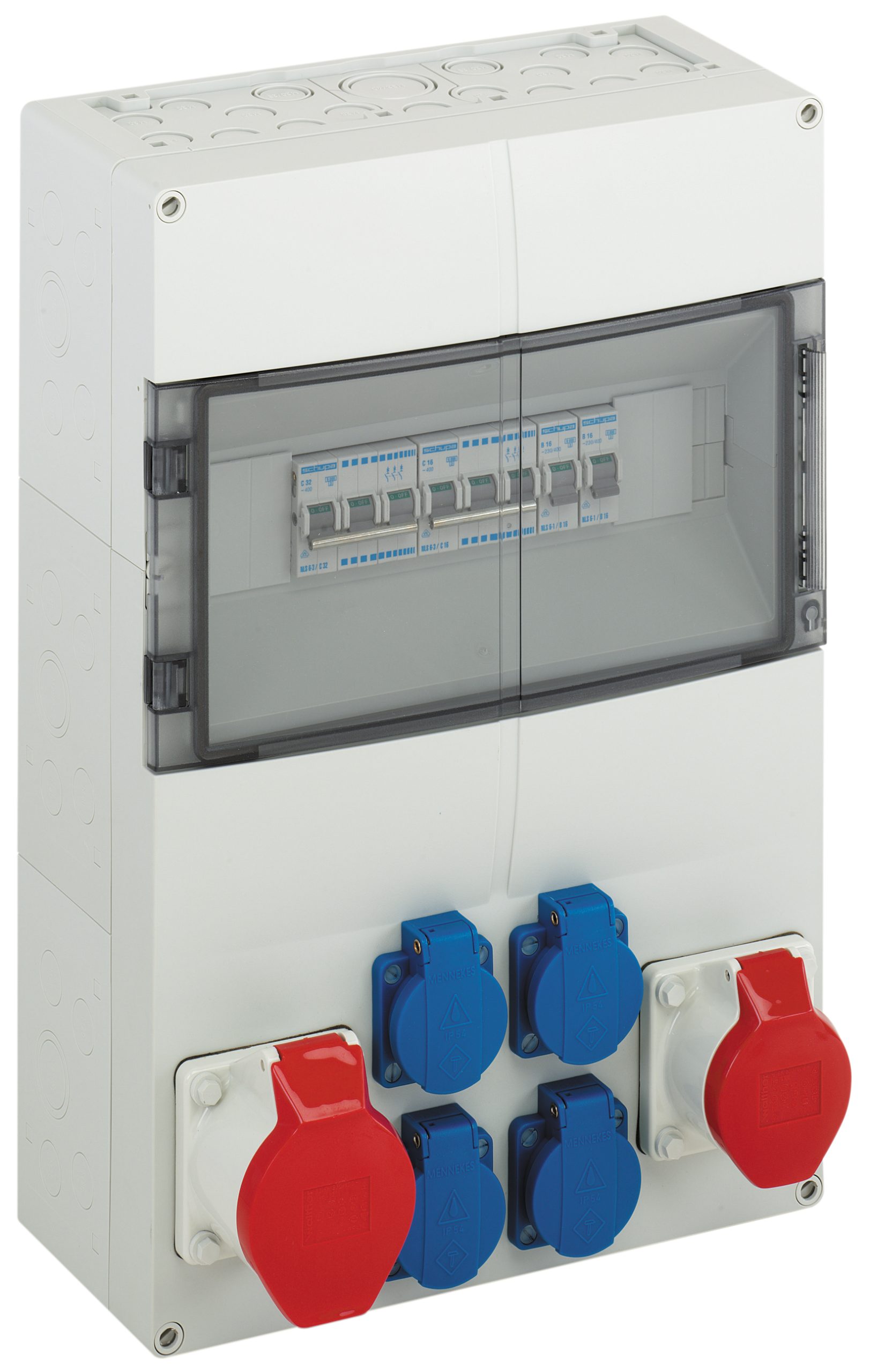

73914201 AKi 14-4M
Код товара: 90602
Ціна за запитом
Socket outlet combination, grey, Type of protection IP44, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined
Cable insertions:
Top: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 12 x M20, 3 x M25/32
Right: Pre-embossing 12 x M20, 3 x M25/32,
equipped with:
- 2 x Miniature circuit breaker B16A, 1-pin
- 1 x Miniature circuit breaker C 16 A, 3p
- 1 x Miniature circuit breaker C 32 A, 3p
- 4 x SCHUKO(R) plug socket (on front), 230V
- 1 x CEE plug socket outlet (on front) 16A, 400V
- 1 x CEE plug socket outlet (on front) 32A, 400V
Dimensions: 300 x 450 x 142mm
Accessories supplied: Double-membrane seals: 1x M20, 1x M25, 1x M32, Attachment bushes: 1x M40, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902885251
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73914201
Manufacturer type description: AKi 14-4M
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
