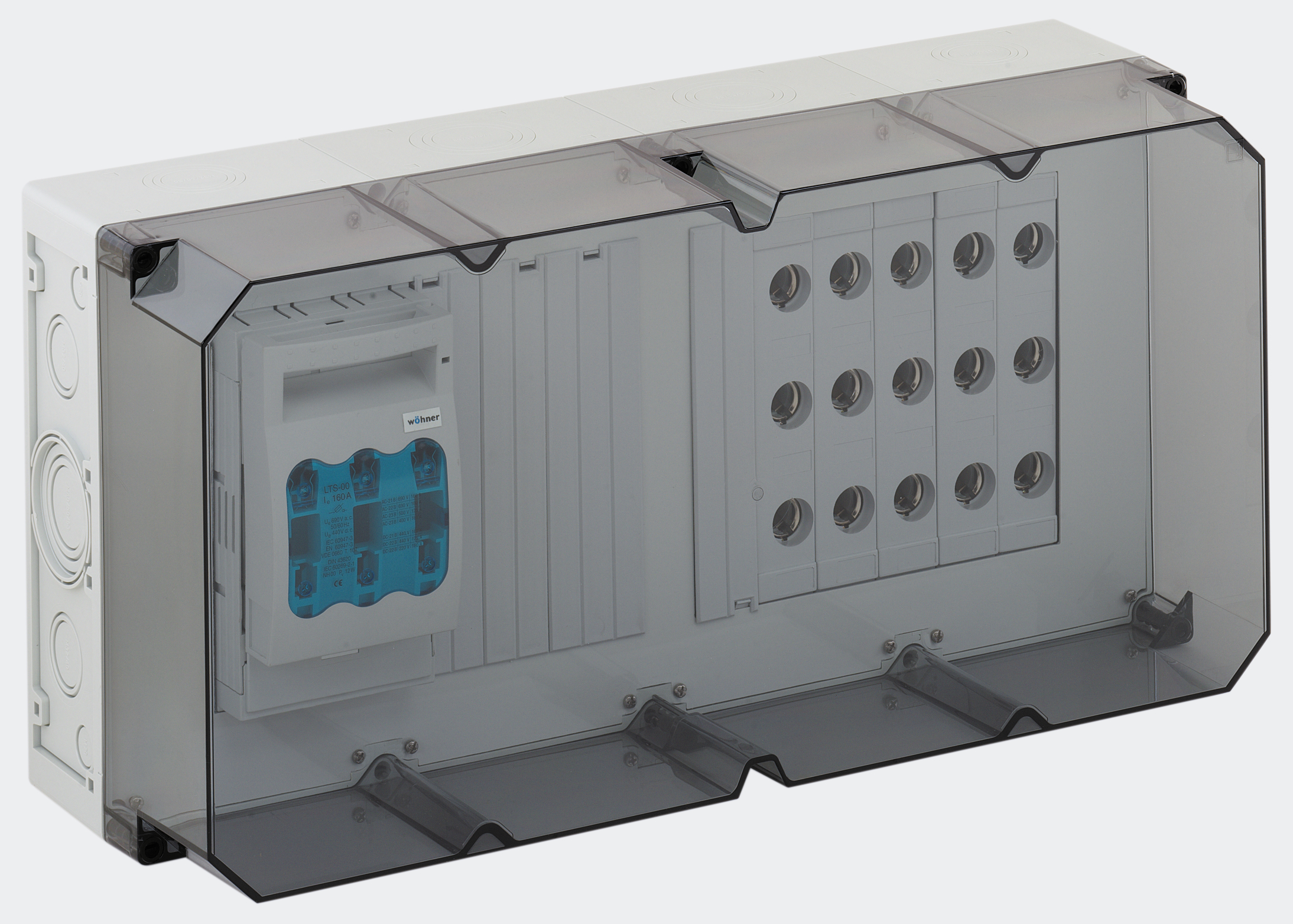

76700101 AKi-SK 451
Код товара: 90997
Ціна за запитом
Combined fuse enclosure, transparent, Type of protection IP54/IP65 , Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Combined fuse enclosure-Industrial Quality -, 1 x NH 00 fuse switch disconnector enclosure, Rated current 100 A, Clamp connection 1.5-70mm², Universal output, 5 x 3-pole D02 bus-mounting fuse base, E 18 thread, Rated current 63 A, Screw connection 1.5-25mm², on 5-pole busbar, with 5 busbar terminals 16-70mm², N terminal 4-35mm², PE terminal 4-35mm², N terminal 1.5-16mm², PE terminal 1.5-16mm², on busbar system 250 A, with transparent cover
Dimensions: 600 x 300 x 210mm
International product number (GTIN): 4013902885442
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 76700101
Manufacturer type description: AKi-SK 451
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Sicherungsverteiler, fuse distributor, Gehäuse, Enclosure, Kunststoffgehäuse, Plastic enclosure, ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
