76735201 AKi-SBZ 352-40
Код товара: 91003
Ціна за запитом

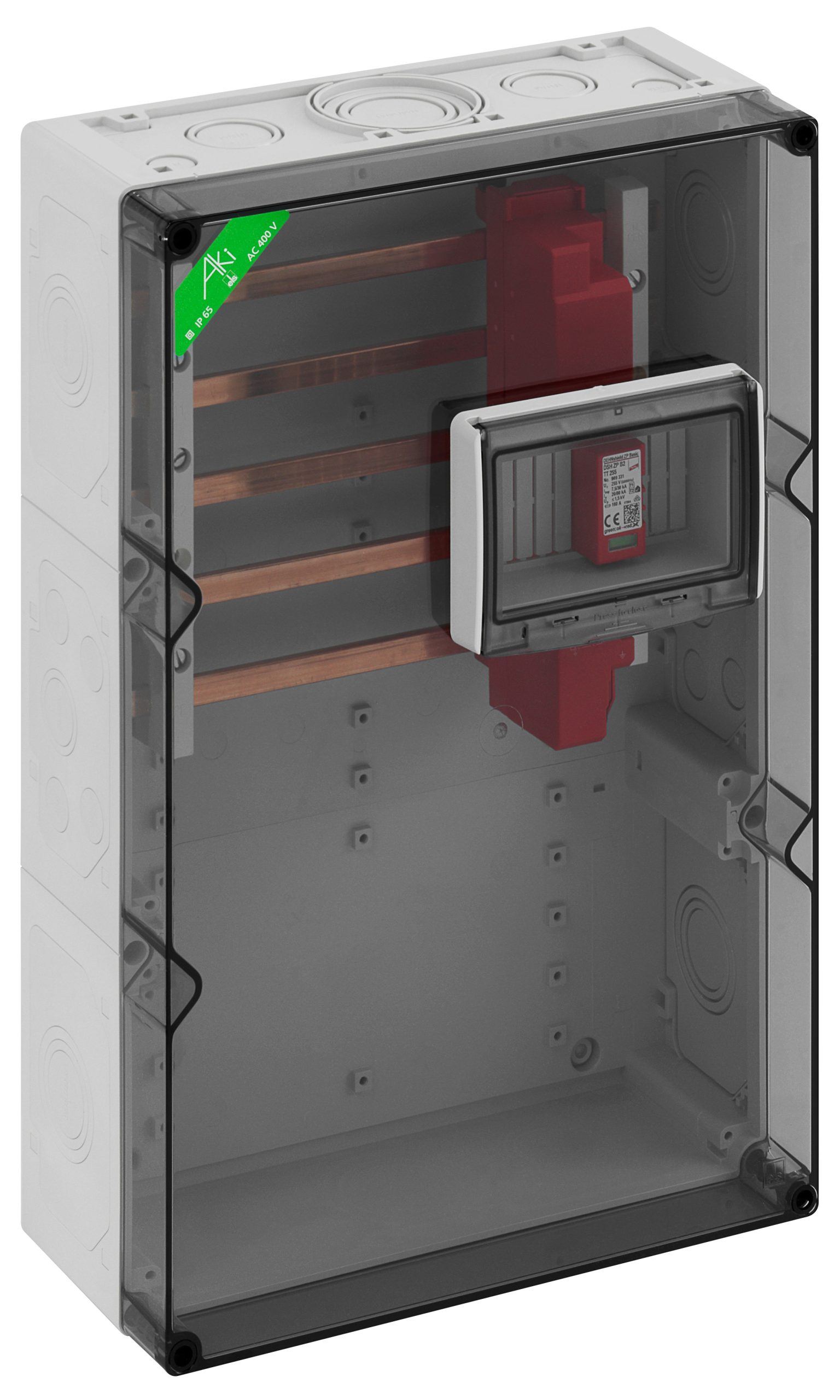

Lightning protection enclosure, transparent, Type of protection IP65, Impact strength IK07, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Lightning protection enclosure-Industrial Quality -, 5-pole, 40mm busbar distance, with copper rails, L1…L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 bus bar terminals for CU conductors 4-35mm², with 6 module width hinged window, with transparent cover, sealable, with lightning current and surge protection device1+2 according to EN 61643-11 for main power supply systems, TT/TNS network, for use in buildings with exterior lightning protection, Lightning current: (10/350) 7.5/30kA, highest continuous voltage: 255 V AC, max. per. backup fuse: 160A gG, installed ready for connection on busbar system
Dimensions: 300 x 450 x 150mm
International product number (GTIN): 4013902604876
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 76735201
Manufacturer type description: AKi-SBZ 352-40
Ключові слова: Blitzschutz, Lightning protection, Überspannungsableiter, Overvoltage conductor, Blitzstromableiter, Lightning current conductor, Blitzableiter, Lightning conductor, Blitzschutzgehäuse, Lightning protection enclosure
Special product status:
Classification system: ETIM-9.0
Group reference: EC001457
