78130201 AKi-S 302
Код товара: 91009
Ціна за запитом

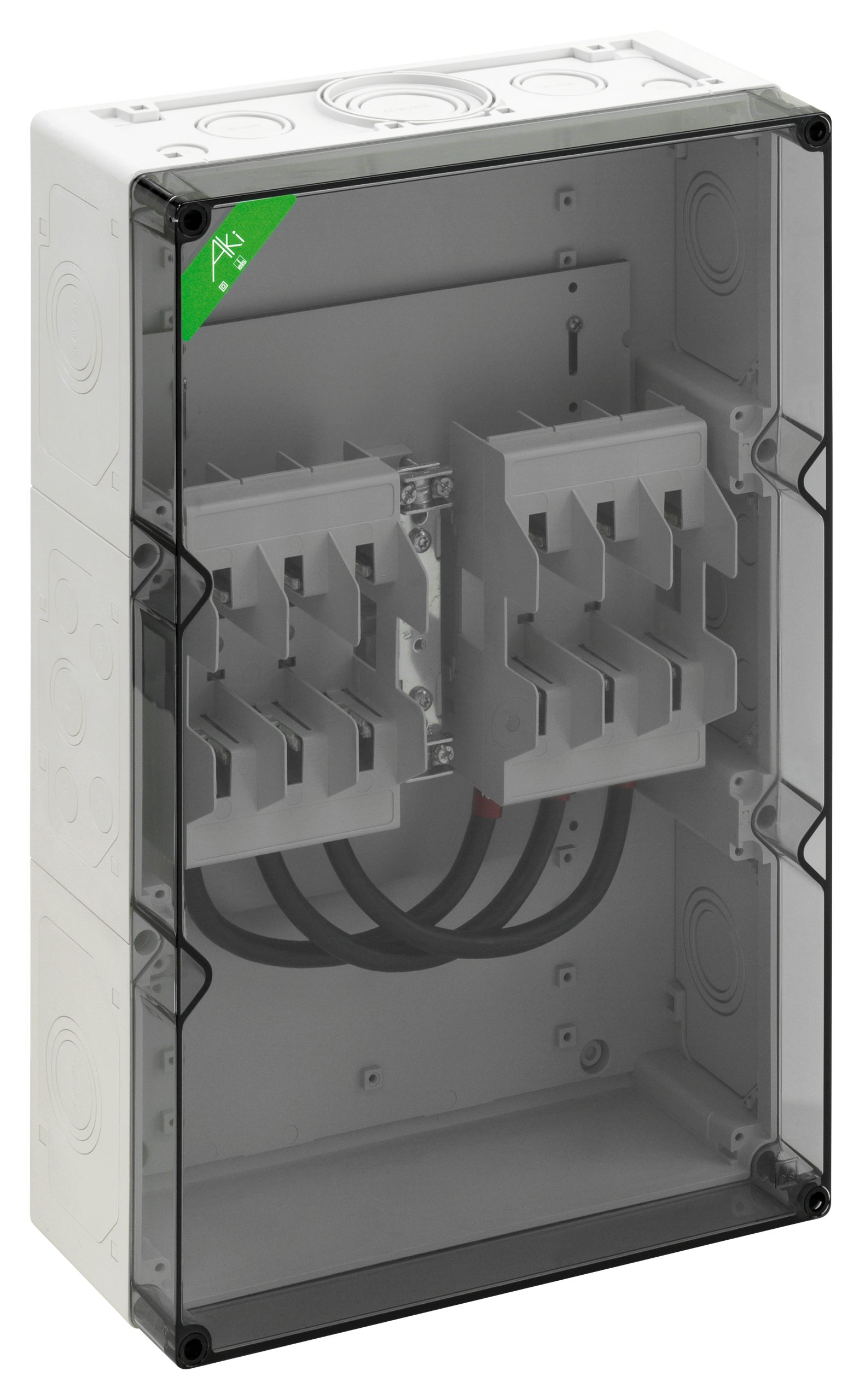

NH fuse enclosure, transparent, Type of protection IP54/IP65 , Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|
NH fuse enclosure -Industrial Quality, 2 x NH 00 fuse base, assembled on mounting plate, Rated current 100 A, Clamp connection 1.5-70mm², N terminal 2 x 50mm², 2 cable glands M40, 1 cable gland M50, with insulating seals, with transparent cover
Dimensions: 300 x 450 x 132mm
International product number (GTIN): 4013902965328
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 78130201
Manufacturer type description: AKi-S 302
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Sicherungsverteiler, fuse distributor, Gehäuse, Enclosure, Kunststoffgehäuse, Plastic enclosure, NH-Sicherungskasten, NH fuse boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC000100
