81012001 Abox 100-10²/w
Код товара: 91384
Ціна за запитом

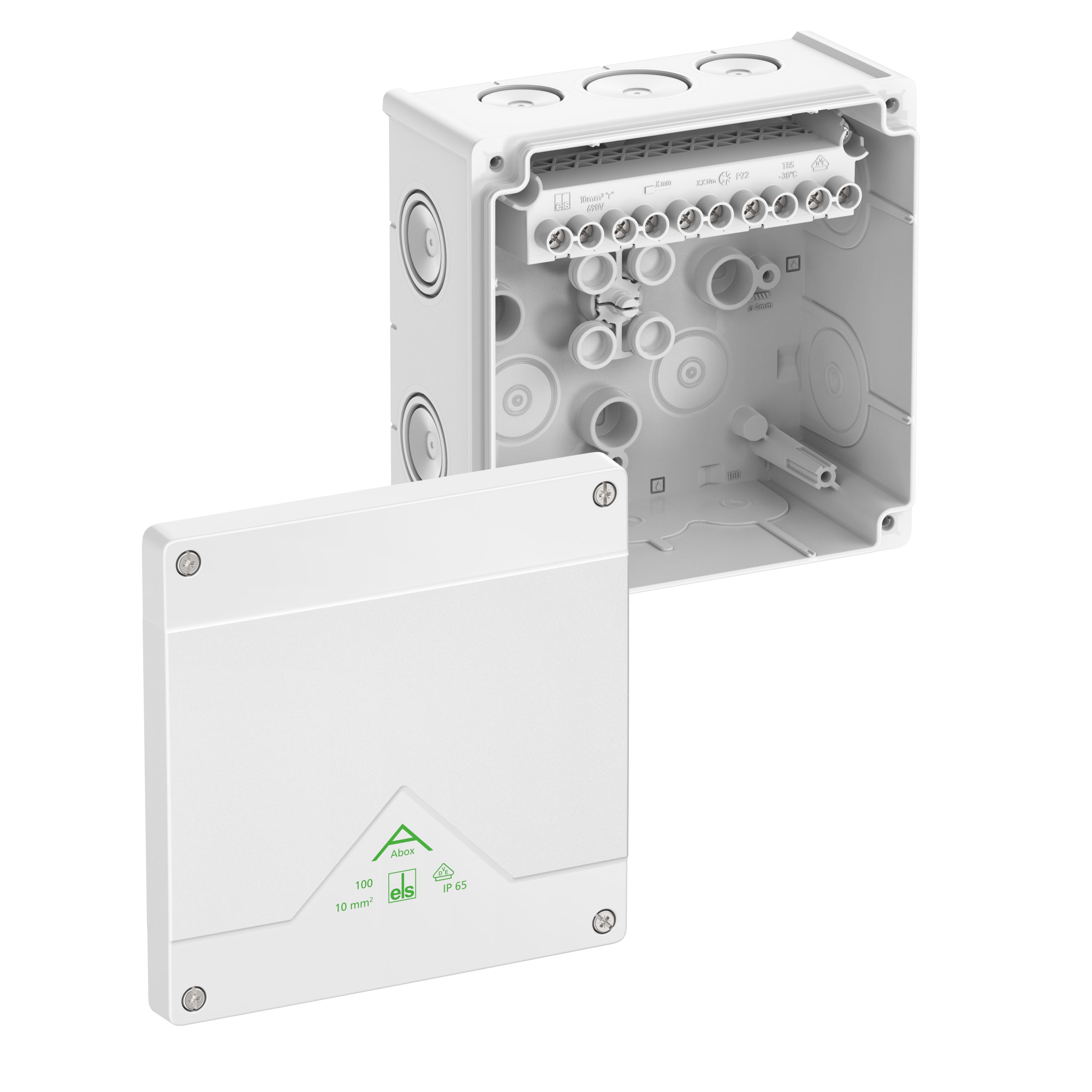

Junction box, Type of protection IP66, max. 10², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 10mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8-28mm, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations, white, Ui=690 V AC, In=57 A, with raised screw terminal block, 5-pole- 10mm², clampable cross-sections per pole: 4 x 2.5mm², 4 x 4mm², 4 x 6mm², 4 x 10mm² rigid Cu/flexible with wire-end ferrule
Dimensions: 152 x 152 x 80mm
International product number (GTIN): 4013902660575
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 81012001
Manufacturer type description: Abox 100-10²/w
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
