80444001 Abox SL-4²
Код товара: 91287
Ціна за запитом
Junction box, Type of protection IP66, max. 4², Impact strength IK07, Protection class II, Ui 450V AC, Ui 450V DC, DLG, VDE, Halogen free
| Виробник |
|---|

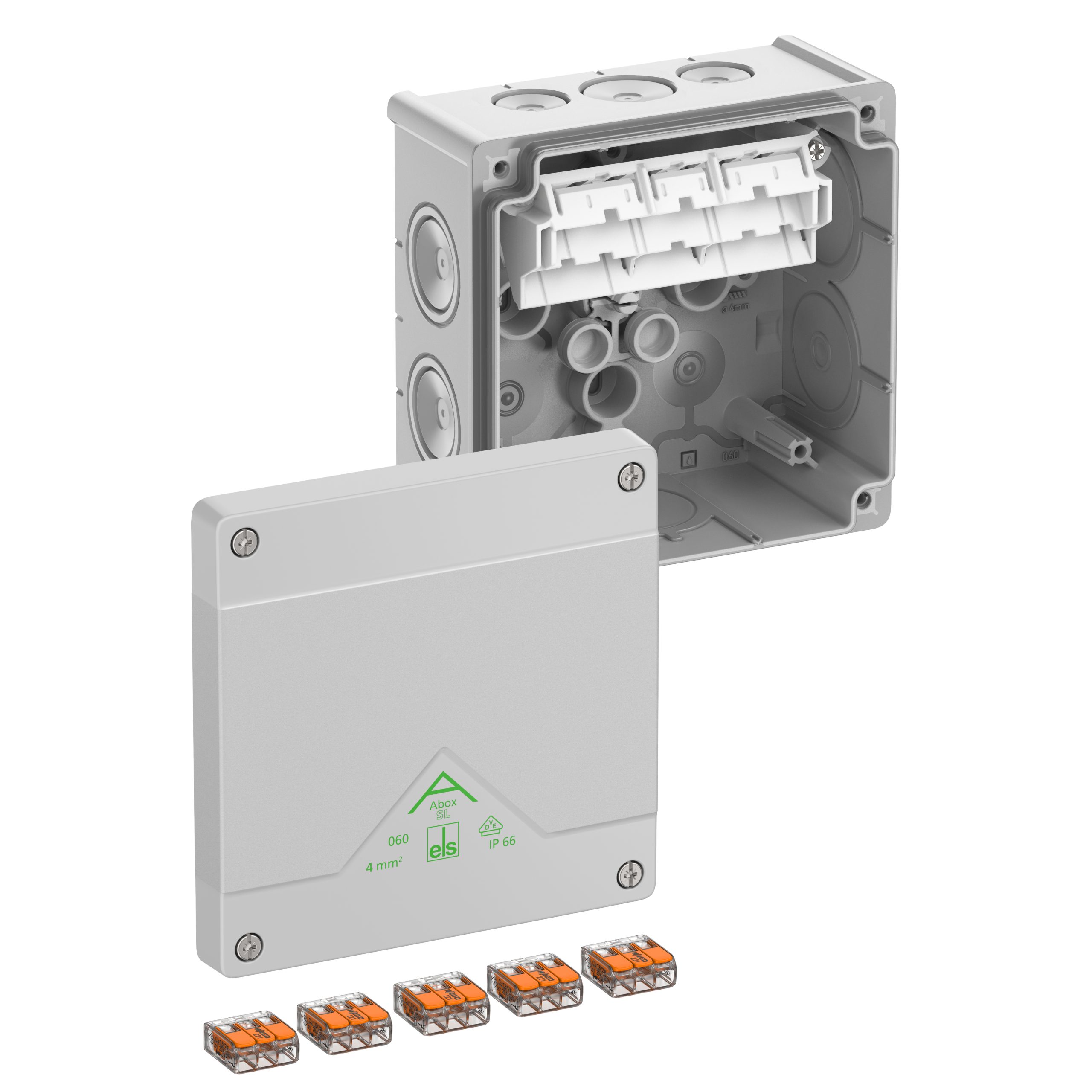

Junction box, protection class IP66, nominal cross-section 4mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 4-28mm, (2 rear, 8 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations, grey, In=32 A, with 5 raised, screwless 3-wire terminal blocks, Wago 221-413-4mm², clampable cross-sections per pole: 3 x 0.2 to 4mm² rigid Cu and 3 x 0.14 to 4mm² flexible Cu
Dimensions: 127 x 127 x 70mm
International product number (GTIN): 4013902661329
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80444001
Manufacturer type description: Abox SL-4²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
