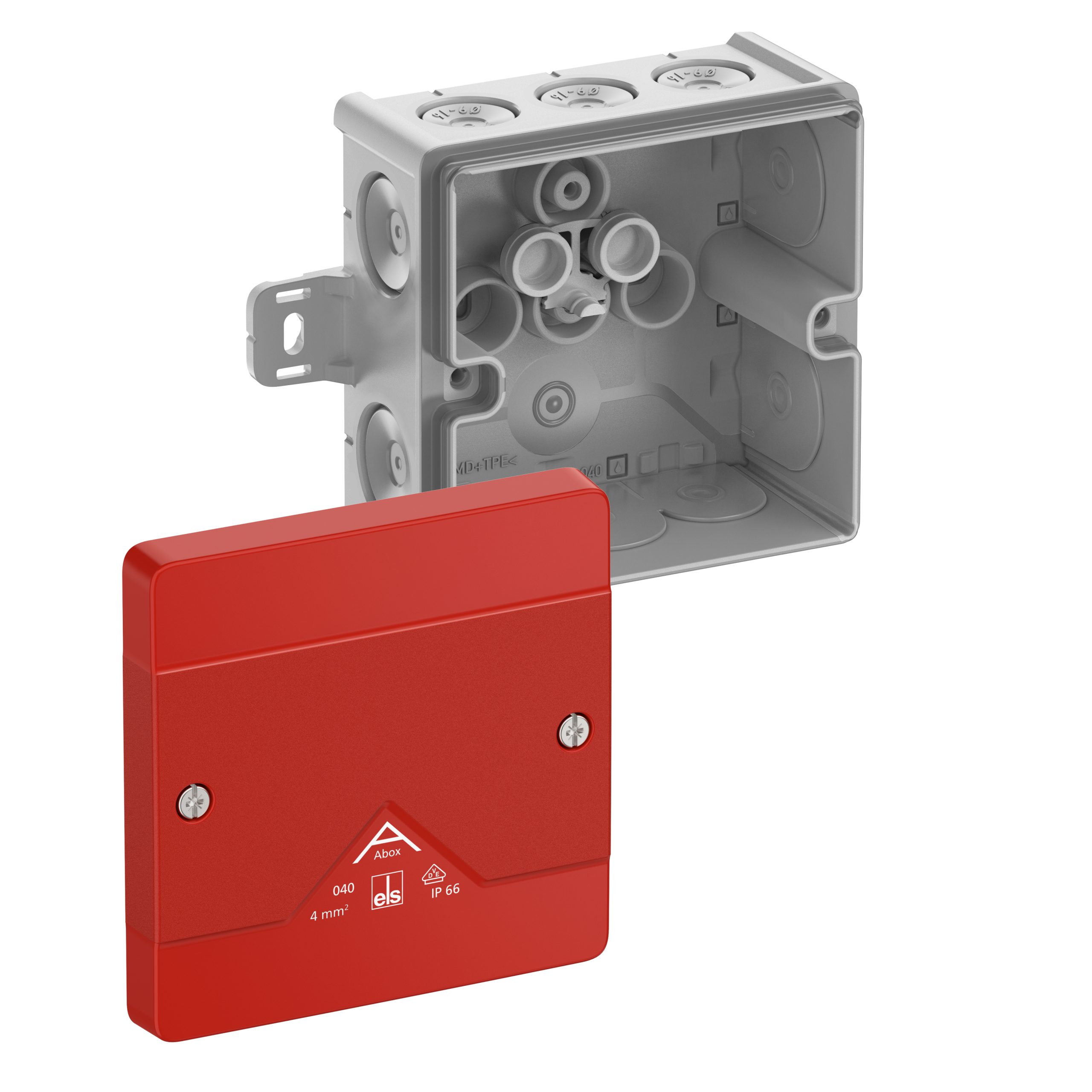

80470101 Abox 040 AB-L/SB
Код товара: 91299
Ціна за запитом
Junction box, Type of protection IP66, max. 4², Impact strength IK07, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 4mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25, sealing range 4-21mm, (1 rear, 10 side), external fixing lugs, for standard indoor and protected outdoor installations, grey, Ui=1000 V AC, with red cover, without terminals, for identification of safety lighting circuits
Dimensions: 102 x 102 x 57mm
International product number (GTIN): 4013902661176
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80470101
Manufacturer type description: Abox 040 AB-L/SB
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
