80612001 Abox 060-6²/w
Код товара: 91321
Ціна за запитом

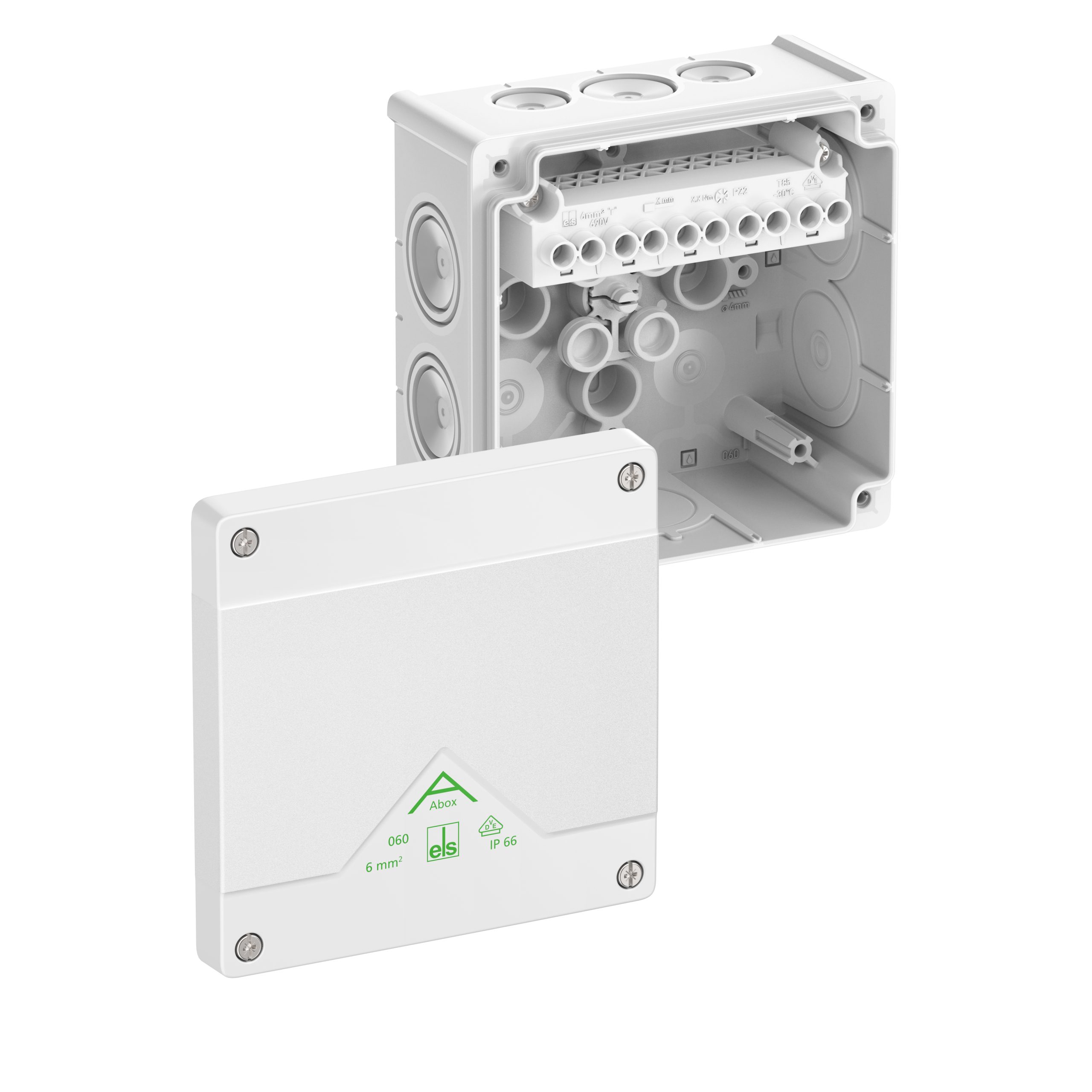

Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 6mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 4-28mm, (2 rear, 8 side), internal fixing points, for standard indoor and protected outdoor installations, white, Ui=690 V AC, In=41 A, with raised screw terminal block, 5-pole-6mm², clampable cross-sections per pole: 4 x 1.5mm², 4 x 2.5mm², 4 x 4mm², 4 x 6mm² rigid Cu/flexible with wire-end ferrule
Dimensions: 127 x 127 x 70mm
International product number (GTIN): 4013902660964
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80612001
Manufacturer type description: Abox 060-6²/w
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
