86235601 WKE 400 7 x 10² 2D0
Код товара: 91531
Ціна за запитом
Junction box, Type of protection IP66, Impact strength IK08, Protection class II, Ui 450V AC, Rated insulation voltage 450V DC, VDE, Halogen free
| Виробник |
|---|

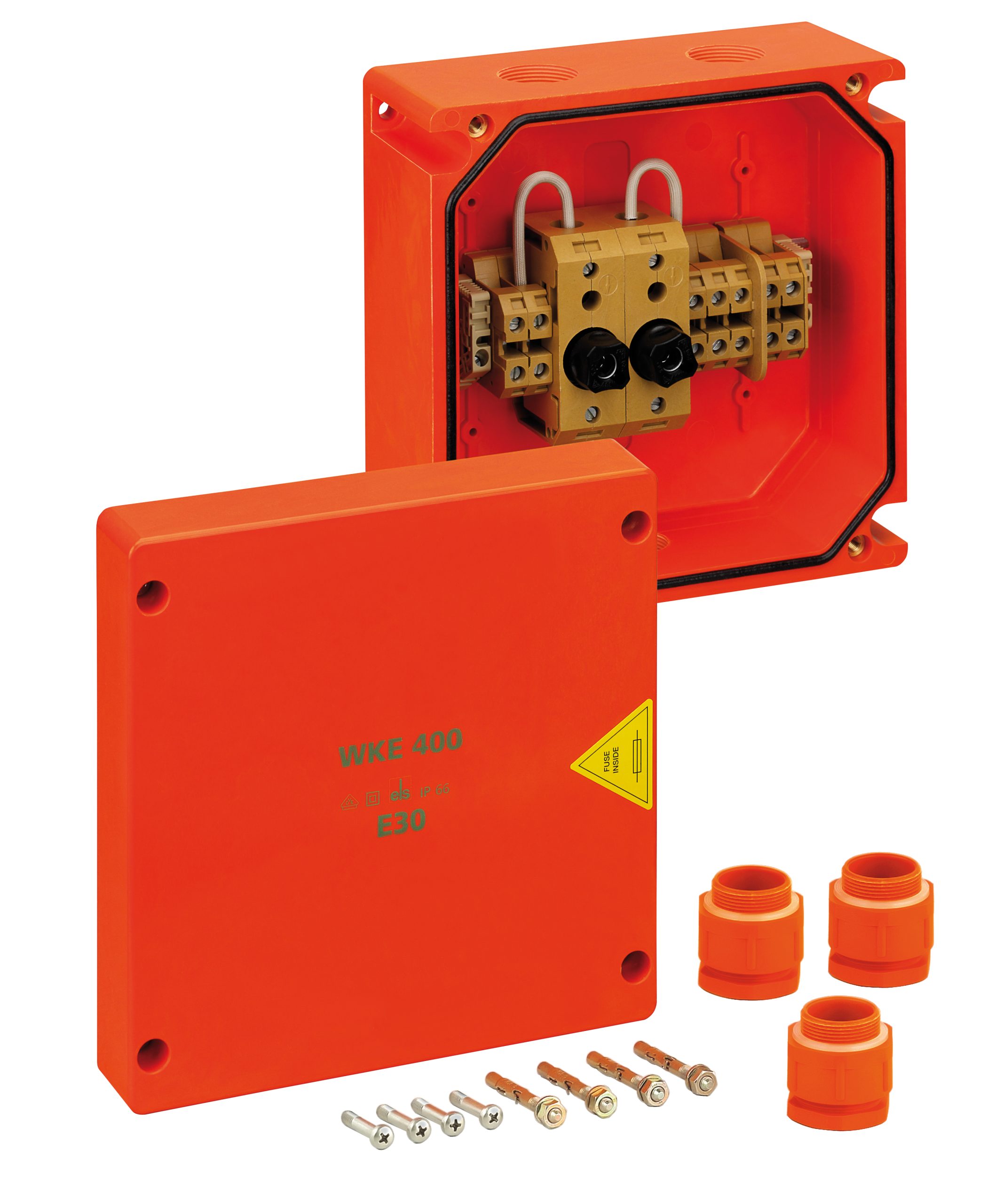

Junction box, protection class IP66, Ui=450 V AC, certified by VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, enclosure and terminal block are made from halogen-free special thermosetting plastic, orange, Junction box with fused branch, connection box 3-pole, junction box 3-pole, number of clampable wires per pole 4 x 1.5-10mm², clamping capacity per terminal point 1 x 1.5-10mm², fuse holder DO2, max. 6 A
Dimensions: 200 x 200 x 110mm
Accessories supplied: 2 off cable glands M32 (17-26mm), 1 off cable gland M25 (9-19mm), wall plug set ø 6mm
International product number (GTIN): 4013902574834
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 86235601
Manufacturer type description: WKE 400 7 x 10² 2D0
Ключові слова: Klemmenkasten, Terminal box, Sicherungen, Fuses, Verbindungsdose, Junction box, Kabelabzweigkasten, Cable junction box, Kabelabzweigdose, junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
