81644001 Abox SL-16²
Код товара: 91441
Ціна за запитом

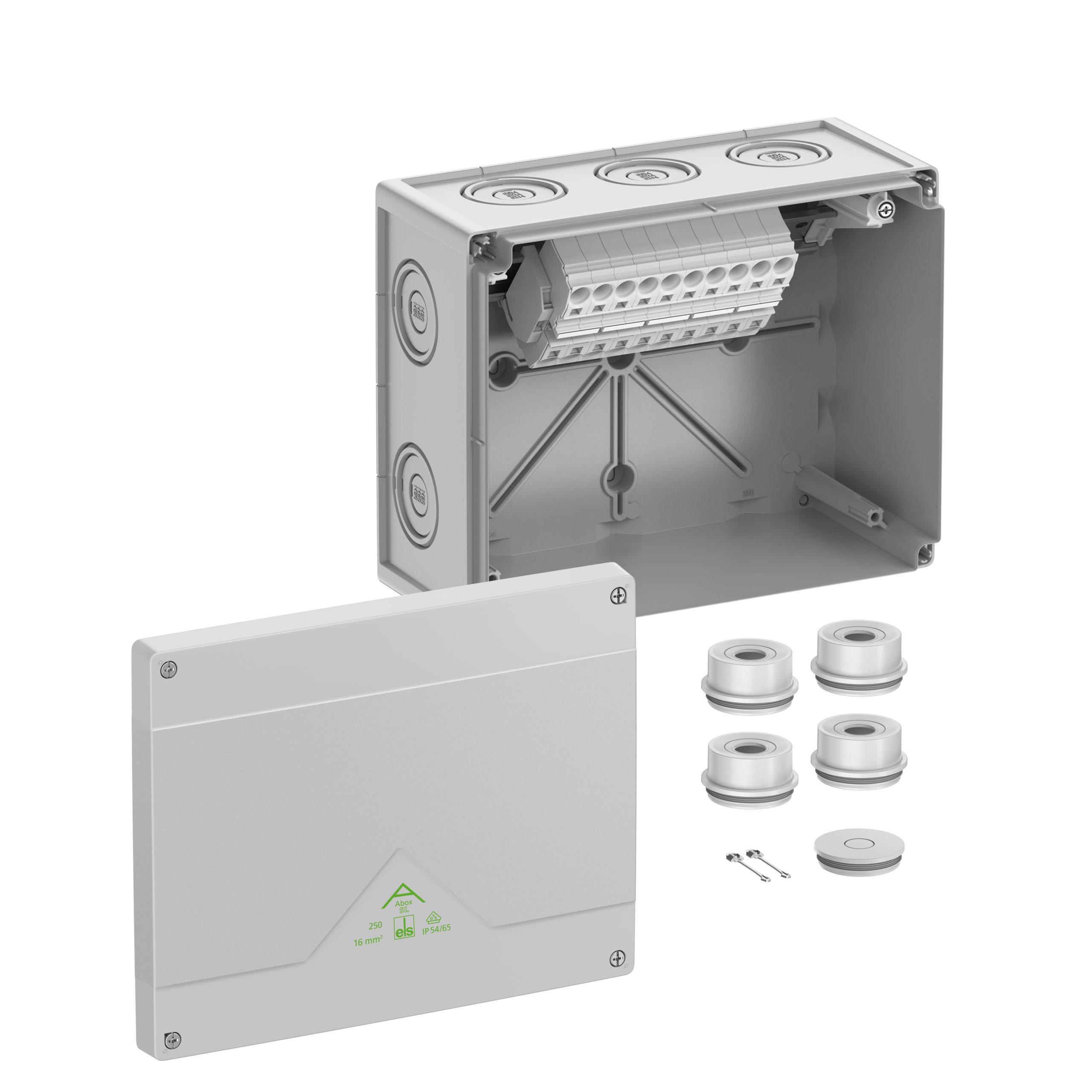

Junction box, Type of protection IP55/IP66, max. 16², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP55/IP66, nominal cross-section 16mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25/M32/M40/M50, (4 rear, 10 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations, grey, In=76 A, with raised screwless terminal block Wago 2016-1201, 5-pole, max. nominal cross-section in accordance with DIN EN 60998:16mm², clampable cross-section per pole: 4 x 0.5 to 16mm² rigid Cu and 4 x 0.5 to 25mm² flexible Cu
Dimensions: 252 x 202 x 120mm
Accessories supplied: 4 attachment bushes IP55 M40 sealing range 17-30mm, 1 sealing plug IP55 M40, cover retainer
International product number (GTIN): 4013902660339
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 81644001
Manufacturer type description: Abox SL-16²
Ключові слова: Schraubenlos, Screwless, TopJob S, TopJob S, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
