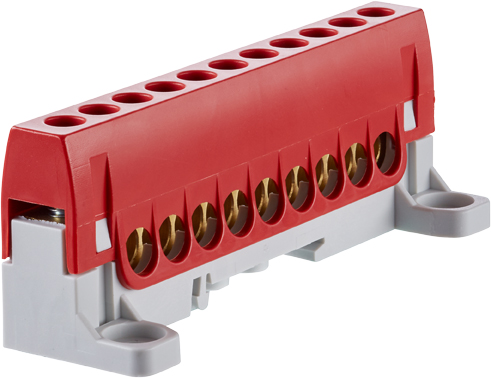

870GFS9RD Neutral and earthing terminal touch safe red
Код товара: 136677
Ціна за запитом
The finger-safe neutral and earthing terminal is for mounting on DIN rail or directly on the mounting plate. On the red terminal 9 conductors with a cross-section of 1,5 – 25 sqmm for single-/multi-wires or 1,5 – 16 sqmm for conductors with sleeves can be attached. For current up to 160A and a voltage of 600V. , eng
| Виробник |
|---|
The finger-safe neutral and earthing terminal is for mounting on DIN rail or directly on the mounting plate. On the red terminal 9 conductors with a cross-section of 1,5 – 25 sqmm for single-/multi-wires or 1,5 – 16 sqmm for conductors with sleeves can be attached. For current up to 160A and a voltage of 600V. , eng
International product number (GTIN): 4018841003971
Universal product code (UPC):
Alternative product number: K00 0870GFS9RD
Product ID of the manufacturer: 870GFS9RD
Manufacturer type description: K00 0870GFS9RD
Ключові слова: Neutral or earthed terminal block neutral and earthing terminal touch safe phase terminal touch safe red neutral and earthing terminal for DIN rails neutral and earthing terminal for DIN rail FTG connecting terminal ftg
Special product status:
Classification system: ETIM-7.0
Group reference: EC001284
