81180701 Abox SLK 4²
Код товара: 91417
Ціна за запитом

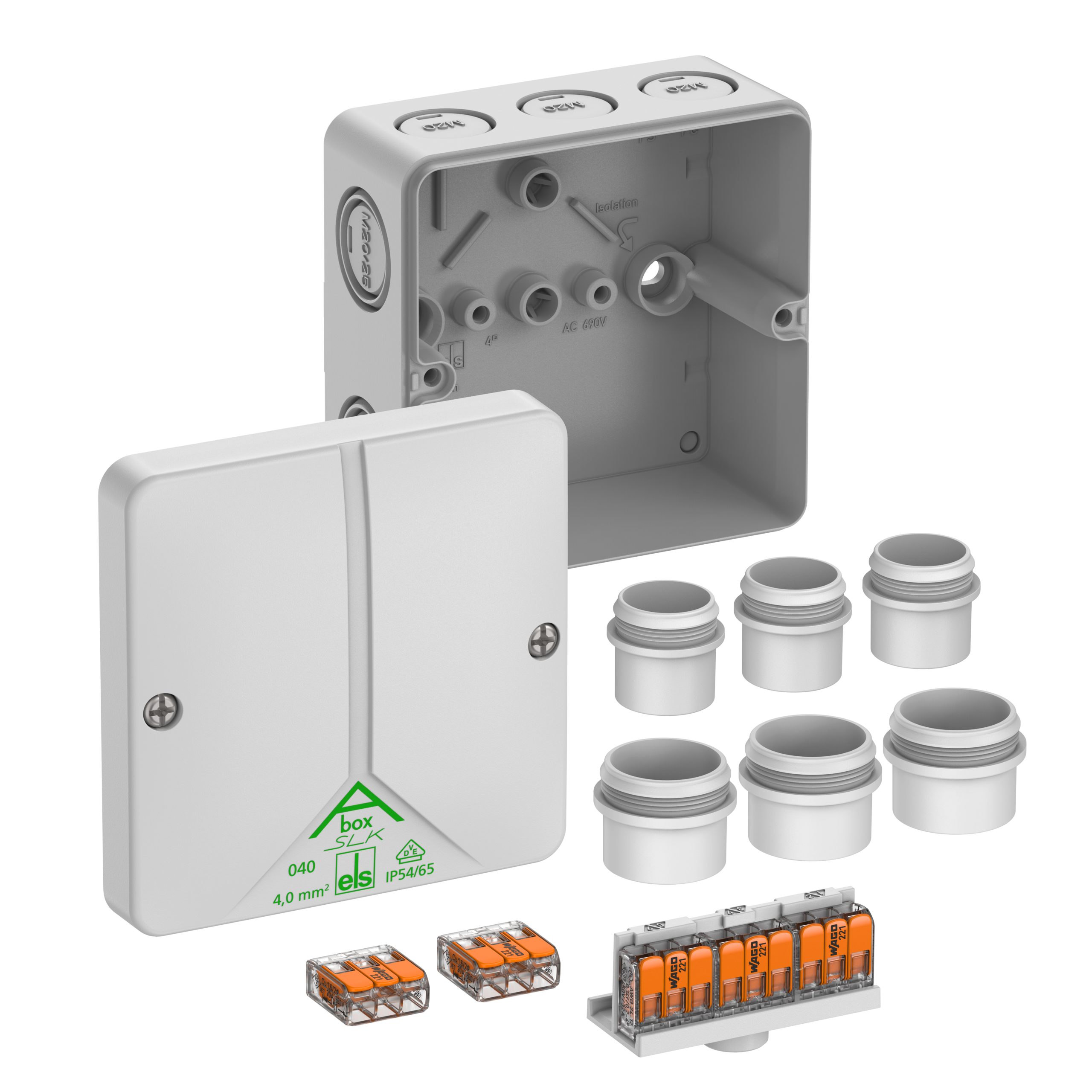

Junction box, Type of protection IP54/IP65 , Max. conductor cross section 4², Impact strength IK07, Protection class II, Ui 450V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP54/IP65, nominal cross-section 4mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (1 rear, 8 side), internal fixing points, with screwless terminals for standard indoor installations, grey, with 5 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413-4mm², cross-sections that can be clamped per pole: 3 x 0.2 to 4mm² rigid Cu and 3 x 0.14 to 4mm² flexible Cu
Dimensions: 94 x 94 x 57mm
Accessories supplied: 3 attachment bushes IP54 M20 sealing range 8-13.5mm, 3 attachment bushes IP54 M25 sealing range 9-18.5mm
International product number (GTIN): 4013902669011
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 81180701
Manufacturer type description: Abox SLK 4²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Klemmenkasten, Terminal box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
