80870701 Abox m 025 AB SB-L
Код товара: 91375
Ціна за запитом

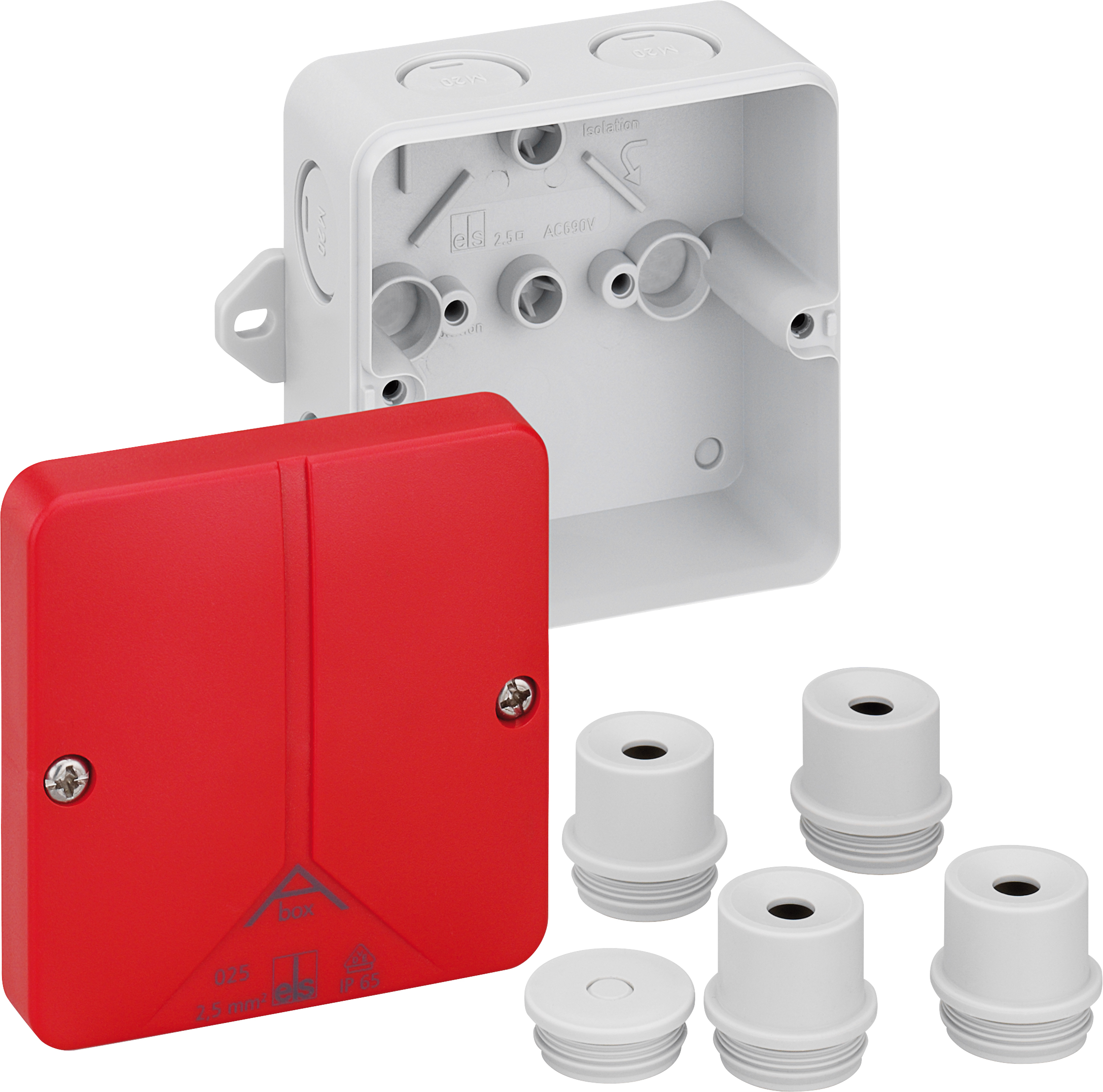

Junction box, Type of protection IP54/IP65 , max. 2,5², Impact strength IK07, Protection class II, Ui 690V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP54/IP65, nominal cross-section 2.5mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20, (1 rear, 7 side), external fixing lugs, for standard indoor installations, grey, with red cover, without terminals, for identifying circuits for safety lighting
Dimensions: 82 x 82 x 52mm
Accessories supplied: 4 Attachment bushes IP54 M20 sealing range 8-13,5mm, 1 sealing plugs M20
International product number (GTIN): 4013902402847
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80870701
Manufacturer type description: Abox m 025 AB SB-L
Ключові слова: abx, abx, aox, aox, Klemmenkasten, Terminal box, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
