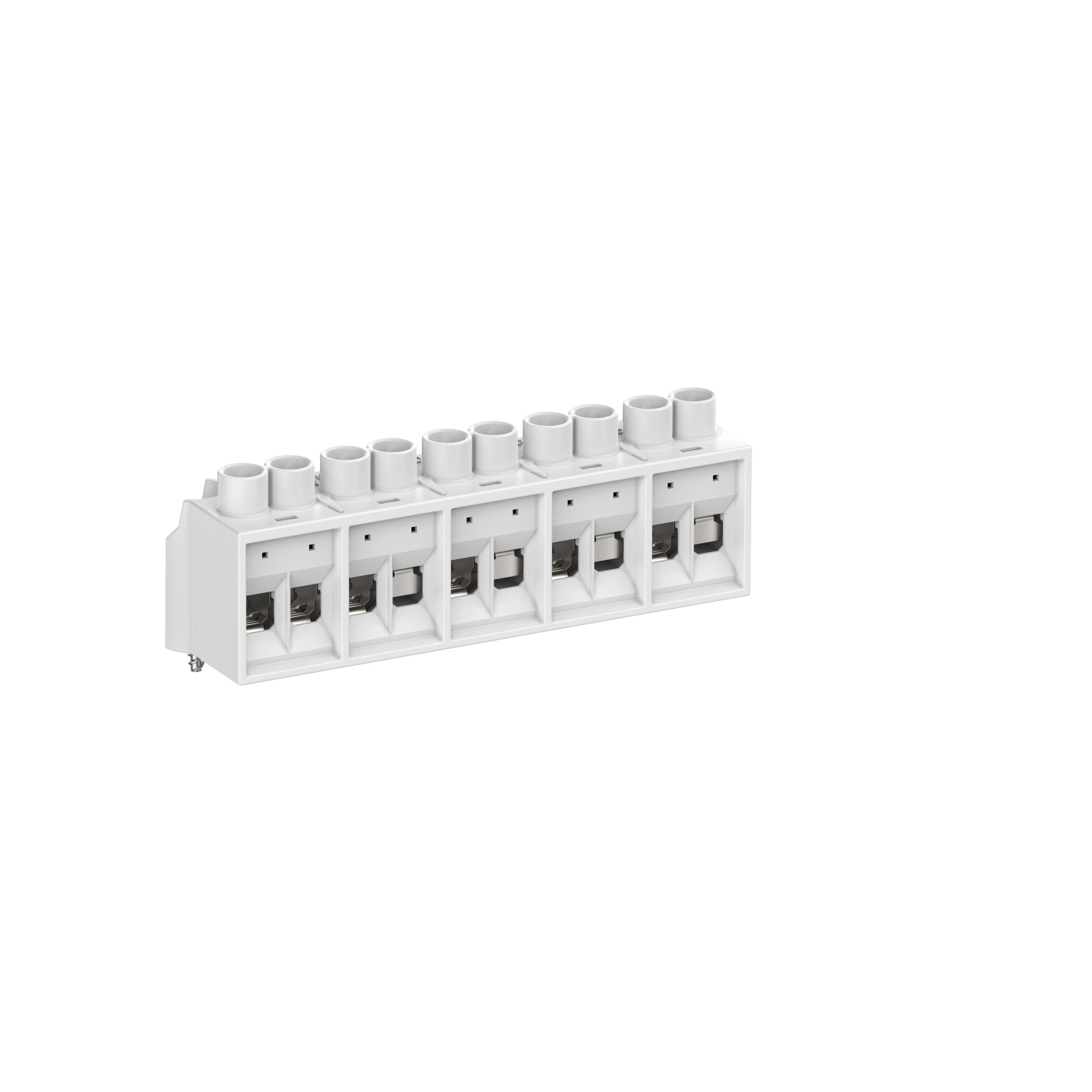

89640601 Abox 060 KLS-6²
Код товара: 91768
Ціна за запитом
Terminal block, grey, Rated insulation voltage 690V AC, Rated insulation voltage 690V DC
| Виробник |
|---|
Connecting terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For assembly in junction boxes Abox/Abox Pro from 2024 onwards., Screw terminal block for Abox/Abox Pro 060, 5-pole-6mm², In = 41 A, clampable cross-sections per pole: 4 x 1.5mm², 4 x 2.5mm², 4 x 4mm², 4 x 6mm² Cu rigid/flexible with wire-end ferrule
Dimensions: 23 x 98 x 32mm
International product number (GTIN): 4013902677276
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 89640601
Manufacturer type description: Abox 060 KLS-6²
Ключові слова: Abox 2024, Abox 2024, Abzweigklemme, branch terminal, Klemme, Terminal, Verbindungsklemme, Connecting terminal, Klemmen, Terminals
Special product status:
Classification system: ETIM-9.0
Group reference: EC001284
