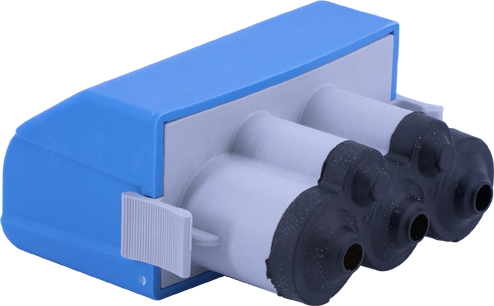

KA503SPN LPDB connection terminal, IP44, 50sqmm, blue
Код товара: 137344
Ціна за запитом
The splash-proof, blue connection terminal LPDB is often used for ring lines for the transmission of currents in street lights, the power supply on campsites or at ship piers. The terminals for DIN rail mounting are also compatible with the KAH accessory, the DIN rail adapter. The terminal offers space for the following conductor cross-sections with screw terminals: solid / stranded: 3 x 6 – 50 mm² and 2 x 1.5 – 10 mm²; with wire end ferrule: 3 x 6 – 35 mm² and 2 x 1.5 – 6 mm²; I: 160A, 125A AL; U: 690V AC; IP: 23: 6-35 mm²; IP44
| Виробник |
|---|
The splash-proof, blue connection terminal LPDB is often used for ring lines for the transmission of currents in street lights, the power supply on campsites or at ship piers. The terminals for DIN rail mounting are also compatible with the KAH accessory, the DIN rail adapter. The terminal offers space for the following conductor cross-sections with screw terminals: solid / stranded: 3 x 6 – 50 mm² and 2 x 1.5 – 10 mm²; with wire end ferrule: 3 x 6 – 35 mm² and 2 x 1.5 – 6 mm²; I: 160A, 125A AL; U: 690V AC; IP: 23: 6-35 mm²; IP44
International product number (GTIN): 4018841027496
Universal product code (UPC):
Alternative product number: KA503SPN
Product ID of the manufacturer: K00 KA503SPN
Manufacturer type description: K00 KA503SPN
Ключові слова: LPDB Klemme Ringverbindungsklemme Verbindungsklemme Klemmenblock Kleinverteiler Verteilerblock Verteilerklemme
Special product status:
Classification system: ETIM-7.0
Group reference: EC001894
