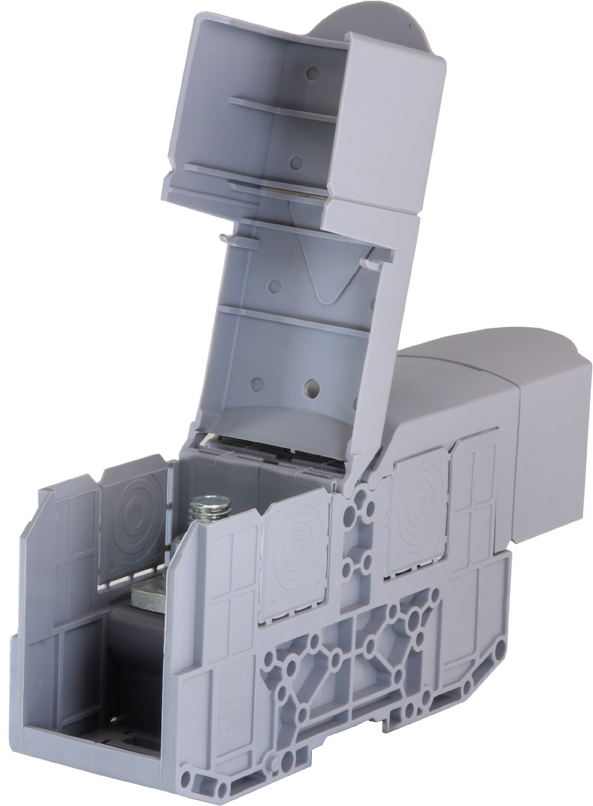

STI185G Stud terminal 185sqmm grey / M12 / 353A / 19Nm

To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M12 with a thightening torque of 19Nm. , eng
