Домофони
Мовний модуль System 106, сталь
System 106 intercom module stainless steel - The speakerphone function enables communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except door station module) are supplied with power via the intercom module.
Мовний модуль System 106, сталь V4A
System 106 intercom module stainless steel V4A - The speakerphone function enables communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except door station module) are supplied with power via the intercom module.

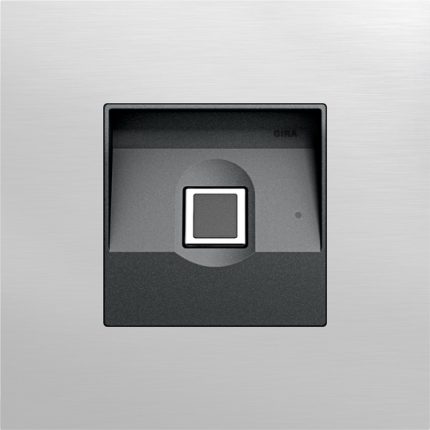

Модуль биометричного замка System 106, алюміній
System 106 Keyless In fingerprint module aluminium - Fingerprint module as a professional, biometric access control system based on next-generation surface scanning technology. - Start-up and administration via app. - Use as a stand-alone device with Gira DCS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. - Scanning the deepest layer of skin using high frequency. High detection rate and security against tampering. - An evaluation of the unique characteristic features of the living human finger. - Up to 99 fingers can be managed by the fingerprint reader. - Reliable recognition of fingers with slightly damaged skin from gardening, for example (damage only to the top layer of skin). - Data protection through the use of encryption. - Fast response time from application of finger to approval:approx. 1 s for up to 30 stored fingers,approx. 3 s for up to 99 stored fingers. - Night design of the fingerprint surface for orientation using white LED illumination. - 360° fingerprint readability. - 3-colour LED status display for visual signalling when programming and during operation. - Master PIN number provided on included sealed safety card if Administrator finger is no longer available. The device can be reset at the factory with the accompanying safety card. - Acknowledgement buzzer for acoustic signalling for user or installer. - Warning tone in case of unauthorised removal of the fingerprint top unit, i.e. tamper detection. Tampering circuit with switching actuator in the Gira door communication system. Inputs and outputs: - Connector strip connection cable for Gira door communication system. Children’s fingers can usually only be reliably recognised from 6 years of age.
Модуль биометричного замка System 106, білий матовий (лак)
System 106 Keyless In fingerprint module traffic white (laquered) - Fingerprint module as a professional, biometric access control system based on next-generation surface scanning technology. - Start-up and administration via app. - Use as a stand-alone device with Gira DCS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. - Scanning the deepest layer of skin using high frequency. High detection rate and security against tampering. - An evaluation of the unique characteristic features of the living human finger. - Up to 99 fingers can be managed by the fingerprint reader. - Reliable recognition of fingers with slightly damaged skin from gardening, for example (damage only to the top layer of skin). - Data protection through the use of encryption. - Fast response time from application of finger to approval:approx. 1 s for up to 30 stored fingers,approx. 3 s for up to 99 stored fingers. - Night design of the fingerprint surface for orientation using white LED illumination. - 360° fingerprint readability. - 3-colour LED status display for visual signalling when programming and during operation. - Master PIN number provided on included sealed safety card if Administrator finger is no longer available. The device can be reset at the factory with the accompanying safety card. - Acknowledgement buzzer for acoustic signalling for user or installer. - Warning tone in case of unauthorised removal of the fingerprint top unit, i.e. tamper detection. Tampering circuit with switching actuator in the Gira door communication system. Inputs and outputs: - Connector strip connection cable for Gira door communication system. Children’s fingers can usually only be reliably recognised from 6 years of age.

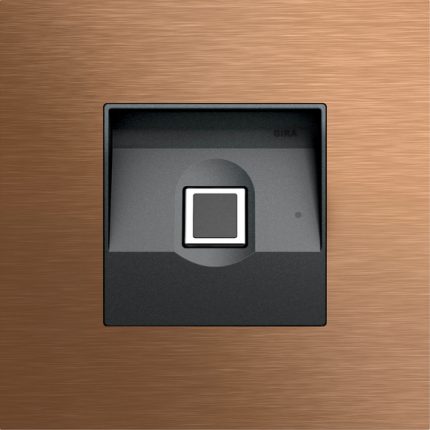

Модуль биометричного замка System 106, бронза
System 106 Keyless In fingerprint module bronze - Fingerprint module as a professional, biometric access control system based on next-generation surface scanning technology. - Start-up and administration via app. - Use as a stand-alone device with Gira DCS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. - Scanning the deepest layer of skin using high frequency. High detection rate and security against tampering. - An evaluation of the unique characteristic features of the living human finger. - Up to 99 fingers can be managed by the fingerprint reader. - Reliable recognition of fingers with slightly damaged skin from gardening, for example (damage only to the top layer of skin). - Data protection through the use of encryption. - Fast response time from application of finger to approval:approx. 1 s for up to 30 stored fingers,approx. 3 s for up to 99 stored fingers. - Night design of the fingerprint surface for orientation using white LED illumination. - 360° fingerprint readability. - 3-colour LED status display for visual signalling when programming and during operation. - Master PIN number provided on included sealed safety card if Administrator finger is no longer available. The device can be reset at the factory with the accompanying safety card. - Acknowledgement buzzer for acoustic signalling for user or installer. - Warning tone in case of unauthorised removal of the fingerprint top unit, i.e. tamper detection. Tampering circuit with switching actuator in the Gira door communication system. Inputs and outputs: - Connector strip connection cable for Gira door communication system. Children’s fingers can usually only be reliably recognised from 6 years of age.

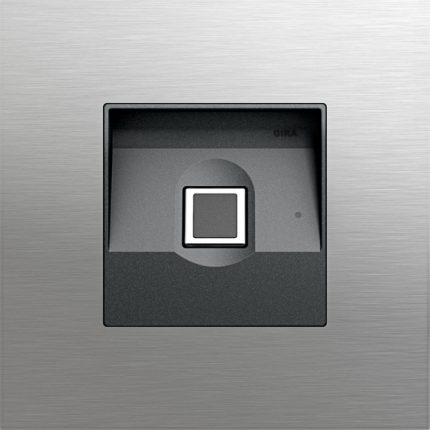

Модуль биометричного замка System 106, сталь
System 106 Keyless In fingerprint module stainless steel - Fingerprint module as a professional, biometric access control system based on next-generation surface scanning technology. - Start-up and administration via app. - Use as a stand-alone device with Gira DCS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. - Scanning the deepest layer of skin using high frequency. High detection rate and security against tampering. - An evaluation of the unique characteristic features of the living human finger. - Up to 99 fingers can be managed by the fingerprint reader. - Reliable recognition of fingers with slightly damaged skin from gardening, for example (damage only to the top layer of skin). - Data protection through the use of encryption. - Fast response time from application of finger to approval:approx. 1 s for up to 30 stored fingers,approx. 3 s for up to 99 stored fingers. - Night design of the fingerprint surface for orientation using white LED illumination. - 360° fingerprint readability. - 3-colour LED status display for visual signalling when programming and during operation. - Master PIN number provided on included sealed safety card if Administrator finger is no longer available. The device can be reset at the factory with the accompanying safety card. - Acknowledgement buzzer for acoustic signalling for user or installer. - Warning tone in case of unauthorised removal of the fingerprint top unit, i.e. tamper detection. Tampering circuit with switching actuator in the Gira door communication system. Inputs and outputs: - Connector strip connection cable for Gira door communication system. Children’s fingers can usually only be reliably recognised from 6 years of age.
Модуль биометричного замка System 106, сталь V4A
System 106 Keyless In fingerprint module stainless steel V4A - Fingerprint module as a professional, biometric access control system based on next-generation surface scanning technology. - Start-up and administration via app. - Use as a stand-alone device with Gira DCS switching actuators or in combination with the Gira door communication system as a door call system for buildings with several residential units. - Scanning the deepest layer of skin using high frequency. High detection rate and security against tampering. - An evaluation of the unique characteristic features of the living human finger. - Up to 99 fingers can be managed by the fingerprint reader. - Reliable recognition of fingers with slightly damaged skin from gardening, for example (damage only to the top layer of skin). - Data protection through the use of encryption. - Fast response time from application of finger to approval:approx. 1 s for up to 30 stored fingers,approx. 3 s for up to 99 stored fingers. - Night design of the fingerprint surface for orientation using white LED illumination. - 360° fingerprint readability. - 3-colour LED status display for visual signalling when programming and during operation. - Master PIN number provided on included sealed safety card if Administrator finger is no longer available. The device can be reset at the factory with the accompanying safety card. - Acknowledgement buzzer for acoustic signalling for user or installer. - Warning tone in case of unauthorised removal of the fingerprint top unit, i.e. tamper detection. Tampering circuit with switching actuator in the Gira door communication system. Inputs and outputs: - Connector strip connection cable for Gira door communication system. Children’s fingers can usually only be reliably recognised from 6 years of age.

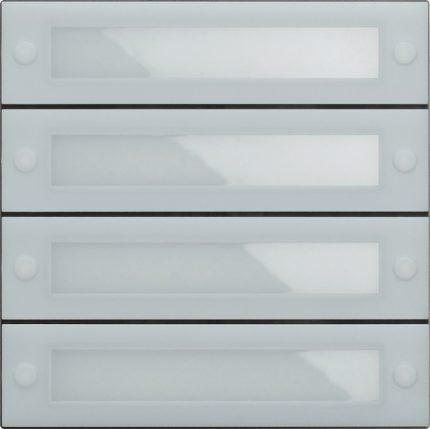

Модуль виклику з кнопками вводу в експлуат. System 106
System 106 call-button module, 4-gang with start-up buttons - Easy-to-use, vandal-proof, and scratch-resistant call buttons. - Function changes, e.g from 2-gang to 4-gang, can be easily implemented by replacing the buttons. - Various inscription options possible. Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}.

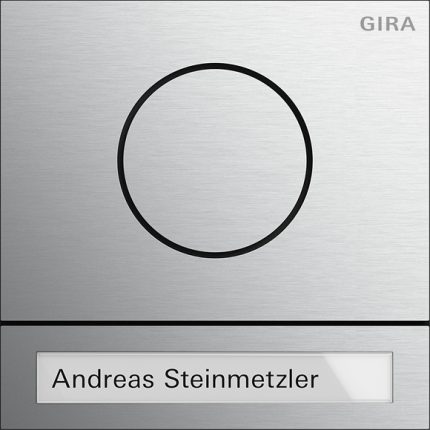

Модуль дверної станції System 106, алюміній
System 106 door station module aluminium - Compact intercom module with integrated call button for communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except intercom module) are supplied with power via the door station module. Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}.

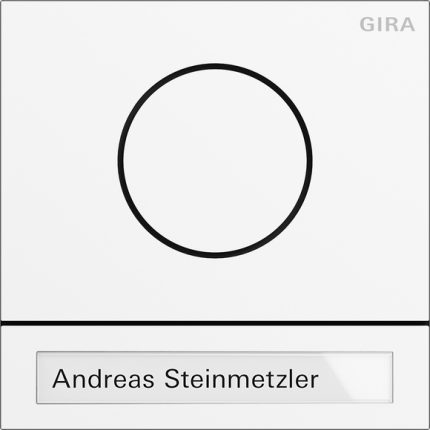

Модуль дверної станції System 106, білий
System 106 door station module traffic white (laquered) - Compact intercom module with integrated call button for communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except intercom module) are supplied with power via the door station module. Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}.

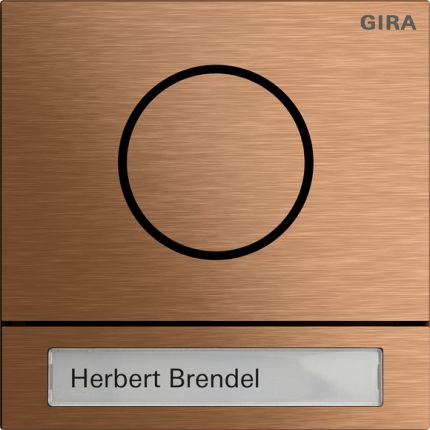

Модуль дверної станції System 106, бронза
System 106 door station module bronze - Compact intercom module with integrated call button for communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except intercom module) are supplied with power via the door station module. Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}.

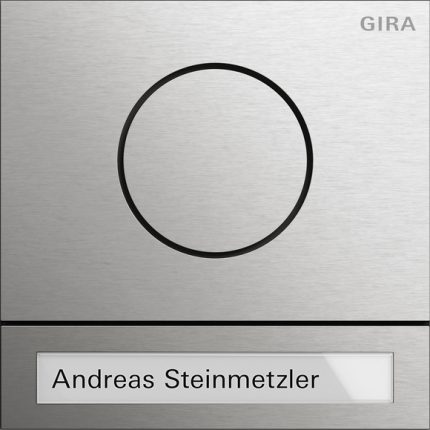

Модуль дверної станції System 106, сталь
System 106 door station module stainless steel - Compact intercom module with integrated call button for communication between indoors and outdoors. - A high-quality microphone and weather-resistant loudspeaker ensure clear communication. - Power supply via 2-wire bus. Additional connector for AS (e.g. required for three or more camera modules). - All other Systems 106 modules (except intercom module) are supplied with power via the door station module. Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}.
